LEM Hall Effect Current Sensors PCB Mount
-
LA 55-TP/SP1 C/L Hall Effect Current Sensor, 50 Amp, 25mA Output, PCB Mount, No Aperture, +/-12..15V Supply, X = 0.65%
LEM LA 55-TP/SP1 Series Closed Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 200kHz Open loop transducer using Hall effect Compact and versatile PCB Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LA55-TP/SP1 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-12..15 VDC Bipolar, Isolated Load Current (RMS + DC) 50 Amp Measurement Range +/-70 Amp Output 25 mA Isolation 2.5 kV Bandwidth DC-200 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 85°C Accuracy 0.65% Termination Style Through Hole PCB Unit Weight 18g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$58.70
$69.27 inclGST -
LA 55-TP C/L Hall Effect Current Sensor, 50 Amp, 50mA Output, PCB Mount, No Aperture, +/-12..15V Supply, X = 0.65%
LEM LA 55-TP Series Closed Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 200kHz Closed loop transducer using Hall effect Compact and versatile PCB Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LA55-TP/SP1 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-12..15 VDC Bipolar, Isolated Load Current (RMS + DC) 50 Amp Measurement Range +/-70 Amp Output 50 mA Isolation 2.5 kV Bandwidth DC-200 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 85°C Accuracy 0.65% Termination Style Through Hole PCB Unit Weight 18g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$58.70
$69.27 inclGST -
LA 55-P/SP50 C/L Hall Effect Current Sensor, 50 Amp, PCB Mount, 12.7 x 7mm Aperture, +/-12..15V Supply, X = 0.65%
LEM LA 55-P/SP50 C/L Hall Effect Current Sensor, 50Amp, PCB Mount with aperture, +/-12..15V Supply, X = 0.65% , Obsolete Contact Us for Possible Replacement for suggested replacement
$117.80
$139.00 inclGST -
LA 35-NP C/L Hall Effect Current Sensor, Multi Range 5 Amp, 35mA Output, PCB Mount, No Aperture, X = 0.5%
LEM LA 35-NP Series Multi Range Closed Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 150kHz Multi Range through pin selection Closed loop transducer using Hall effect Compact and versatile PCB Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LA35-NP Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Load Current (RMS + DC) 7,8,11,17,35 Amp Multirange through pin selection Measurement Range +/-70 Amp Output 35 mA Isolation 2.5 kV Bandwidth DC-150 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 0.5% Termination Style Through Hole PCB Unit Weight 22g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$66.90
$78.94 inclGST -
LA 150-P/SP1 C/L Hall Effect Current Sensor, 150 Amp, 75mA Output, No Aperture, +/-12..15V Supply, PCB Mount, X = 0.5%
LEM LA 150-P/SP1 Closed Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 150kHz Closed loop transducer using Hall effect Compact and versatile PCB Mounted with Strain Relief Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LA150-P/SP1 Technology Closed Loop Hall Effect Aperture 13 x 8mm ROHS Yes Supply Voltage +/-12..15 VDC Bipolar, Isolated Load Current (RMS + DC) 150 Amp Measurement Range +/-212 Amp Output 75mA Isolation 2.5 kV Bandwidth DC-150 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 80°C Accuracy 1% Termination Style Through Hole PCB Unit Weight 35g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$117.80
$139.00 inclGST -

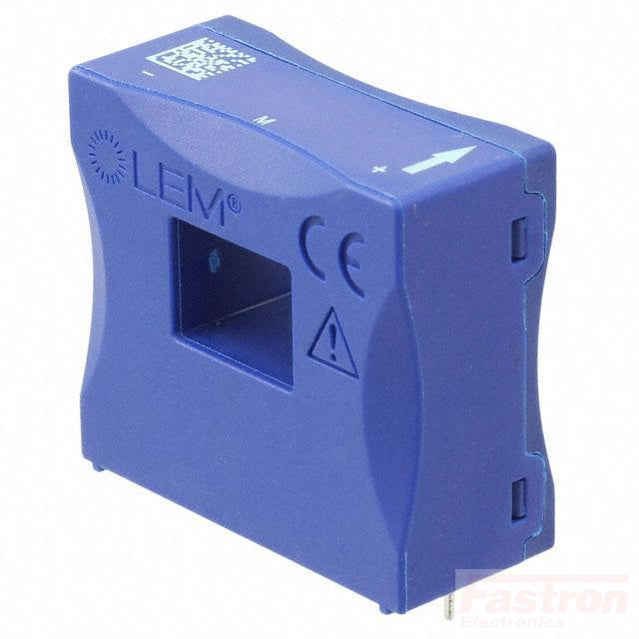

LA 130-P/SP1 C/L Hall Effect Current Sensor, 130 Amp, 65mA Output, 13.5 x 10mm Aperture, +/-12..15V Supply, PCB Mount, X = 0.5%
LEM LA 130-P/SP1 Closed Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 150kHz Closed loop transducer using Hall effect Compact and versatile PCB Mounted with Strain Relief Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LA130-P Technology Closed Loop Hall Effect Aperture 13.5 x 10mm ROHS Yes Supply Voltage +/-12..15 VDC Bipolar, Isolated Load Current (RMS + DC) 130 Amp Measurement Range +/-200 Amp Output 65 mA Isolation 4.3 kV Bandwidth DC-150 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 80°C Accuracy 0.5% Termination Style Through Hole PCB Unit Weight 35g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$117.80
$139.00 inclGST -
LA 130-P C/L Hall Effect Current Sensor, 130 Amp, 130mA Output, 13.5 x 10mm Aperture, +/-12..15V Supply, PCB Mount, X = 0.5%
LEM LA 130-P Series Closed Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 150kHz Closed loop transducer using Hall effect Compact and versatile PCB Mounted with Strain Relief Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LA130-P Technology Closed Loop Hall Effect Aperture 13.5 x 10mm ROHS Yes Supply Voltage +/-12..15 VDC Bipolar, Isolated Load Current (RMS + DC) 130 Amp Measurement Range +/-200 Amp Output 130 mA Isolation 4.3 kV Bandwidth DC-150 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 80°C Accuracy 0.5% Termination Style Through Hole PCB Unit Weight 35g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$117.80
$139.00 inclGST -
LA 125-P/SP1 C/L Hall Effect Current Sensor, 125 Amp, 62.5mA Output, 13 x 33.2mm Aperture, +/-12..15V Supply, PCB Mount, X = 0.6%
LEM LA 125-P/SP1 Series Closed Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 150kHz Closed loop transducer using Hall effect Compact and versatile PCB Mounted with Strain Relief Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LA125-P/SP1 Technology Closed Loop Hall Effect Aperture 13 x 11mm ROHS Yes Supply Voltage +/-12..15 VDC Bipolar, Isolated Load Current (RMS + DC) 130 Amp Measurement Range +/-200 Amp Output 62.5 mA Isolation 3 kV Bandwidth DC-150 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 80°C Accuracy 0.6% Termination Style Through Hole PCB Unit Weight 35g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$117.80
$139.00 inclGST -
LA 100-TP C/L Hall Effect Current Sensor, 100 Amp, 50mA Output, No Aperture, +/-12..15V Supply, PCB Mount, X = 0.45%
LEM LA 100-TP Series Closed Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 200kHz Closed loop transducer using Hall effect Compact and versatile PCB Mounted with Strain Relief Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LA100-TP Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-12..15 VDC Bipolar, Isolated Load Current (RMS + DC) 100 Amp Measurement Range +/-150 Amp Output 50 mA Isolation 2.5 kV Bandwidth DC-200 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 85°C Accuracy 0.45% Termination Style Through Hole PCB Unit Weight 18g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$117.80
$139.00 inclGST -

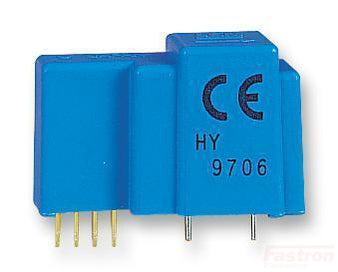

HY 5-P Hall Effect Current Sensor, 5 Amp, +/-4V output, no aperture, +/-12..15V Supply, PCB Mount, X = 1%
Hall Effect Current Sensor, 5 Amp, +/-4V output, no aperture, +/-12..15V Supply, PCB Mount, X = 1%
$31.20
$36.82 inclGST -
HXS 20-NP Hall Effect Current Sensor, 20 Amp, 2.5V ref output, no aperture, 5V Supply, PCB Mount, X = 1%
LEM HXN 20-NP Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single supply +5 V Galvanic separation between primary and secondary circuit For PCB mounting No Aperture Advantages Small size and space saving Same package for wide primary current range High immunity to external interference Fast response High insulation capability Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards EN 50178: 1997 IEC 61010-1: 2010 IEC 61326-1: 2012 UL 508: 2010 Application Domain Industrial. Specification LEM Part Number HXN 20-NP Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 20 Amp Measurement Range +/-60 Amp Output 2.5 Vref Isolation 3 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1.35% Termination Style PCB Through Hole Unit Weight 8g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$27.80
$32.80 inclGST -
HXN 50-P Hall Effect Current Sensor, 50 Amp, +/-4V output, no aperture, +/-15V Supply, PCB Mount, X = 1%
LEM HXN 50-P Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single supply +5 V Galvanic separation between primary and secondary circuit For PCB mounting No Aperture Advantages Small size and space saving Same package for wide primary current range High immunity to external interference Fast response High insulation capability Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards EN 50178: 1997 IEC 61010-1: 2010 IEC 61326-1: 2012 UL 508: 2010 Application Domain Industrial. Specification LEM Part Number HXN 50-P Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/-60 Amp Output 2.5 Vref Isolation 3 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1.35% Termination Style PCB Through Hole Unit Weight 8g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$27.80
$32.80 inclGST
