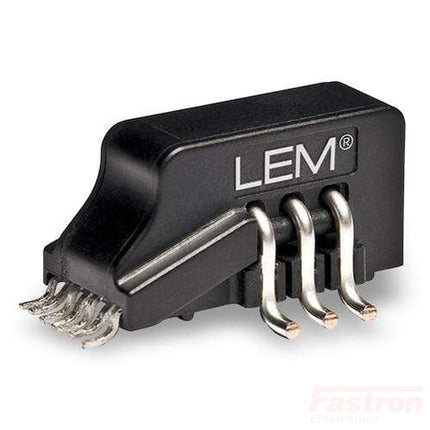

HO 15-NP-0000 KIT 5P, Hall Effect Current Sensor, 20 Amp, 0-5V Output, PCB Mount
Rated 3.5/5 based on 11 customer reviews

HO 15-NP-0000 KIT 5P, Hall Effect Current Sensor, 20 Amp, 0-5V Output, PCB Mount

  • Order within

Free Shipping for $300 Spend

Available: 1pcs in stock , more available in 6-8 Weeks
$51.00
$56.10inclGST

Free Shipping for $300 Spend

Wishlist Compare

LEM HO Series Open Loop AC/DC Hall Effect Sensor

Features

  • Open loop multi-range current transducer
  • Multiraneg through pcb routing
  • Voltage output
  • Single power supply +5 V
  • Overcurrent detect 2.93 × IP N (peak value)
  • Galvanic separation between primary and secondary circuit
  • Low power consumption
  • Factory calibrated
  • Compact design for PCB mounting
  • Factory calibrated
  • Repositionable mounting foot
  • Dedicated parameter settings available on request

Advantages

  • Low offset drift
  • Over-drivable Vref
  • Creepage / clearance > 8 mm
  • Fast response

Applications

  • AC variable speed and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications
  • Combiner box
  • Solar inverter on DC side of the inverter (MPPT).

Standards

  • IEC 61800-1: 1997
  • IEC 61800-2: 2015
  • IEC 61800-3: 2004
  • IEC 61800-5-1: 2007
  • IEC 62109-1: 2010
  • UL 508: 2013.

Application Domain

  • Industrial.

LEM HO Series Open Loop AC/DC Hall Effect Sensor

Features

  • Open loop multi-range current transducer
  • Multiraneg through pcb routing
  • Voltage output
  • Single power supply +5 V
  • Overcurrent detect 2.93 × IP N (peak value)
  • Galvanic separation between primary and secondary circuit
  • Low power consumption
  • Factory calibrated
  • Compact design for PCB mounting
  • Factory calibrated
  • Repositionable mounting foot
  • Dedicated parameter settings available on request

Advantages

  • Low offset drift
  • Over-drivable Vref
  • Creepage / clearance > 8 mm
  • Fast response

Applications

  • AC variable speed and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications
  • Combiner box
  • Solar inverter on DC side of the inverter (MPPT).

Standards

  • IEC 61800-1: 1997
  • IEC 61800-2: 2015
  • IEC 61800-3: 2004
  • IEC 61800-5-1: 2007
  • IEC 62109-1: 2010
  • UL 508: 2013.

Application Domain

  • Industrial.
LEM Part Number HO 15-NP-0000 KIt 5pcs
Technology Open Loop Hall Effect
Aperture N/A
ROHS Yes
Supply Voltage 5 VDC
Load Current (RMS + DC) 15 Amp
Measurement Range +/-37.5 Amp
Output 2.5 Vref
Isolation 4.3 kV
Bandwidth DC-250 kHz
Mounting Style PCB
Operating Temperature Range -40°C / 105°C
Accuracy 1%
Termination Style PCB Through Hole
Unit Weight 5g
Factory Pack Quantity 25
