LEM LES 6-NP, C/L Multi Range Hall Effect Current Sensor, 6 Amp, 2.5V ref in ref Out, PCB Mount, X = 2.25%, 4.3kV Isolation Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Vref IN Vref OUT Multirange through PCB routing Advantages LTS footprint compatible Zero insertion losses Very good linearity Very good dv/dt immunity High immunity to external interference Current overload capability Optimised response time Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar inverters Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 IEC 62477-1: 2012 UL 508:2013. Application Domain Industrial Specification LEM Part Number LES 6-NP Technology Closed Loop Multirange Hall Effect Aperture No Aperture ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 6 Amp Measurement Range +/-20 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 2.25% Termination Style PCB Unit Weight 10g Factory Packaging 25   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LTS 6-NP

Read more less

LEM LES 25-NP, C/L Multi Range Hall Effect Current Sensor, 25 Amp, 2.5V ref in ref Out, PCB Mount, X = 2.25%, 4.3kV Isolation Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Vref IN Vref OUT Multirange through PCB routing Advantages LTS footprint compatible Zero insertion losses Very good linearity Very good dv/dt immunity High immunity to external interference Current overload capability Optimised response time Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar inverters Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 IEC 62477-1: 2012 UL 508:2013. Application Domain Industrial Specification LEM Part Number LES 25-NP Technology Closed Loop Multirange Hall Effect Aperture No Aperture ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 15 Amp Measurement Range +/-51 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 2.25% Termination Style PCB Unit Weight 10g Factory Packaging 25   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LTS 15-NP

Read more less

LEM LES 15-NP, C/L Multi Range Hall Effect Current Sensor, 15 Amp, 2.5V ref in ref Out, PCB Mount, X = 2.25%, 4.3kV Isolation Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Vref IN Vref OUT Multirange through PCB routing Advantages LTS footprint compatible Zero insertion losses Very good linearity Very good dv/dt immunity High immunity to external interference Current overload capability Optimised response time Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar inverters Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 IEC 62477-1: 2012 UL 508:2013. Application Domain Industrial Specification LEM Part Number LES 15-NP Technology Closed Loop Multirange Hall Effect Aperture No Aperture ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 15 Amp Measurement Range +/-51 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 2.25% Termination Style PCB Unit Weight 10g Factory Packaging 25   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LTS 15-NP

Read more less

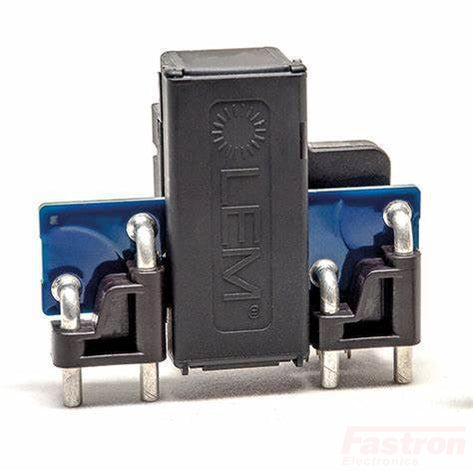

LDSR 0.3-TP/SP1, C/L 3 Phase Hall Effect Earth Leakage Current Sensor, 300mA Features Closed loop (compensated) current transducer Voltage output Single supply voltage PCB mounting. Advantages Very low offset drift temperature coefficient High overload capability High insulation capability Reference pin with two modes, Ref IN and Ref OUT Test winding Applications Leakage current measurement in transformerless PV inverters 3 phases plus neutral First human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection Current leakage detection in stacked DC sources Nominal current per phase measurement up to ±30 A per wire (DC or AC). Standards EN 61800-1: 1997 EN 61800-2: 2015 EN 61800-3: 2004 UL 62109-1: 2010 IEC 61010-1: 2010 UL 508. Application Domains Industrial Specification LEM Part Number LDSR 0.3-TP/SP1 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 300mA Measurement Range +/-900mA Output 2.5Vref Isolation 1.71kV Bandwidth DC-2kHz Response Time 25uS Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 2-5% Aperture N/A Unit Weight 28g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

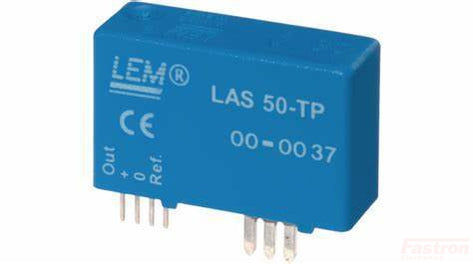

LEM LAS 50-TP Series Open Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 100kHz Closed loop transducer using Hall effect Compact and versatile PCB Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LAS 50-TP Technology Open Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/-150 Amp Output 2.5V +/-0.625*Ip/Ipn Isolation 5 kV Bandwidth DC-100 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 85°C Accuracy 1% Termination Style Through Hole PCB Unit Weight 20g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM LAS 100-TP/SP1 Open Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 100kHz Closed loop transducer using Hall effect Compact and versatile PCB Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LAS 100-TP/SP1 Technology Open Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 100 Amp Measurement Range +/-200 Amp Output Vc/2 +/-0.625*Ip/Ipn Isolation 5 kV Bandwidth DC-100 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 85°C Accuracy 1% Termination Style Through Hole PCB Unit Weight 20g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
