MS Power MSD240N16UB, Rectifier Diode 240 Amp, 1600V, 3/4" UNF 2A, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD240N16UB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 240 Amp Itsm 6 kA VF(to) 0.85V Tj(max) 180°C rF 0.6mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) 3/4" 16 UNF Tail Length to Stud 200mm R th(j-c) 0.19°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

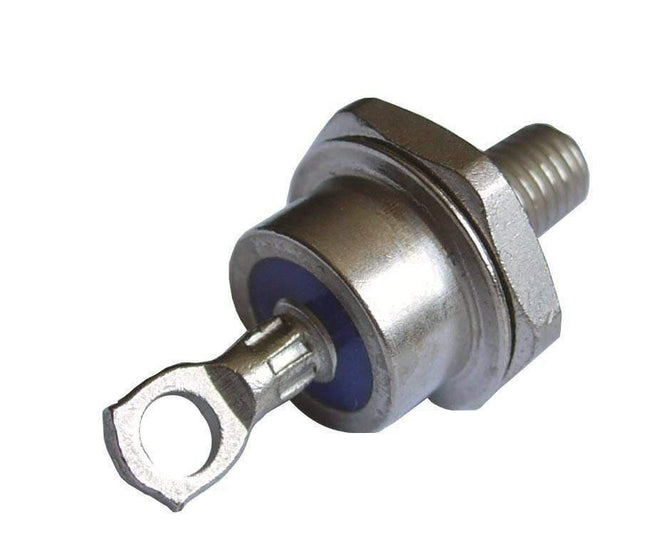

MS Power MSD85N16UB Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD85N16UB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 95 Amp IF(av) @ 125 Deg C 70 Amp Itsm 1.15 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) Solder Tab Termination Style (Stud) 1/4" 28 UNF 2A Tail Length to Stud 158mm R th(j-c) 0.55°C/W R th(c-h) 0.20°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD151R16U1B, Rectifier Diode 150 Amp, 1600V, 3/8"24UNF, Anode Stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD151R16U1B Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 165 Amp IF(av) @ 125 Deg C 130 Amp Itsm 2.5 kA VF(to) 0.85V Tj(max) 180°C rF 1.3mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) 3/8" -24UNF2A Tail Length to Stud 185mm R th(j-c) 0.28°C/W R th(c-h) 0.05°C/W Weight 110g Mounting Torque 10 - 13 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD151N16U1B, Rectifier Diode 150 Amp, 1600V, 3/8"24UNF, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD151N16U1B Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 165 Amp IF(av) @ 125 Deg C 130 Amp Itsm 2.5 kA VF(to) 0.85V Tj(max) 180°C rF 1.3mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) 3/8" -24UNF2A Tail Length to Stud 185mm R th(j-c) 0.28°C/W R th(c-h) 0.05°C/W Weight 110g Mounting Torque 10 - 13 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

Westcode-IXYS-Littlefuse DSAI17-16A, Avalanche Diode, 17 Amp, 1600V, 10/32"UNF, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Westcode-IXYS-Littlefuse Part Number DSAI17-16A Vrrm 1600V Avalanche Diode Configuration Cathode Stud IF(av) @ 85 Deg C 17 Amp Itsm 370 Amp VF(to) 0.85V Tj(max) 150°C rF 10mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) 10 - 32 UNF Tail Length to Stud N/A R th(j-c) 0.85°C/W R th(c-h) 0.25°C/W Weight 12g Mounting Torque 2 Nm Factory Pack Qty 50 Country Of Origin USA IXYS-Westcode Headquarters USA Datasheet Product Datasheet Obsolescence This part is, Obsolete . Contact Us for Possible Replacement for replacmement

Read more less

Westcode-IXYS-Littlefuse DSA17-16A, Avalanche Diode, 17 Amp, 1600V, 10/32"UNF, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Westcode-IXYS-Littlefuse Part Number DSA17-16A Vrrm 1600V Avalanche Diode Configuration Anode Stud IF(av) @ 85 Deg C 17 Amp Itsm 370 Amp VF(to) 0.85V Tj(max) 150°C rF 10mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) 10 - 32 UNF Tail Length to Stud N/A R th(j-c) 0.85°C/W R th(c-h) 0.25°C/W Weight 12g Mounting Torque 2 Nm Factory Pack Qty 50 Country Of Origin USA IXYS-Westcode Headquarters USA Datasheet Product Datasheet Obsolescence This part is, Obsolete . Contact Us for Possible Replacement for replacmement

Read more less

Westcode(IXYS) N105PH15 Series Stud Mount Thyristor(SCR) Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification Westcode (IXYS) Part Number N105PH15 Vrrm 1500V SCR Configuration Anode Stud IF(av) @ 100 Deg C 196 Amp IF(av) @ 125 Deg C 125 Amp Itsm 1.9 kA VF(to) 1.20V I(gt) 150mA Tj(max) 125°C rF 1.90mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) 3/4" UNF 16UNF 2A Tail Length to Stud 175mm R th(j-c) 0.24°C/W R th(c-h) 0.08°C/W Weight 200g Mounting Torque 14 Nm Factory Pack Qty 10 Country Of Origin China IXYS Headquarters USA Datasheet Product Datasheet Obsolescence This part is, Obsolete due to part number change see MST125S16U for replacement

Read more less

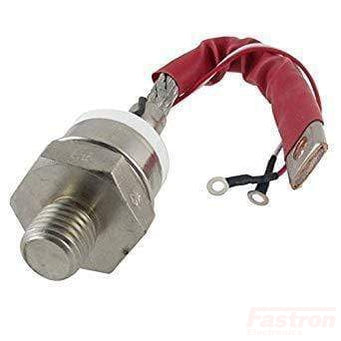

Thyristor(SCR), 250Amp, 1600V, 3/4" 20UNF, Anode stud Product Datasheet

Read more less

B525571-2, Rotating Diode, 3/8" 24 UNF 2A, Anode Stud User for Rotating Generator or Motor Applicatons 150 Amp Rating

Read more less

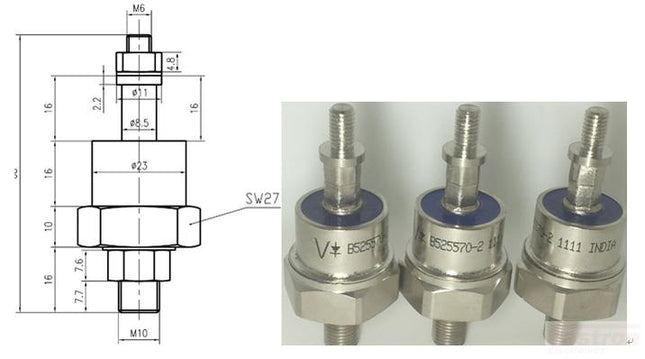

B525570-2, Rotating Diode for Generators, 3/8" 24 UNF 2A, Cathode Stud User for Rotating Generator or Motor Applicatons 150 Amp Rating

Read more less

Westcode-IXYS-Littlefuse W0735RA150, Rectifier Diode, 551 Amp, 1500V 3/4" UNF 2A, Anode stud, Super seeds W0628RA150 (SW5PHR300, W0508RA150(,W0428RA(WX171), W0503RA160 (SW16PHR380), PRESSURE CONTACT TECHNOLOGY Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Westcode-IXYS-Littlefuse Part Number W0735RA150 Vrrm 1500V Diode Configuration Anode Stud IF(av) @ 100 Deg C 551 Amp IF(av) @ 55 Deg C 735 Amp Itsm 9 kA VF(to) 0.79V Tj(max) 190°C rF 0.342mΩ Termination Style (Tail) 10.5mm Round Lug Termination Style (Stud) 3/4" x 1.5P Tail Length to Stud 250mm R th(j-c) 0.13°C/W R th(c-h) N/A Weight 250g Mounting Torque 32 Nm Factory Pack Qty 5 Country Of Origin UK Westcode - IXYS Headquarters UK - USA Datasheet Product Datasheet Superseeds Super seeds W0628RA150 (SW5PHR300, W0508RA150(,W0428RA(WX171), W0503SRA160 (SW16PHR380)
