MS Power MSD403R18UB, Rectifier Diode 400 Amp, 1800V, 3/4"UNF 16 2A, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD403R18UB Vrrm 1800V Diode Configuration Anode Stud IF(av) @ 100 Deg C 480 Amp IF(av) @ 120 Deg C 400 Amp Itsm 9.2 kA VF(to) 0.85V Tj(max) 180°C rF 0.51mΩ Termination Style (Tail) 10.6mm Round Lug Termination Style (Stud) 3/4' UNF 16 2A Tail Length to Stud 200mm R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD403N18UB, Rectifier Diode 400 Amp, 1800V, 3/4"UNF 16 2A, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD403N18UB Vrrm 1800V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 480 Amp IF(av) @ 120 Deg C 400 Amp Itsm 9.2 kA VF(to) 0.85V Tj(max) 180°C rF 0.51mΩ Termination Style (Tail) 10.6mm Round Lug Termination Style (Stud) 3/4' UNF 16 2A Tail Length to Stud 200mm R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD26N16MB, Rectifier Diode 26 Amp, 1600V, M6, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD26N16MB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 39 Amp IF(av) @ 125 Deg C 25 Amp Itsm 375 Amp VF(to) 0.85V Tj(max) 180°C rF 10mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) M6 x 1 Tail Length to Stud N/A R th(j-c) 1.5°C/W R th(c-h) 0.25°C/W Weight 5.5g Mounting Torque 2 Nm Factory Pack Qty 50 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MST351S16MB, Thyristor (SCR) 1600VAC, 350Amp, M24 x 1.5 Solder Bonded type, Anode to stud, Replaces Semikron SKT320/16 Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST351S16MB Special Feature Solder Bonded Technology Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 420 Amp IF(av) @ 125 Deg C 350 Amp Itsm 9 kA VF(to) 0.85V I(gt) 200mA Tj(max) 125°C rF 0.50mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) M24 x 1.5 Tail Length to Stud 255mm R th(j-c) 0.088°C/W R th(c-h) 0.04°C/W Weight 520g Mounting Torque 2.5 - 2.7 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MST351S16UB, Thyristor (SCR) 1600VAC, 350Amp, 3/4" UNF 16UNF 2A Solder Bonded type, Anode to stud, Replaces Semikron SKT320/16 UNF Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST351S16UB Special Feature Solder Bonded Technology Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 420 Amp IF(av) @ 125 Deg C 350 Amp Itsm 9 kA VF(to) 0.85V I(gt) 200mA Tj(max) 125°C rF 0.50mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) 3/4" UNF 16UNF 2A Tail Length to Stud 255mm R th(j-c) 0.088°C/W R th(c-h) 0.04°C/W Weight 520g Mounting Torque 2.5 - 2.7 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD401R16FB, Rectifier Diode 400 Amp, 1600V, ⌀41 x 6.5 x ⌀33mm Flat Base, Anode Base, Replaces S6HR400 Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD401R16FB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C IF(av) @ 125 Deg C 400 Amp Itsm 7.4 kA VF(to) 0.75V Tj(max) 180°C rF 0.35mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) Flat Base ⌀41 x 6.5 x ⌀33mm Tail Length to Base 245mm R th(j-c) 0.125°C/W R th(c-h) 0.05°C/W Weight 250g Mounting Torque 20 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

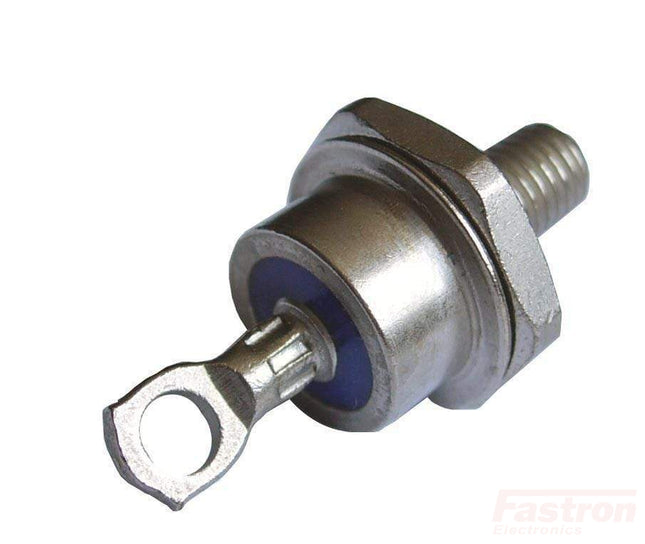

MS Power MSD Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD16R16UB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C N/A IF(av) @ 125 Deg C 16 Amp Itsm 350 Amp VF(to) 0.85V Tj(max) 180°C rF 11mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) 10 - 32 UNF Tail Length to Stud N/A R th(j-c) 2.7°C/W R th(c-h) 1.0°C/W Weight 5.5g Mounting Torque 2 Nm Factory Pack Qty 50 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD16N16UB, Rectifier Diode 16 Amp, 1600V, 10/32" UNF, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD16N16UB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C N/A IF(av) @ 125 Deg C 16 Amp Itsm 350 Amp VF(to) 0.85V Tj(max) 180°C rF 11mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) 10 - 32 UNF Tail Length to Stud N/A R th(j-c) 2.7°C/W R th(c-h) 1.0°C/W Weight 5.5g Mounting Torque 2 Nm Factory Pack Qty 50 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

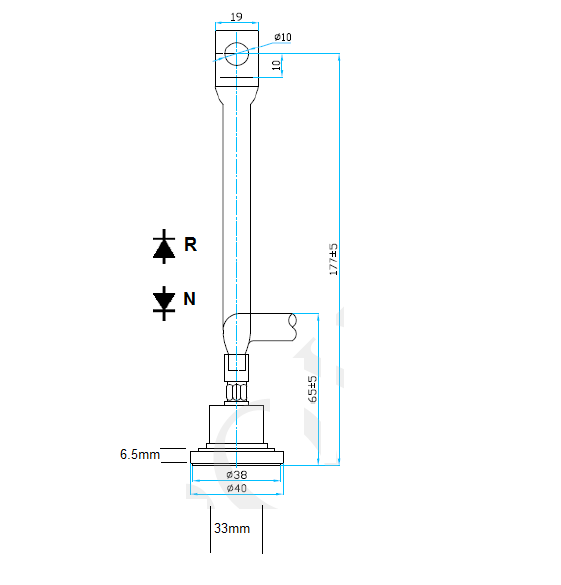

MS Power MSD300R16MB, Rectifier Diode 300 Amp, 1600V, ⌀41 x 6.5 x ⌀33mm Flat Base, Anode Base, Replaces S6HR300 Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD300R16MB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 390 Amp IF(av) @ 125 Deg C 300 Amp Itsm 5.6 kA VF(to) 0.75V Tj(max) 180°C rF 0.40mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) Flat Base ⌀41 x 6.5 x ⌀33mm Tail Length to Base 177mm R th(j-c) 0.16°C/W R th(c-h) 0.005°C/W Weight 250g Mounting Torque 18 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

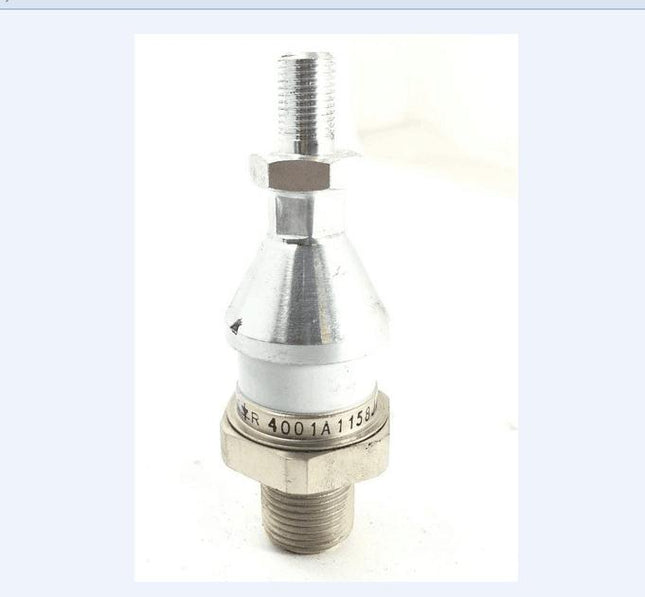

Rotating Diode for Generators, 309UA250 (D309N25UB) Rotating Diode, 3/8" Top Stud, 3/4" Bottom Stud, Cathode Stud User for Rotating Generator or Motor Applicatons 310 Amp Rating Datasheet Product Datasheet

Read more less

Rotating Diode for Generators, 309URA250 (D309R25UB) Rotating Diode, 3/8" Top Stud, 3/4" Bottom Stud, Anode Stud User for Rotating Generator or Motor Applicatons 310 Amp Rating Datasheet Product Datasheet

Read more less

MS Power MSD240R16UB, Rectifier Diode 240 Amp, 1600V, 3/4" 16 UNF 2A, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD240R16UB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 240 Amp Itsm 6 kA VF(to) 0.85V Tj(max) 180°C rF 0.6mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) 3/4" 16 UNF 2A Tail Length to Stud 200mm R th(j-c) 0.19°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet
