Rectifier Diode 26 Amp, 600V, 10/32" UNF, Anode stud Product Datasheet

Read more less

Rectifier Diode 26 Amp, 600V, 10/32" UNF, Cathode stud Product Datasheet

Read more less

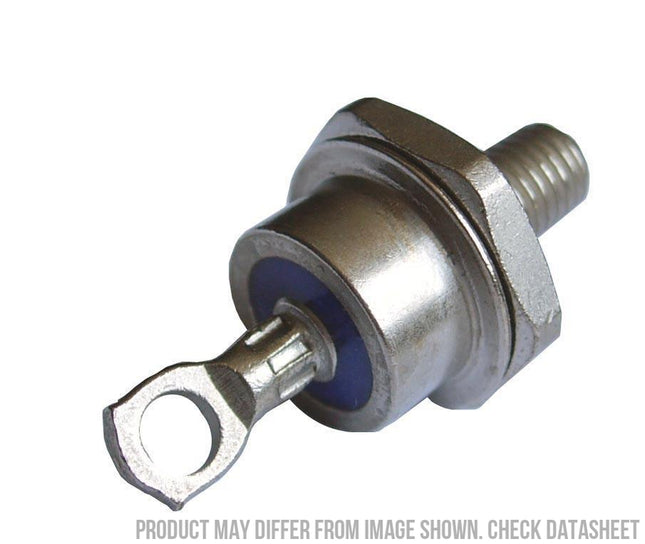

MS Power MSZPA36N10U Series Stud Mount Avalanche Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSZPA36N10U Vrrm 1600V Avalanche Diode Configuration Cathode Stud IF(av) @ 100 Deg C 57 Amp IF(av) @ 125 Deg C 36 Amp Itsm 680 Amp VF(to) 0.85V Tj(max) 150°C rF 10mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) 10 - 32 UNF Tail Length to Stud N/A R th(j-c) 0.085°C/W R th(c-h) 0.25°C/W Weight 12g Mounting Torque 2 Nm Factory Pack Qty 50 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet Obsolescence Thus part is, Obsolete due to part number change see MSDA26N16UB for replacement

Read more less

MS Power MSD Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD132R16UB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 165 Amp IF(av) @ 125 Deg C 130 Amp Itsm 2.5 kA VF(to) 0.85V Tj(max) 180°C rF 1.3mΩ Termination Style (Tail) 8.4mm Round Lug Termination Style (Stud) 1/2" 20UNF 2A Tail Length to Stud 148mm R th(j-c) 0.28°C/W R th(c-h) 0.05°C/W Weight 110g Mounting Torque 10 - 13 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD132N16UB, Rectifier Diode 130 Amp, 1600V, 1/2" 20UNF 2A, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD132N16UB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 165 Amp IF(av) @ 125 Deg C 130 Amp Itsm 2.5 kA VF(to) 0.85V Tj(max) 180°C rF 1.3mΩ Termination Style (Tail) 8.4mm Round Lug Termination Style (Stud) 1/2" 20UNF 2A Tail Length to Stud 148mm R th(j-c) 0.28°C/W R th(c-h) 0.05°C/W Weight 110g Mounting Torque 10 - 13 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

Proton Electrotex D171-400X-10-N Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Proton Part Number D171-400X-10-N Vrrm 1000V Diode Configuration Anode Stud IF(av) @ 100 Deg C 635 Amp IF(av) @ 143 Deg C 400 Amp Itsm 14 kA VF(to) 0.90V Tj(max) 190°C rF 0.56mΩ Termination Style (Tail) 12.5mm Round Lug Termination Style (Stud) 3/4" x 1.5P Tail Length to Stud 250mm R th(j-c) 0.08°C/W R th(c-h) N/A Weight 440g Mounting Torque 32 Nm Factory Pack Qty 5 Country Of Origin Russia Proton Electrotex Headquarters Russia Datasheet Product Datasheet

Read more less

Proton Electrotex D161-400X-10-N2 Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Proton Part Number D161-400X-10-N2 Vrrm 1000V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 565 Amp IF(av) @ 134 Deg C 400 Amp Itsm 8.3kA VF(to) 0.90V Tj(max) 190°C rF 0.50mΩ Termination Style (Tail) 12.5mm Round Lug Termination Style (Stud) 3/4" x 1.5P Stud Length 20mm Tail Length to Stud 250mm R th(j-c) 0.1°C/W R th(c-h) N/A Weight 250g Mounting Torque 32 Nm Factory Pack Qty 5 Country Of Origin Russia Proton Electrotex Headquarters Russia Datasheet Note: Custom 20mm thread length! Product Datasheet

Read more less

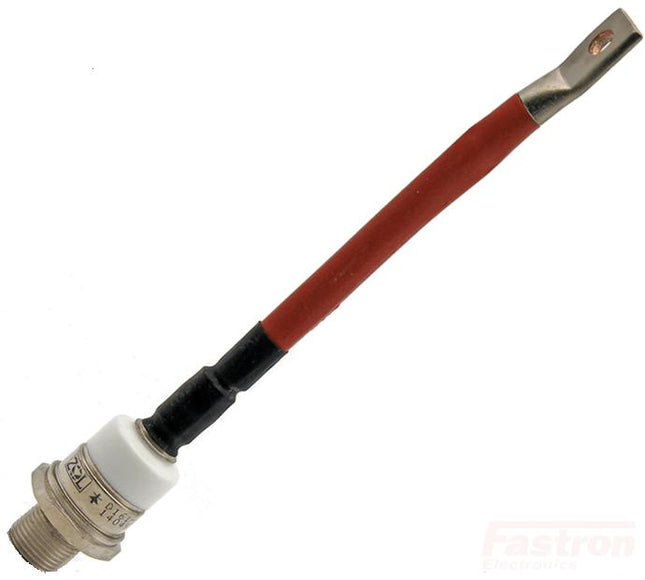

Proton Electrotex D161-400-10-N2 Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Proton Part Number D161-400-10-N2 Vrrm 1000V Diode Configuration Anode Stud IF(av) @ 100 Deg C 565 Amp IF(av) @ 134 Deg C 400 Amp Itsm 8.3kA VF(to) 0.90V Tj(max) 190°C rF 0.50mΩ Termination Style (Tail) 12.5mm Round Lug Termination Style (Stud) 3/4" x 1.5P Stud Length 20mm Tail Length to Stud 250mm R th(j-c) 0.1°C/W R th(c-h) N/A Weight 250g Mounting Torque 32 Nm Factory Pack Qty 5 Country Of Origin Russia Proton Electrotex Headquarters Russia Datasheet Note: Custom 20mm thread length! Product Datasheet

Read more less

Proton Electrotex D161-400-10-N Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Proton Part Number D161-400-10-N Vrrm 1000V Diode Configuration Anode Stud IF(av) @ 100 Deg C 565 Amp IF(av) @ 134 Deg C 400 Amp Itsm 8.3kA VF(to) 0.90V Tj(max) 190°C rF 0.50mΩ Termination Style (Tail) 12.5mm Round Lug Termination Style (Stud) 3/4" x 1.5P - Stud Length 27mm Tail Length to Stud 250mm R th(j-c) 0.1°C/W R th(c-h) N/A Weight 250g Mounting Torque 32 Nm Factory Pack Qty 5 Country Of Origin Russia Proton Electrotex Headquarters Russia Datasheet Product Datasheet

Read more less

A2B-500-06 Rectifier Diode 500Amp, 600V, 3/4" 16UNF 2A, Cathode stud Product Datasheet

Read more less

A2B-260-12X, Stud Rectifier Diode 260Amp, 1200V, 3/4" UNF 2A, Anode stud, Replaces A2B-260-06X and, A2B-260-08X  Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification AEGIS Part Number A2B-260-12X Vrrm 1200V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 260 Amp Itsm 5.046 kA VF(to) 0.82V Tj(max) 180°C rF 0.45mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) 3/4" 16 UNF 2A Tail Length to Stud 170mm R th(j-c) 0.120°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China AEGIS Headquarters Brazil   Datasheet Product Datasheet

Read more less
