MS Power MSD151R18UB, Rectifier Diode 150 Amp, 1800V, 1/2"20UNF, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD151R18UB Vrrm 1800V Diode Configuration Anode Stud IF(av) @ 100 Deg C 165 Amp IF(av) @ 125 Deg C 130 Amp Itsm 2.5 kA VF(to) 0.85V Tj(max) 180°C rF 1.3mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) 1/2" 20UNF 2A Tail Length to Stud 185mm R th(j-c) 0.28°C/W R th(c-h) 0.05°C/W Weight 110g Mounting Torque 10 - 13 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD71R16MB, Rectifier Diode 70 Amp, 1600V, M8 x 1.25, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD71R16MB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 95 Amp IF(av) @ 125 Deg C 70 Amp Itsm 1.15 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) Solder Tab Termination Style (Stud) M8 x 1.25 Tail Length to Stud 158mm R th(j-c) 0.55°C/W R th(c-h) 0.20°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

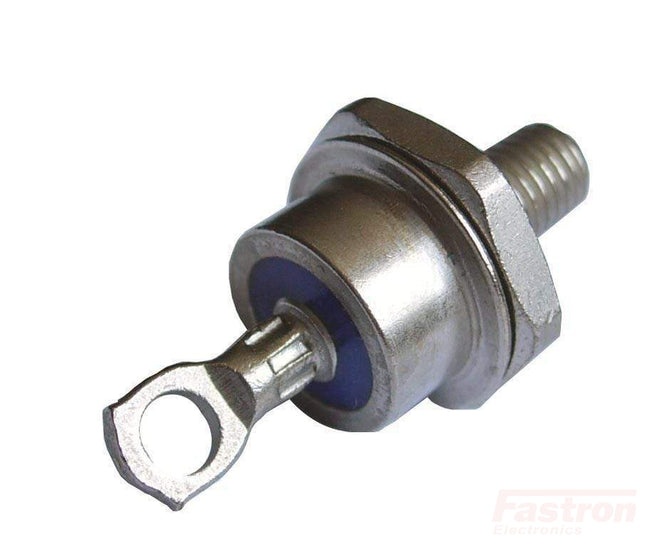

MS Power MSD71N16MB, Rectifier Diode 70 Amp, 1600V, M8 x 1.25, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD71N16MB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 95 Amp IF(av) @ 125 Deg C 70 Amp Itsm 1.15 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) Solder Tab Termination Style (Stud) M8 x 1.25 Tail Length to Stud 158mm R th(j-c) 0.55°C/W R th(c-h) 0.20°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD321R16MB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 420 Amp IF(av) @ 125 Deg C 320 Amp Itsm 9 kA VF(to) 0.80V Tj(max) 180°C rF 0.45mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) M24 x 1.5P Tail Length to Stud 230mm R th(j-c) 0.15°C/W R th(c-h) 0.015°C/W Weight 350g Mounting Torque 32 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

MS Power MSD321N16MB Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD321N16MB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 420 Amp IF(av) @ 125 Deg C 320 Amp Itsm 9 kA VF(to) 0.80V Tj(max) 180°C rF 0.45mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) M24 x 1.5P Tail Length to Stud 230mm R th(j-c) 0.15°C/W R th(c-h) 0.015°C/W Weight 350g Mounting Torque 32 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD26N16UB, Rectifier Diode 26 Amp, 1600V, 10-32UNF, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD26N16UB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 39 Amp IF(av) @ 125 Deg C 25 Amp Itsm 375 Amp VF(to) 0.85V Tj(max) 180°C rF 10mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) 10 - 32 UNF Tail Length to Stud N/A R th(j-c) 1.5°C/W R th(c-h) 0.25°C/W Weight 5.5g Mounting Torque 2 Nm Factory Pack Qty 50 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD151N16UB, Rectifier Diode 150 Amp, 1600V, 1/2"20UNF 2A, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD151N16UB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 165 Amp IF(av) @ 125 Deg C 130 Amp Itsm 2.5 kA VF(to) 0.85V Tj(max) 180°C rF 1.3mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) 1/2" 20UNF 2A Tail Length to Stud 185mm R th(j-c) 0.28°C/W R th(c-h) 0.05°C/W Weight 110g Mounting Torque 10 - 13 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

A2B-260-12XY Rectifier Diode 260Amp, 1200V, 3/4" UNF 2A, Cathode stud Ref S12HRS260U 135mm tail (170mm standard) Product Datasheet

Read more less

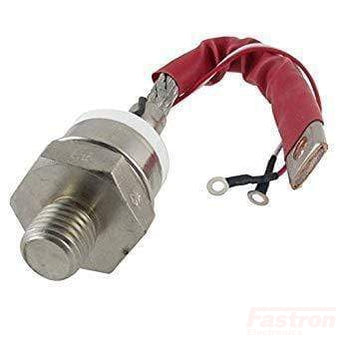

MS Power MST351S16UK, Thyristor (SCR) 1600VAC, 350Amp, 3/4" UNF 16UNF 2A Pressure contact type, Anode to stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST351S16UK Special Feature Pressure Contact Technology Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 420 Amp IF(av) @ 125 Deg C 350 Amp Itsm 9 kA VF(to) 0.85V I(gt) 200mA Tj(max) 125°C rF 0.50mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) 3/4" UNF 16UNF 2A Tail Length to Stud 255mm R th(j-c) 0.088°C/W R th(c-h) 0.04°C/W Weight 520g Mounting Torque 2.5 - 2.7 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

Thyristor(SCR), 330Amp, 1600V, 3/4" 20 UNF, Anode stud

Read more less

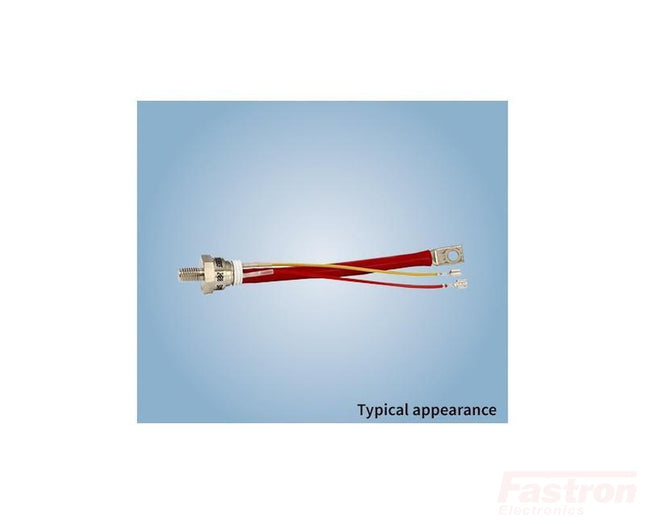

Thyristor(SCR) 160 Amp, 1200V, M12, Anode Stud Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement , Obsolete

Read more less

MS Power MSKP85S16U, Thyristor(SCR), 85Amp, 1600V, 1/2" 20 UNF, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MSKP85S16U Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 196 Amp IF(av) @ 125 Deg C 85 Amp Itsm 1.35 kA VF(to) 1.20V I(gt) 150mA Tj(max) 125°C rF 2.60mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) 1/2" 20 UNF Tail Length to Stud 175mm R th(j-c) 0.27°C/W R th(c-h) 0.08°C/W Weight 200g Mounting Torque 14 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet Obsolescence This part is, Obsolete due to part number change see MST85S16U for replacement
