MS Power MSD403N18M, Rectifier Diode 400 Amp, 1800V, M20 x 1.5, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD403N18M Vrrm 1800V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 480 Amp IF(av) @ 120 Deg C 400 Amp Itsm 9.2 kA VF(to) 0.85V Tj(max) 180°C rF 0.51mΩ Termination Style (Tail) 10.6mm Round Lug Termination Style (Stud) M20 x 1.5 Tail Length to Stud 200mm R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

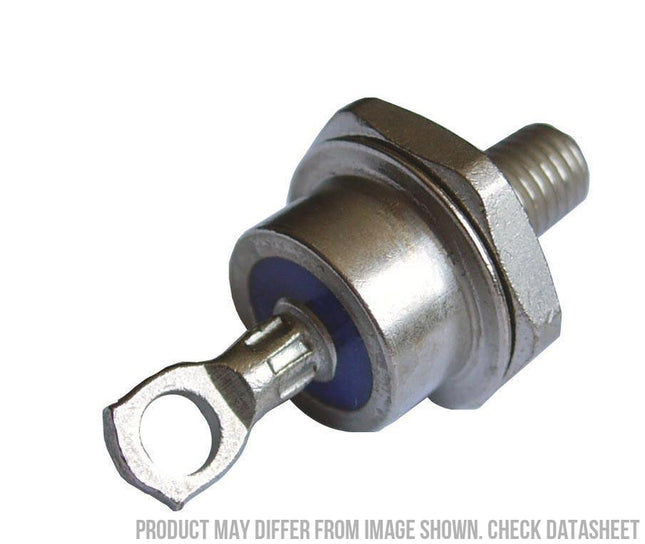

MS Power MSZPA36R10M, Avalanche Diode, 36 Amp, 1000V, M6x1, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSZPA36R10M Vrrm 1600V Avalanche Diode Configuration Anode Stud IF(av) @ 100 Deg C 57 Amp IF(av) @ 125 Deg C 36 Amp Itsm 680 Amp VF(to) 0.85V Tj(max) 150°C rF 10mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) M6 x 1 Tail Length to Stud N/A R th(j-c) 0.085°C/W R th(c-h) 0.25°C/W Weight 12g Mounting Torque 2 Nm Factory Pack Qty 50 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

MS Power MSZPA36N10M, Avalanche Diode, 36 Amp, 1000V, M6x1, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSZPA36N10M Vrrm 1600V Avalanche Diode Configuration Cathode Stud IF(av) @ 100 Deg C 57 Amp IF(av) @ 125 Deg C 36 Amp Itsm 680 Amp VF(to) 0.85V Tj(max) 150°C rF 10mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) M6 x 1 Tail Length to Stud N/A R th(j-c) 0.085°C/W R th(c-h) 0.25°C/W Weight 12g Mounting Torque 2 Nm Factory Pack Qty 50 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

Semikron SKR 600/16, Rectifier Diode, 600 Amp, 1600V M24 x 1.5P, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Semikron-Danfoss Part Number SKR 600/16 Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 105 Deg C 600 Amp IF(av) @ 125 Deg C 475 Amp Itsm 14 kA VF(to) 0.8V Tj(max) 180°C rF 0.3mΩ Termination Style (Tail) 10.5mm Round Lug Termination Style (Stud) M24 x 1.5P Tail Length to Stud 230mm R th(j-c) 0.1°C/W R th(c-h) 0.015°C/W Weight 500g Mounting Torque 30 (24) Nm Factory Pack Qty 5 Country Of Origin Germany Semikron-Danfoss Headquarters Germany   Datasheet Product Datasheet

Read more less

Semikron SKN 600/16, Rectifier Diode, 600 Amp, 1600V M24 x 1.5P, Anode stud stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Semikron-Danfoss Part Number SKN 600/16 Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 105 Deg C 600 Amp IF(av) @ 125 Deg C 475 Amp Itsm 14 kA VF(to) 0.8V Tj(max) 180°C rF 0.3mΩ Termination Style (Tail) 10.5mm Round Lug Termination Style (Stud) M24 x 1.5P Tail Length to Stud 230mm R th(j-c) 0.1°C/W R th(c-h) 0.015°C/W Weight 500g Mounting Torque 30 (24) Nm Factory Pack Qty 5 Country Of Origin Germany Semikron-Danfoss Headquarters Germany   Datasheet Product Datasheet

Read more less

Westcode-IXYS-Littlefuse DSA110-18F, Avalanche Diode, 110 Amp, 1600V, 10/32"UNF, Anode stud, With Tail Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Westcode-IXYS-Littlefuse Part Number DSA110-18F Vrrm 1800V Avalanche Diode Configuration Anode Stud IF(av) @ 85 Deg C 110 Amp Itsm 3.15kA VF(to) 0.85 Tj(max) 180 Deg C rF 1.1m Ohm Termination Style (No Tail) 2.2mm Solder Tab 148mm Termination Style (Stud) M12 Tail Length to Stud N/A R th(j-c) 0.39°C/W R th(c-h) Weight 130g Mounting Torque 16-20 Nm Factory Pack Qty 50 Country Of Origin USA IXYS-Westcode Headquarters USA   Datasheet Product Datasheet Obsolescence This part is, Obsolete . Contact Us for Possible Replacement for replacmement

Read more less

Rotating Diode for Generators, MSD306R24UB, 3/8" Top Stud, 3/4" Bottom Stud, Cathode Stud User for Rotating Generator or Motor Applications 310 Amp Rating Datasheet Product Datasheet

Read more less

Rotating Diode for Generators, MSD306N24UB, 3/8" Top Stud, 3/4" Bottom Stud, Anode Stud User for Rotating Generator or Motor Applications 310 Amp Rating Datasheet Product Datasheet

Read more less

MS Power MST285S16UK, Thyristor (SCR) 1600VAC, 285Amp, 3/4" UNF 16UNF 2A  Pressure contact type, Anode to stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST285S16UK Special Feature Pressure Contact Technology Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 85 Deg C 285 Amp Itsm 8.5 kA VF(to) 0.88V I(gt) 200mA Tj(max) 125°C rF 0.47mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) 3/4" UNF 16UNF 2A Tail Length to Stud 255mm R th(j-c) 0.088°C/W R th(c-h) 0.04°C/W Weight 320g Mounting Torque 2.5 - 2.7 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

Rotating Diode for Generators, MSD301N24UB Rotating Diode, 3/8" Top Stud, 3/4" Bottom Stud, Anode Stud User for Rotating Generator or Motor Applications 310 Amp Rating Datasheet Product Datasheet

Read more less

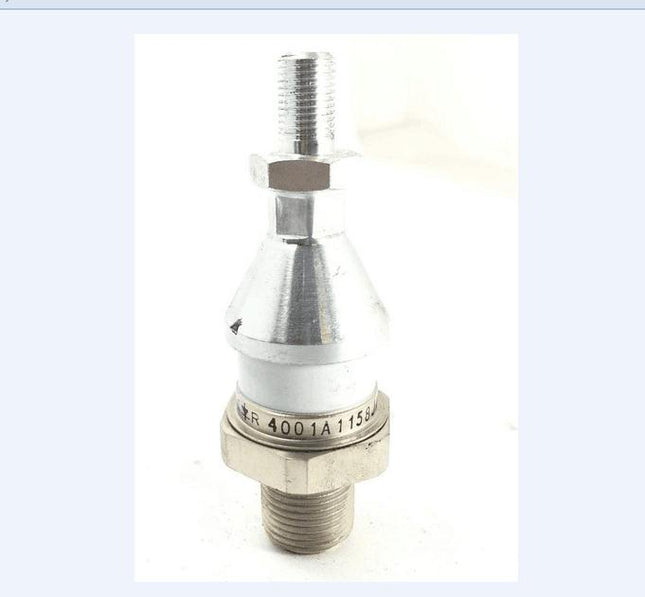

Rotating Diode for Generators, MSD301R24UB Rotating Diode, 3/8" Top Stud, 3/4" Bottom Stud, Cathode Stud User for Rotating Generator or Motor Applications 310 Amp Rating Datasheet Product Datasheet

Read more less

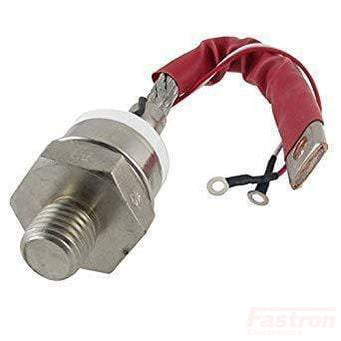

MS Power MST351S16MK, Thyristor (SCR) 1600VAC, 350Amp, M24 x 1.5, Pressure contact type, Anode to stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST351S16MK Special Feature Pressure Contact Technology Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 420 Amp IF(av) @ 125 Deg C 350 Amp Itsm 9 kA VF(to) 0.85V I(gt) 200mA Tj(max) 125°C rF 0.50mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) M24 x 1.5 Tail Length to Stud 255mm R th(j-c) 0.088°C/W R th(c-h) 0.04°C/W Weight 520g Mounting Torque 2.5 - 2.7 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less
