Rectifier Diode 150 Amp, 800V, 1/2" 20UNF 2A, Anode stud Product Datasheet

Read more less

A2B-260-08X, Stud Rectifier Diode 260Amp, 800V, 3/4" UNF 2A, Anode stud, Replaces A2B-260-06X Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification AEGIS Part Number A2B-260-08X Vrrm 800V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 260 Amp Itsm 5.046 kA VF(to) 0.82V Tj(max) 180°C rF 0.45mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) 3/4" 16 UNF 2A Tail Length to Stud 170mm R th(j-c) 0.120°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China AEGIS Headquarters Brazil   Datasheet Product Datasheet

Read more less

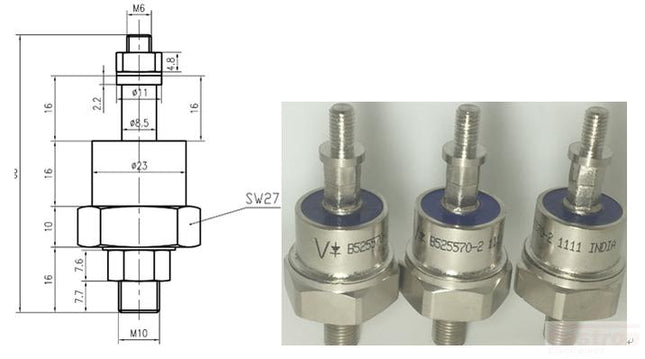

B-525528-G, Rotating Diode Assembly, includes B-525570-2, B-525571-2, B-526482-2 User for Rotating Generator or Motor Applicatons

Read more less

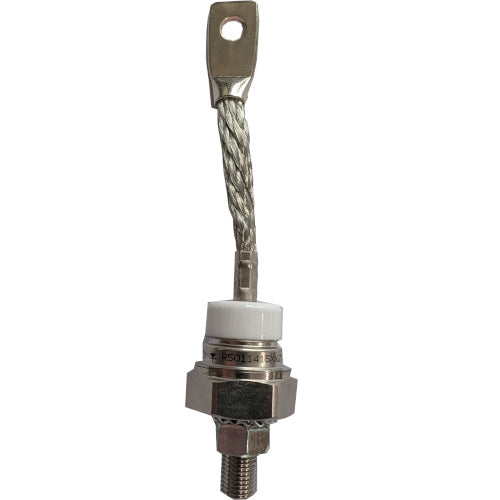

R5011415XXZT M8, Rotating Diode, M8 THD Stud, Cathode Stud, with 114mm Tail User for Rotating Generator or Motor Applicatons 150 Amp Rating Datasheet Datasheet

Read more less

R5001415XXZT M8, Rotating Diode, M8 THD Stud, Anode Stud, with 114mm Tail User for Rotating Generator or Motor Applicatons 150 Amp Rating Datasheet Datasheet

Read more less

R5001415XXZT 0617, Rotating Diode, 3/8" UNF 2A THD Stud, Anode Stud, with 114mm Tail User for Rotating Generator or Motor Applicatons 150 Amp Rating Datasheet Datasheet

Read more less

R5011415XXZT 0614, Rotating Diode for Generators, 3/8" UNF 2A THD Stud, Cathode Stud, with 114mm Tail User for Rotating Generator or Motor Applicatons 150 Amp Rating Datasheet Datasheet

Read more less

MS Power MST175S16M1, Thyristor(SCR), 175Amp, 1600V, M20 x 1.5, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST175S16M1 Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 420 Amp IF(av) @ 125 Deg C 175 Amp Itsm 5.6 kA VF(to) 1.03V I(gt) 200mA Tj(max) 125°C rF 1.3mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) M20 x 1.5 Tail Length to Stud 190mm R th(j-c) 0.14°C/W R th(c-h) 0.04°C/W Weight 320g Mounting Torque 2.5 - 2.77 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

MS Power MST175S16M, Thyristor(SCR), 175Amp, 1600V, M16 x 1.5, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST175S16M Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 420 Amp IF(av) @ 125 Deg C 175 Amp Itsm 5.6 kA VF(to) 1.03V I(gt) 200mA Tj(max) 125°C rF 1.3mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) M16 x 1.5 Tail Length to Stud 190mm R th(j-c) 0.14°C/W R th(c-h) 0.04°C/W Weight 320g Mounting Torque 2.5 - 2.77 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

MS Power MSD403R18M1, Rectifier Diode 400 Amp, 1800V, M16 x 1.5, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD403R18M1 Vrrm 1800V Diode Configuration Anode Stud IF(av) @ 100 Deg C 480 Amp IF(av) @ 120 Deg C 400 Amp Itsm 9.2 kA VF(to) 0.85V Tj(max) 180°C rF 0.51mΩ Termination Style (Tail) 10.6mm Round Lug Termination Style (Stud) M16 x 1.5 Tail Length to Stud 200mm R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

MS Power MSD403R18M, Rectifier Diode 400 Amp, 1800V, M20 x 1.5, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD403R18M Vrrm 1800V Diode Configuration Anode Stud IF(av) @ 100 Deg C 480 Amp IF(av) @ 120 Deg C 400 Amp Itsm 9.2 kA VF(to) 0.85V Tj(max) 180°C rF 0.51mΩ Termination Style (Tail) 10.6mm Round Lug Termination Style (Stud) M20 x 1.5 Tail Length to Stud 200mm R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

MS Power MSD403N18M1, Rectifier Diode 400 Amp, 1800V, M16 x 1.5, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD403N18M1 Vrrm 1800V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 480 Amp IF(av) @ 120 Deg C 400 Amp Itsm 9.2 kA VF(to) 0.85V Tj(max) 180°C rF 0.51mΩ Termination Style (Tail) 10.6mm Round Lug Termination Style (Stud) M16 x 1.5 Tail Length to Stud 200mm R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less
