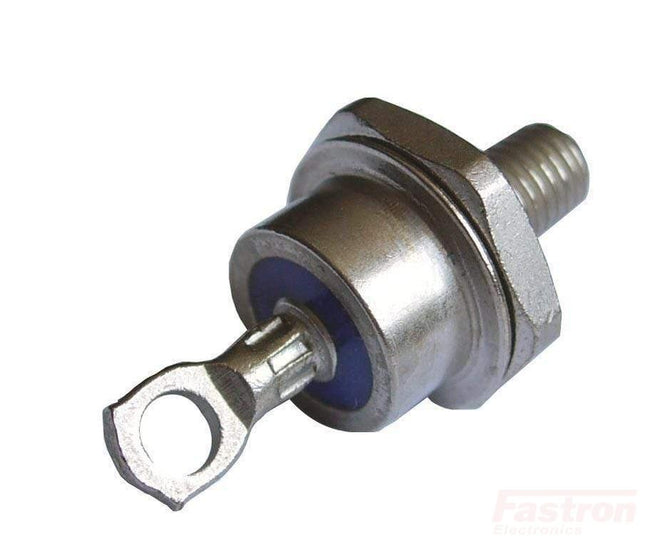

MS Power MSD71N16UB, Rectifier Diode 70 Amp, 1600V, 1/4" UNF, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD71N16UB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 95 Amp IF(av) @ 125 Deg C 70 Amp Itsm 1.15 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) Solder Tab Termination Style (Stud) 1/4" UNF Tail Length to Stud 158mm R th(j-c) 0.55°C/W R th(c-h) 0.20°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD401N16FB, Rectifier Diode 400 Amp, 1600V, ⌀41 x 6.5 x ⌀33mm Flat Base, Cathode stud, Replaces S6HN400 Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD401N16FB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C IF(av) @ 125 Deg C 400 Amp Itsm 7.4 kA VF(to) 0.75V Tj(max) 180°C rF 0.35mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) Flat Base ⌀41 x 6.5 x ⌀33mm Tail Length to Base 245mm R th(j-c) 0.125°C/W R th(c-h) 0.05°C/W Weight 250g Mounting Torque 20 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD300N16MB, Rectifier Diode 300 Amp, 1600V, 41x6.5x33mm Flat Base, Cathode Base, Replaces S6HN300 Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD300N16MB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 390 Amp IF(av) @ 125 Deg C 300 Amp Itsm 5.6 kA VF(to) 0.75V Tj(max) 180°C rF 0.40mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) Flat Base ⌀41 x 6.5 x ⌀33mm Tail Length to Base 177mm R th(j-c) 0.16°C/W R th(c-h) 0.005°C/W Weight 250g Mounting Torque 18 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

MS Power MSD26R16M1B, Rectifier Diode 26 Amp, 1600V, M5 x 1, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD26R16M1B Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 39 Amp IF(av) @ 125 Deg C 25 Amp Itsm 375 Amp VF(to) 0.85V Tj(max) 180°C rF 10mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) M5 x 1 Tail Length to Stud N/A R th(j-c) 1.5°C/W R th(c-h) 0.25°C/W Weight 5.5g Mounting Torque 2 Nm Factory Pack Qty 50 Stud Size M5 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD26N16M1B, Rectifier Diode 26 Amp, 1600V, M6, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD26N16M1B Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 39 Amp IF(av) @ 125 Deg C 25 Amp Itsm 375 Amp VF(to) 0.85V Tj(max) 180°C rF 10mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) M5 x 1 Tail Length to Stud N/A R th(j-c) 1.5°C/W R th(c-h) 0.25°C/W Weight 5.5g Mounting Torque 2 Nm Factory Pack Qty 50 Stud Size M5 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD151N18UB, Rectifier Diode 150 Amp, 1800V, 1/2"20UNF, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD151N18UB Vrrm 1800V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 165 Amp IF(av) @ 125 Deg C 130 Amp Itsm 2.5 kA VF(to) 0.85V Tj(max) 180°C rF 1.3mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) 1/2" 20UNF 2A Tail Length to Stud 185mm R th(j-c) 0.28°C/W R th(c-h) 0.05°C/W Weight 110g Mounting Torque 10 - 13 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD85N16MB Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD85N16MB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 95 Amp IF(av) @ 125 Deg C 70 Amp Itsm 1.15 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) Solder Tab Termination Style (Stud) 3/8" -24UNF2A Tail Length to Stud 158mm R th(j-c) 0.55°C/W R th(c-h) 0.20°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

International Rectifier 300U60D, Rectifier Diode, 300 Amp, 600V, 3/4 UNF-2A, Cathode to stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification International Rectifier Part Number 300U60D Vrrm 600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 400 Amp IF(av) @ 150 Deg C 300 Amp Itsm 6.55 kA VF(to) 0.61V Tj(max) 200°C rF 0.751mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) 3/4" UNF Tail Length to Stud 149mm R th(j-c) 0.18°C/W R th(c-h) 0.08°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Datasheet Product Datasheet

Read more less

MS Power MSD151R16UB, Rectifier Diode 150 Amp, 1600V, 1/2"20UNF, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD151R16UB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 165 Amp IF(av) @ 125 Deg C 130 Amp Itsm 2.5 kA VF(to) 0.85V Tj(max) 180°C rF 1.3mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) 1/2" 20UNF 2A Tail Length to Stud 185mm R th(j-c) 0.28°C/W R th(c-h) Screw Weight 110g Mounting Torque 10 - 13 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

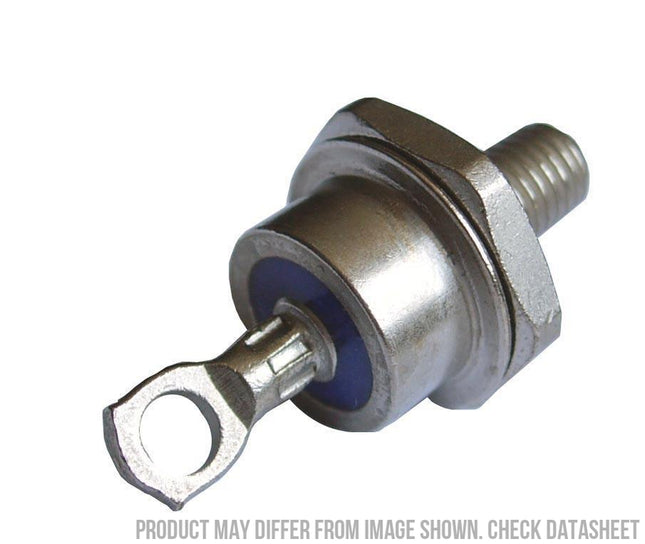

MS Power MSZPA36R10U Series Stud Mount Avalanche Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSZPA36R10U Vrrm 1600V Avalanche Diode Configuration Anode Stud IF(av) @ 100 Deg C 57 Amp IF(av) @ 125 Deg C 36 Amp Itsm 680 Amp VF(to) 0.85V Tj(max) 150°C rF 10mΩ Termination Style (No Tail) 2.2mm Solder Tab Termination Style (Stud) 10 - 32 UNF Tail Length to Stud N/A R th(j-c) 0.85°C/W R th(c-h) 0.25°C/W Weight 12g Mounting Torque 2 Nm Factory Pack Qty 50 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet Obsolescence This part is, Obsolete . Contact Us for Possible Replacement for replacmement

Read more less

Rectifier Diode 85 Amp, 1600V, 1/4" 28 UNF w/tail, Anode stud Product Datasheet

Read more less

S16BN86UL Rectifier Diode 85 Amp, 1600V, 1/4" 28 UNF w/tail, Cathode stud Product Datasheet

Read more less
