Insulated-Gate Bipolar Transistor (IGBT)
-
DIM500GDM33-F000, IGBT Half Bridge, 400Amp, 3300V
Dynex DIM500GDM33-F000, IGBT Half Bridge, 400Amp, 3300V Dual IGBT Module Features IGBT for High Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 6000V Isolation 130mm Base Width Applications Frequency Converter Deep Cycle Applications Controlled Rectifiers Softstart AC motor control High Frequency Inverter Drives Specification Dynex Part Number DIM500GDM33-F000 Vces 3300V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 500 Amp Package Size W:130mm L:160mm D:38mm V(isol) 6 kV Vf @ 25 Deg C 2.9V Tj(max) 150°C Td(on) @ 25 Deg C 1.18uS Td(off) @ 25 Deg C 1.95uS I(ces) @ 25 Deg C 5mA Rcc 0.78mOhm Terminals M5 Screw Hole Centres 57 x 124mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 48°C/W R th(c-h) 96°C/W Weight 1200g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Dynex 2022 Shorform Catalogue
$1,385.00
$1,634.30 inclGST -
DIM400GDM33-F000, IGBT Half Bridge, 400Amp, 3300V
Dynex DIM400GDM33-F000, IGBT Half Bridge, 400Amp, 3300V Dual IGBT Module Features IGBT for High Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 6000V Isolation 130mm Base Width Applications Frequency Converter Deep Cycle Applications Controlled Rectifiers Softstart AC motor control High Frequency Inverter Drives Specification Dynex Part Number DIM400GDM33-F000 Vces 3300V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 400 Amp Package Size W:130mm L:160mm D:38mm V(isol) 6 kV Vf @ 25 Deg C 2.9V Tj(max) 150°C Td(on) @ 25 Deg C 1.18uS Td(off) @ 25 Deg C 1.95uS I(ces) @ 25 Deg C 5mA Rcc 0.78mOhm Terminals M5 Screw Hole Centres 57 x 124mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 48°C/W R th(c-h) 96°C/W Weight 750g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Dynex 2022 Shorform Catalogue
$1,269.00
$1,497.42 inclGST -
DIM250PHM33-F000, IGBT Half Bridge, 250Amp, 3300V
Dynex DIM250PHM33-F000, IGBT Inverter, 250Amp, 3300V Dual IGBT Half Bridge Module Features IGBT for High Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 6000V Isolation 73mm Base Width Applications Frequency Converter Deep Cycle Applications Controlled Rectifiers Softstart AC motor control High Frequency Inverter Drives Specification Dynex Part Number DIM250PHM33-F000 Vces 3300V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 250 Amp Package Size W:73mm L:140mm D:38mm V(isol) 6 kV Vf @ 25 Deg C 2.9V Tj(max) 150°C Td(on) @ 25 Deg C 1.18uS Td(off) @ 25 Deg C 1.95uS I(ces) @ 25 Deg C 5mA Rcc 0.78mOhm Terminals M5 Screw Hole Centres 57 x 124mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 48°C/W R th(c-h) 96°C/W Weight 750g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Dynex 2022 Shorform Catalogue
$865.00
$1,020.70 inclGST -
DIM200PHM33-F000, IGBT Half Bridge, 200Amp, 3300V
Dynex DIM200PHM33-F000, IGBT Half Bridge, 200Amp, 3300V Dual IGBT Module Features IGBT for High Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 6000V Isolation 73mm Base Width Applications Frequency Converter Deep Cycle Applications Controlled Rectifiers Softstart AC motor control High Frequency Inverter Drives Specification Dynex Part Number DIM200PHM33-F000 Vces 3300V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 200 Amp Package Size W:73mm L:140mm D:38mm V(isol) 6 kV Vf @ 25 Deg C 2.9V Tj(max) 150°C Td(on) @ 25 Deg C 1.18uS Td(off) @ 25 Deg C 1.95uS I(ces) @ 25 Deg C 5mA Rcc 0.78mOhm Terminals M5 Screw Hole Centres 57 x 124mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 48°C/W R th(c-h) 96°C/W Weight 750g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Dynex 2022 Shorform Catalogue
$795.00
$938.10 inclGST -
2SD315AI-33, Scale IGBT Driver for Half Bridge topologies, 3300V IGBT Modules
Power Integrations 2SD315AI-33, Scale IGBT Driver for Half Bridge topologies, 3300V IGBT Modules Features Scale Driver Core ASIC based Plug and Play 3300V Rated 100kHz switching speed UL approved Specifications Power Module Manufacturer Power Integrations Status Archived Product Type Driver Technology SCALE-1 Interface Standard Transformer Product Series 2SD315AI-33 Power Module Part Number Any Power Module Package Any Channels 2 Voltage Class Value 3300V Output Power per Channel Value 3.00 UL Compliant compliant ROHS No Switching Frequency Value 100.00kHz Datasheet Product Datasheet
$421.50
$497.37 inclGST -
2SP0320T2A0-12, Scale IGBT Driver for Various Individual, parallel, multilevel inverter topologies, 1200V IGBT Modules
Power Integrations 2SP0320T2A0-12, Scale IGBT Driver for Various Individual, parallel, multilevel inverter topologies, 1200V IGBT Modules Features Scale Driver Core ASIC based Plug and Play 1200V Rated UL approved Specifications Power Module Manufacturer Power Integrations Status Archived Product Type Driver Technology SCALE-1 Interface Standard Transformer Product Series 2SP0320T2A0 Power Module Part Number Any Power Module Package Any Channels 2 Voltage Class Value 1200V Output Power per Channel Value 3.00 UL Compliant compliant ROHS No Switching Frequency Value 100.00kHz Datasheet Product Datasheet
$269.00
$317.42 inclGST -
KD421K15 Dual Darlington Transistor Module, 150 Amp, 1000V
Powerex KD421K15 Dual Darlington Transistor Module, 150 Amp, 1000V Features For Low Frequency Inverter Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 48mm Base Width Applications Frequency Converter AC Motor Control DC Motor Control Switchign Power Supplies Drives Specification Powerex Part Number KD421K15 Vces 1000V Transistor Configuration Dual Darlington Pair Transistor Module (Half Bridge) Ic(nom) @ 80 Deg C 150 Amp Package Size W:48mm L:108mm D:30mm V(isol) 2.5 kV Vfm @ 25 Deg C 1.8 Volts Tj(max) 150°C Td(on) @ 25 Deg C 3uS Td(off) @ 25 Deg C 3uS I(ces) @ 25 Deg C 2mA Rcc 1.0mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade Gate Connection (A 2.8 - 0.5mm) Screw M8 Power Connections R th(j-c) 0.725°C/W R th(c-h) 0.02°C/W Weight 180g Mounting Torque 5 Nm (5 Nm Terminals) Factory Pack Qty 1 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete. Contact Us for Possible Replacement for alternative
$175.76
$207.40 inclGST -

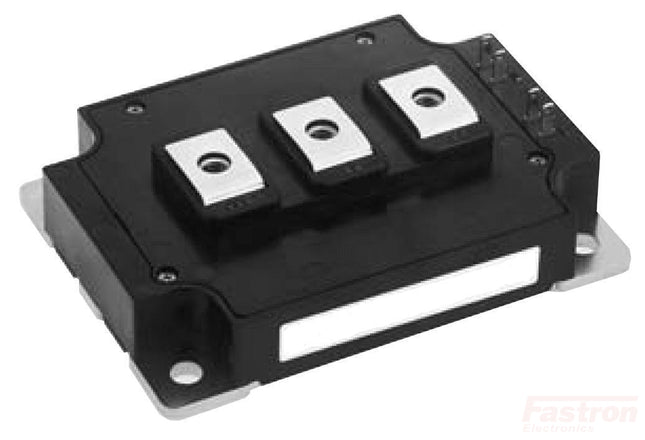

FF1400R12IP4, IGBT Dual, 1400A, 1200V, 89 x 250mm PrimePack 3
Infineon FF1400R12IP4 IGBT Dual Module Features IGBT Dual for Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 2500V Isolation 140mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FF1400R12IP4 Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 70 Deg C 1200 Amp Package Size W:140mm L:190mm D:38mm V(isol) 2.5 kV Vf @ 25 Deg C 2.8 - 3.5V Tj(max) 150°C Td(on) @ 25 Deg C 0.28uS Td(off) @ 25 Deg C 1.55uS I(ces) @ 25 Deg C 12mA Rcc 0.12mOhm Terminals M8 Screw Hole Centres 114 x 124mm(M6) Gate Terminals M4 R th(j-c) 0.025°C/W R th(c-h) 0.042°C/W Weight 1500g Mounting Torque 5 Nm (2 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative
$1,299.00
$1,532.82 inclGST -
BSM75GB120DLC, IGBT Dual, 75Amp, 1200V
Infineon BSM75GB120DLC IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM75GB120DLC Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 75 Amp Package Size W:34mm L:94mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.8 - 2.3V Tj(max) 150°C Td(on) @ 25 Deg C 0.05uS Td(off) @ 25 Deg C 0.3uS I(ces) @ 25 Deg C 500uA Rcc 1.0mOhm Terminals M5 Screw Hole Centres 80mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.3°C/W R th(c-h) 0.3°C/W Weight 250g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See FF75R12RT4, BSM100GB120DLCK or Contact Us for Possible Replacement for alternative
$115.00
$135.70 inclGST -
BSM100GB120DLCK, IGBT Dual, 100 Amp, 1200V
Infineon BSM100GB120DLCK, 100 Amp, 1200V IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM100GB120DLCK Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 100 Amp Package Size W:34mm L:94mm D:30mm V(isol) 2.5 kA Vf @ 25 Deg C 1.8 - 2.3V Tj(max) 150°C Td(on) @ 25 Deg C 0.06uS Td(off) @ 25 Deg C 0.35uS I(ces) @ 25 Deg C 5mA Rcc 0.85mOhm Terminals M5 Screw Hole Centres 80mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.3°C/W R th(c-h) 0.3°C/W Weight 160g Mounting Torque 3 Nm (2.5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany  Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative  Â
$194.00
$228.92 inclGST -

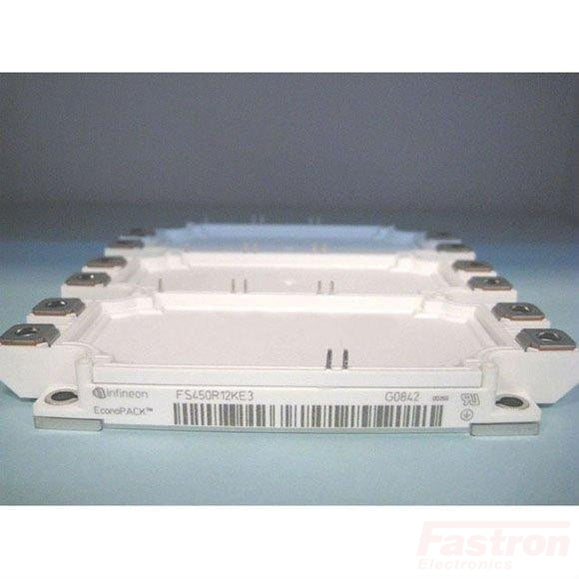

FS450R12KE4, IGBT H Bridge, 450Amp, 1200V
Infineon FS450R12KE4 IGBT H Bridge Module Features IGBT for Rectifier Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Infineon Part Number FS450R12KE4 Vces 1200V Transistor Configuration H Bridge IGBT Module Ic(nom) @ 80 Deg C 450 Amp Package Size W:162mm L:150mm D:20mm V(isol) 2.5 kV Vf @ 25 Deg C 1.65 - 2.15V Tj(max) 150°C Td(on) @ 25 Deg C 0.25uS Td(off) @ 25 Deg C 0.55uS I(ces) @ 25 Deg C 5mA Rcc 1.1mOhm Terminals M6 Screw Hole Centres 110 x 150mm(M6) Gate Terminals Pin R th(j-c) 0.34°C/W R th(c-h) 0.087°C/W Weight 910g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives No Alternative
$1,055.00
$1,244.90 inclGST -
FZ2400R12HP4, IGBT4 Trench Module, Vces 1200V, Icnom 2400Amp
Infineon FZ2400R12HP4 IGBT Module Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 4000V Isolation 140mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FZ2400R12HP4 Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 90 Deg C 2400 Amp Package Size W:140mm L:190mm D:38mm V(isol) 4 kV Vf @ 25 Deg C 2.8 - 3.5V Tj(max) 150°C Td(on) @ 25 Deg C 0.50uS Td(off) @ 25 Deg C 1.05uS I(ces) @ 25 Deg C 5mA Rcc 0.13mOhm Terminals M8 Screw Hole Centres 114 x 124mm(M6) Gate Terminals M4 R th(j-c) 20°C/W R th(c-h) 11°C/W Weight 1300g Mounting Torque 5 Nm (2 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative
$1,618.00
$1,909.24 inclGST
