Insulated-Gate Bipolar Transistor (IGBT)
-
SKM150GB17E4G, IGBT Trench Dual, 150 Amp, 1700V, Medium Fast
Semikron SKM150GB17E4G IGBT Inverter Module Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM150GB17E4G Vces 1700V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 187 Amp Package Size W:61mm L:106mm D:26mm V(isol) 2.5 kV Vf @ 25 Deg C 2.0 - 2.40V Tj(max) 150°C Td(on) @ 25 Deg C 0.205uS Td(off) @ 25 Deg C 0.55uS I(ces) @ 25 Deg C 2mA Rcc 0.55mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Faston 2.8 x 0.5mm R th(j-c) 0.017°C/W R th(c-h) 0.027°C/W Weight 325g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany Datasheet Product Datasheet
$187.00
$220.66 inclGST -
FF400R33KF2C, IGBT Inverter, 400Amp, 3300V
Infineon FF400R33KF2C, IGBT Inverter, 400Amp, 3300V Features IGBT for High Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 6000V Isolation 73mm Base Width Applications Frequency Converter Deep Cycle Applications Controlled Rectifiers Soft start AC motor control High Frequency Inverter Drives Specification Infineon Part Number FF400R33KF2C Vces 3300V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 400 Amp Package Size W:130mm L:160mm D:38mm V(isol) 6 kV Vf @ 25 Deg C 2.8 - 3.5V Tj(max) 150°C Td(on) @ 25 Deg C 0.28uS Td(off) @ 25 Deg C 1.55uS I(ces) @ 25 Deg C 5mA Rcc 0.37mOhm Terminals M5 Screw Hole Centres 114 x 124mm(M6) Gate Terminals M4 R th(j-c) 51°C/W R th(c-h) 36°C/W Weight 1100g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany  Datasheet Product Datasheet Alternatives Dynex 400 Amp Equivalent Dynex 500 Amp Equivalent Â
$1,986.75
$2,344.37 inclGST -
Last stock!

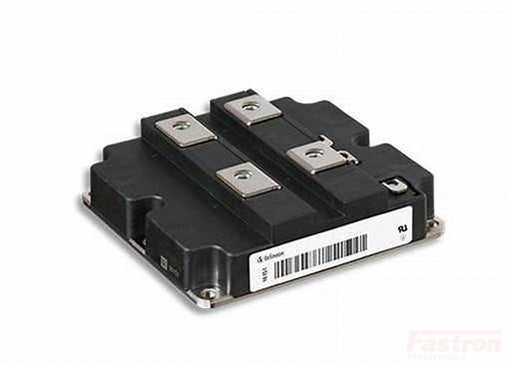

FZ1200R33KF2C, IGBT Inverter Module, Vces 3300V, Icnom 1200Amp
Infineon FZ1200R33KF2C, IGBT Inverter Module, Vces 3300V, Icnom 1200Amp Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 6000V Isolation 140mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FZ1200R33KF2C Vces 3300V Transistor Configuration Single IGBT Ic(nom) @ 70 Deg C 1200 Amp Package Size W:140mm L:190mm D:38mm V(isol) 6 kV Vf @ 25 Deg C 2.8 - 3.5V Tj(max) 150°C Td(on) @ 25 Deg C 0.28uS Td(off) @ 25 Deg C 1.55uS I(ces) @ 25 Deg C 12mA Rcc 0.12mOhm Terminals M8 Screw Hole Centres 114 x 124mm(M6) Gate Terminals M4 R th(j-c) 0.025°C/W R th(c-h) 0.042°C/W Weight 1500g Mounting Torque 5 Nm (2 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany  Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative Â
$5,200.00
$6,136.00 inclGST -

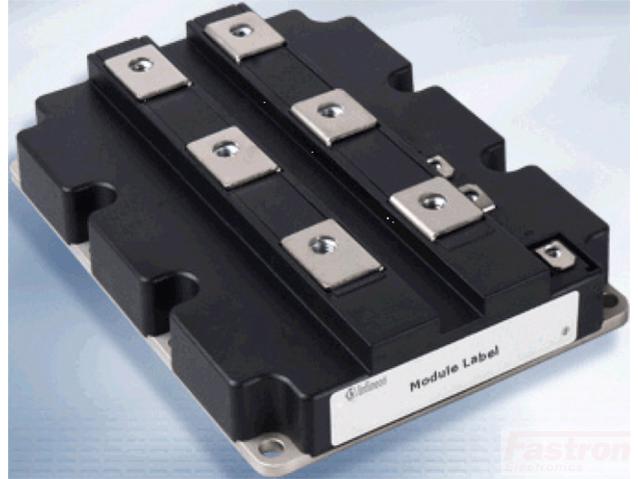

FZ3600R12HP4, IGBT4 Trench Module, Vces 1200V, Icnom 3600Amp
Infineon FZ3600R12HP4 IGBT Module Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 4000V Isolation 140mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FZ3600R12HP4 Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 90 Deg C 3600 Amp Package Size W:140mm L:190mm D:38mm V(isol) 4 kV Vf @ 25 Deg C 2.8 - 3.5V Tj(max) 150°C Td(on) @ 25 Deg C 0.44uS Td(off) @ 25 Deg C 1.15uS I(ces) @ 25 Deg C 12mA Rcc 0.085mOhm Terminals M8 Screw Hole Centres 114 x 124mm(M6) Gate Terminals M4 R th(j-c) 13.5°C/W R th(c-h) 7.2°C/W Weight 1900g Mounting Torque 5 Nm (2 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative
$2,327.00
$2,745.86 inclGST -
FF450R17ME3, IGBT Dual, 450Amp, 1700V
Infineon FF450R17ME3, IGBT Dual, 450Amp, 1700V Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 3400V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FF450R17ME3 Vces 1700V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 100 Deg C 450 Amp Package Size W:62mm L:152mm D:20mm (Presspack) V(isol) 3.4 kV Vf @ 25 Deg C 1.80 - 2.20V Tj(max) 150°C Td(on) @ 25 Deg C 0.28uS Td(off) @ 25 Deg C 0.81uS I(ces) @ 25 Deg C 3mA Rcc 1.10mOhm Terminals M6 Screw Hole Centres 110 x 50mm(M6) Gate Terminals Pin R th(j-c) 0.10°C/W R th(c-h) 0.051°C/W Weight 345g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany  Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative Â
$435.00
$513.30 inclGST -
FF800R17KP4_B2, Dual IGBT Trench, 800Amp, 1700V, Emitter Controlled
Infineon FF800R17KP4_B2 IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 2500V Isolation 140mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FF800R17KP4_B2 Vces 1700V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 800 Amp Package Size W:140mm L:130mm D:38mm V(isol) 2.5 kV Vf @ 25 Deg C 1.55 - 2.0V Tj(max) 150°C Td(on) @ 25 Deg C 0.59uS Td(off) @ 25 Deg C 1.0uS I(ces) @ 25 Deg C 5mA Rcc 0.33mOhm Terminals M8 Screw Hole Centres 114 x 124mm(M6) Gate Terminals M4 R th(j-c) 36.8°C/W R th(c-h) 30.0°C/W Weight 920g Mounting Torque 5 Nm (2 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative
$1,629.00
$1,922.22 inclGST -

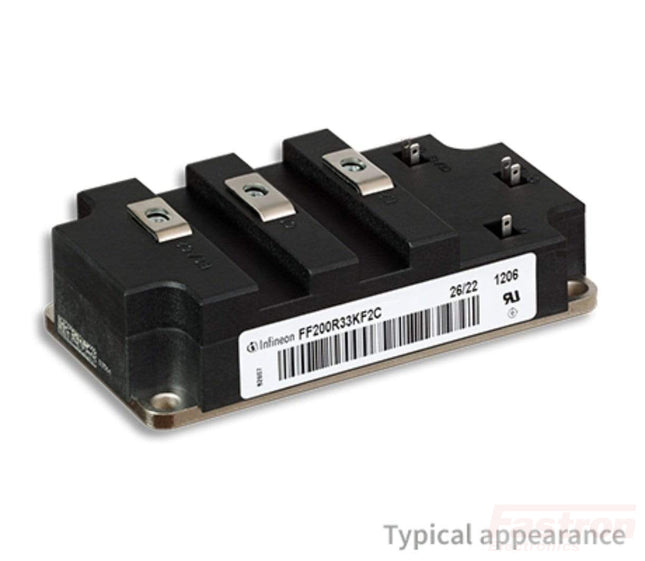

FF200R33KF2C, IGBT Inverter, 200Amp, 3300V
Infineon FF200R33KF2C Dual IGBT Inverter Module Features IGBT for High Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 6000V Isolation 73mm Base Width Applications Frequency Converter Deep Cycle Applications Controlled Rectifiers Softstart AC motor control High Frequency Inverter Drives Specification Infineon Part Number FF200R33KF2C Vces 3300V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 200 Amp Package Size W:73mm L:140mm D:38mm V(isol) 6 kV Vf @ 25 Deg C 2.8 - 3.5V Tj(max) 150°C Td(on) @ 25 Deg C 0.28uS Td(off) @ 25 Deg C 1.55uS I(ces) @ 25 Deg C 5mA Rcc 0.78mOhm Terminals M5 Screw Hole Centres 57 x 124mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 108°C/W R th(c-h) 93.0°C/W Weight 500g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Dynex 200 Amp Equivalent Dynex 250 Amp Equivalent
$2,139.00
$2,524.02 inclGST -
Last stock!
CM300HA-12H, Single IGBT 300 Amp, 1200V, 62mm Base Width
Mitsubishi CM300HA-12H Single IGBT 300 Amp, 1200V, 62mm Base Width Specification Schurter Part Number CM300HA-12H Configuration Single Insulated IGBT Nominal Voltage 1200V Collector Current (Ic) 300 Amp Collector Current (Tj < 150 Deg C) 600 Amp Isolation 2500VAC Dimensions 62 x 107 x 36mm Mounting Style Panel Mount Operating Temperature Range (Tj Max) -40°C / 150°C Maximum Collector Dissipation 2100W Unit Weight 400g Factory Pack Qty 10 Datasheet Product Datasheet
$145.00
$171.10 inclGST -
FS150R12KE3G, IGBT Inverter, 150 Amp, 1200V
Infineon FS150R12KE3G, IGBT Inverter, 150 Amp, 1200V Module Features IGBT for Rectifier Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Infineon Part Number FS150R12KE3G Vces 1200V Transistor Configuration H Bridge IGBT Module Ic(nom) @ 80 Deg C 150 Amp Package Size W:162mm L:150mm D:20mm V(isol) 2.5 kV Vf @ 25 Deg C 1.65 - 2.15V Tj(max) 150°C Td(on) @ 25 Deg C 0.25uS Td(off) @ 25 Deg C 0.55uS I(ces) @ 25 Deg C 5mA Rcc 1.1mOhm Terminals M6 Screw Hole Centres 110 x 150mm(M6) Gate Terminals Pin R th(j-c) 0.34°C/W R th(c-h) 0.087°C/W Weight 910g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany  Datasheet Product Datasheet Alternatives No Alternative
$644.46
$760.46 inclGST -
Last stock!

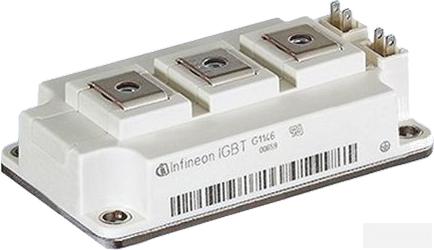

FF200R12KT4, IGBT Dual, 200 Amp, 1200V
Infineon FF200R12KT4 IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 4000V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FF200R12KT4 Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 100 Deg C 200 Amp Package Size W:61mm L:94mm D:30mm V(isol) 4 kV Vf @ 25 Deg C 1.65 - 2.15V Tj(max) 150°C Td(on) @ 25 Deg C 0.16uS Td(off) @ 25 Deg C 0.45uS I(ces) @ 25 Deg C 5mA Rcc 0.70mOhm Terminals M5 Screw Hole Centres 80mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.20°C/W R th(c-h) 0.05°C/W Weight 340g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives BSM200GB120DLC or Contact Us for Possible Replacement for alternative
$153.09
$180.65 inclGST -
FF150R12RT4, IGBT Dual, 150 Amp, 1200V
Infineon FF150R12RT4, IGBT Dual, 150 Amp, 1200V Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 4000V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FF150R12RT4 Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 100 Deg C 150 Amp Package Size W:61mm L:94mm D:30mm V(isol) 4 kV Vf @ 25 Deg C 1.8 - 2.3V Tj(max) 150°C Td(on) @ 25 Deg C 0.13uS Td(off) @ 25 Deg C 0.30uS I(ces) @ 25 Deg C 500uA Rcc 0.65mOhm Terminals M5 Screw Hole Centres 80mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.31°C/W R th(c-h) 0.13°C/W Weight 160g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives BSM200GB120DLC or Contact Us for Possible Replacement for alternative
$106.00
$125.08 inclGST -

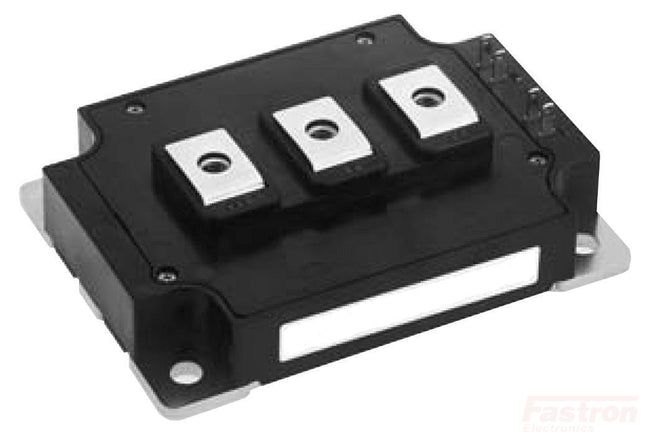

FF1200R12KE3, IGBT Dual, 1200A, 1200V
Infineon FF1200R12KE3 IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 2500V Isolation 140mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FF1200R12KE3 Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 70 Deg C 1200 Amp Package Size W:140mm L:130mm D:38mm V(isol) 2.5 kV Vf @ 25 Deg C 2.2 - 2.8V Tj(max) 150°C Td(on) @ 25 Deg C 0.60uS Td(off) @ 25 Deg C 0.82uS I(ces) @ 25 Deg C 5mA Rcc 0.18mOhm Terminals M8 Screw Hole Centres 114 x 124mm(M6) Gate Terminals M4 R th(j-c) 0.025°C/W R th(c-h) 0.042°C/W Weight 1500g Mounting Torque 5 Nm (2 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative
$1,357.60
$1,601.97 inclGST
