Dynex DIM125PHM33-TS000, IGBT Half Bridge, 250Amp, 3300V Dual IGBT Module Features IGBT for High Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 6000V Isolation 73mm Base Width Applications Frequency Converter Deep Cycle Applications Controlled Rectifiers Softstart AC motor control High Frequency Inverter Drives Specification Dynex Part Number DIM125PHM33-TS000 Vces 3300V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 125 Amp Package Size W:73mm L:140mm D:38mm V(isol) 6 kV Vf @ 25 Deg C 2.9V Tj(max) 150°C Td(on) @ 25 Deg C 1.18uS Td(off) @ 25 Deg C 1.95uS I(ces) @ 25 Deg C 5mA Rcc Terminals M5 Screw Hole Centres 57 x 124mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) R th(c-h) Weight 750g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Dynex 2022 Shorform Catalogue

Read more less

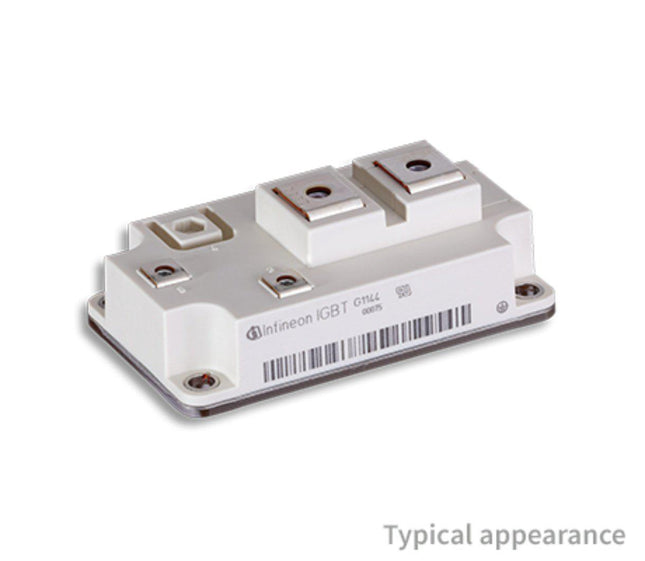

Infineon/Siemens FZ600R12KE4, IGBT Single, 600Amp, 1200V Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon/Siemens Part Number FZ600R12KE4 Vces 1200V Transistor Configuration Single IGBT Module Ic(nom) @ 60 Deg C 600 Amp Package Size W:61.4mm L:106.4mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.8 - 2.3V Tj(max) 150°C Td(on) @ 25 Deg C 0.24uS Td(off) @ 25 Deg C 0.61uS I(ces) @ 25 Deg C 5mA Rcc N/A Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.09°C/W R th(c-h) N/A Weight 500g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete. Contact Us for Possible Replacement for alternative

Read more less

Power Integrations 2SC0535T2A1-33, Dual Scale IGBT Driver, Multipurpose for 3300V IGBT Modules Features Scale Driver Core ASIC based Plug and Play 3300V Rated 100kHz switching speed UL approved Specifications Power Module Manufacturer Power Integrations Status Archived Product Type Driver Technology SCALE-2 Interface Standard Transformer Product Series 2SC0535T2A1-33 Power Module Part Number Any Power Module Package Any Channels 2 Voltage Class Value 3300V Output Power per Channel Value 3.00 UL Compliant compliant ROHS No Switching Frequency Value 100.00kHz Datasheet Product Datasheet

Read more less

Semikron SKiiP37NAB12T4V1, IGBT Trench 4, H Bridge, 90Amp, 1200V Features IGBT & Diode Rectifier with Chopper/Brake Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKiiP37NAB12T4V1 Vces 1200V Transistor Configuration H Bridge IGBT Module Ic(nom) @ 80 Deg C 90 Amp Package Size W:81.5mm L:58.5mm D:16mm Terminals M6 Screw Mounting 2 x M12 Weight 100g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany Datasheet Product Datasheet Alternatives No Alternative

Read more less

Toshiba MG75J2YS50, IGBT Dual, 75 amp, 600V Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 35mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number MG75J2YS50 Vces 600V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 100 Deg C 75 Amp Package Size W:35mm L:94mm D:308mm V(isol) 2.5 kV Vf @ 25 Deg C 1.7 - 2.15V Tj(max) 175°C Td(on) @ 25 Deg C 0.13uS Td(off) @ 25 Deg C 0.3uS I(ces) @ 25 Deg C 1mA Rcc 0.65mOhm Terminals M5 Screw Hole Centres 80mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.58°C/W R th(c-h) 0.125°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See FF75R12RT4, BSM100GB120DLCK or Contact Us for Possible Replacement for alternative

Read more less

Infineon FF150R12KS4, IGBT Dual, 150 Amp, 1200V Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 4000V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FF150R12RT4 Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 100 Deg C 150 Amp Package Size W:61mm L:94mm D:30mm V(isol) 4 kV Vf @ 25 Deg C 1.8 - 2.3V Tj(max) 150°C Td(on) @ 25 Deg C 0.13uS Td(off) @ 25 Deg C 0.30uS I(ces) @ 25 Deg C 500uA Rcc 0.65mOhm Terminals M5 Screw Hole Centres 80mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.31°C/W R th(c-h) 0.13°C/W Weight 160g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives BSM200GB120DLC or Contact Us for Possible Replacement for alternative

Read more less

Infineon FF600R12KE4 Dual IGBT Half Bridge Module Features Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 6000V Isolation 61.4mm Base Width Applications Deep Cycle Applications Controlled Rectifiers Softstart AC motor control High Frequency Inverter Drives Specification Infineon Part Number FF600R12KE4 Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 600 Amp Package Size W:61.4mm L:130mm D:38mm V(isol) 6 kV Vf @ 25 Deg C 2.8 - 3.5V Tj(max) 150°C Td(on) @ 25 Deg C 0.28uS Td(off) @ 25 Deg C 1.55uS I(ces) @ 25 Deg C 5mA Rcc 0.37mOhm Terminals M5 Screw Hole Centres 114 x 124mm(M6) Gate Terminals M4 R th(j-c) 51°C/W R th(c-h) 36°C/W Weight 1100g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet
