Infineon/Siemens BSM400GB60DN2 IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon/Siemens Part Number BSM400GB60DN2 Vces 600V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 60 Deg C 400 Amp Package Size W:61.4mm L:106.4mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.9 - 2.4V Tj(max) 150°C Td(on) @ 25 Deg C 0.2uS Td(off) @ 25 Deg C 0.68uS I(ces) @ 25 Deg C 5mA Rcc N/A Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.09°C/W R th(c-h) N/A Weight 500g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete. Contact Us for Possible Replacement for alternative

Read more less

Infineon BSM200GB120DLC IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM200GB120DLC Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 200 Amp Package Size W:61.4mm L:106.4mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.25 - 1.6V Tj(max) 150°C Td(on) @ 25 Deg C 0.163uS Td(off) @ 25 Deg C 0.253uS I(ces) @ 25 Deg C 5mA Rcc 0.7mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.4°C/W R th(c-h) 0.02°C/W Weight 340g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative

Read more less

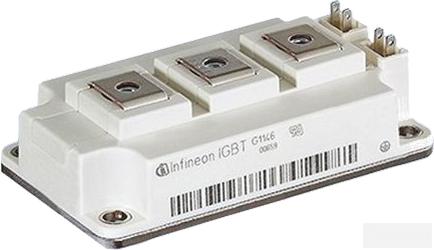

Infineon BSM200GA120DLC IGBT Single Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM200GA120DLC Vces 1200V Transistor Configuration Single IGBT Module Ic(nom) @ 80 Deg C 200 Amp Package Size W:61.4mm L:106.4mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.8 - 2.3V Tj(max) 150°C Td(on) @ 25 Deg C 0.09uS Td(off) @ 25 Deg C 0.54uS I(ces) @ 25 Deg C 5mA Rcc 0.5mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.1°C/W R th(c-h) 0.02°C/W Weight 340g Mounting Torque 1.5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative

Read more less

Infineon BSM150GB60DLC IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM150GB60DLC Vces 600V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 150 Amp Package Size W:61.4mm L:106.4mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.25 - 1.6V Tj(max) 150°C Td(on) @ 25 Deg C 0.115uS Td(off) @ 25 Deg C 0.200uS I(ces) @ 25 Deg C 4mA Rcc 1.0mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.4°C/W R th(c-h) 0.02°C/W Weight 180g Mounting Torque 5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete. Contact Us for Possible Replacement for alternative
