Insulated-Gate Bipolar Transistor (IGBT)
-
SKM300GB123D, IGBT Half Bridge, 300 Amp, 1200V
Semikron SKM300GB123D, IGBT Half Bridge, 300 Amp, 1200V Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61.4mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM300GB123D Vces 1200V Transistor Configuration Single IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 220 Amp Package Size W:61.4mm L:106mm D:26mm V(isol) 2.5 kV Vf @ 25 Deg C Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Faston 2.8 x 0.5mm Weight 325g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany  Datasheet Product Datasheet
$257.00
$303.26 inclGST -
BSM35GP120, IGBT Bridge with Chopper and Diode Rectifier Bridge, 35 Amp, 1200V, 45mm Presspack
Infineon BSM35GP120, IGBT Bridge with Chopper and Diode Rectifier Bridge, 35 Amp, 1200V, 45mm Presspack Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 3400V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM35GP120 Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 100 Deg C 35 Amp Package Size W:45mm L:107.5mm D:20.5mm (Presspack) V(isol) 3.4 kV Vf @ 25 Deg C 1.80 - 2.20V Tj(max) 150°C Td(on) @ 25 Deg C 0.28uS Td(off) @ 25 Deg C 0.81uS I(ces) @ 25 Deg C 3mA Rcc 1.10mOhm Terminals M6 Screw Hole Centres 93 x 32mm(M6) Gate Terminals Pin R th(j-c) 0.10°C/W R th(c-h) 0.08°C/W Weight 180g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany  Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative Â
$159.00
$187.62 inclGST -
SEMiX202GB17E4S, 2 IGBT Trench Homogenous Si, 248Amp, 1700V
Semikron SEMiX202GB17E4S, 2 IGBT Trench Homogenous Si, 248Amp, 1700V Features Dual IGBT Module Homogenous Si Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SEMiX202GB17E4S Vces 1700V Transistor Configuration H Bridge IGBT Module (4 Trench with Chopper) Ic(nom) @ 80 Deg C 22 Amp Package Size W:63.5mm L:51.5mm D:16mm Terminals Press Fit Mounting 1 x M12 Weight 250g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany  Datasheet Product Datasheet Alternatives No Alternative
$189.00
$223.02 inclGST -
SKiiP 22NAB126V10, 4 IGBT Trench 4 H Bridge with Chopper, 22Amp, 1200V
Semikron SKiiP 22NAB126V10, 4 IGBT Trench 4 H Bridge with Chopper, 22Amp, 1200V Features IGBT & Diode Rectifier with Chopper/Brake Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKiiP 22NAB126V10 Vces 1200V Transistor Configuration H Bridge IGBT Module (4 Trench with Chopper) Ic(nom) @ 80 Deg C 22 Amp Package Size W:58.5mm L:51.5mm D:16mm Terminals Press Fit Mounting 1 x M12 Weight 100g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany  Datasheet Product Datasheet Alternatives No Alternative
$165.00
$194.70 inclGST -
SKiiP 24AC12T4V1, IGBT Trench 4, H Bridge, 50Amp, 1200V
Semikron SKiiP 24AC12T4V1, IGBT Trench 4, H Bridge, 50Amp, 1200V Features IGBT & Diode Rectifier with Chopper/Brake Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKiiP 24AC12T4V1 Vces 1200V Transistor Configuration H Bridge IGBT Module Ic(nom) @ 80 Deg C 90 Amp Package Size W:81.5mm L:58.5mm D:16mm Terminals M6 Screw Mounting 2 x M12 Weight 100g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany  Datasheet Product Datasheet Alternatives No Alternative
$174.00
$205.32 inclGST -
SKM200GB125D, IGBT Half Bridge, 200 Amp, 1200V
Semikron SKM200GB125D, IGBT Half Bridge, 200 Amp, 1200V Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61.4mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM200GB125D Vces 1200V Transistor Configuration Single IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 160 Amp Package Size W:61.4mm L:106mm D:26mm V(isol) 2.5 kV Vf @ 25 Deg C Tj(max) 150°C Td(on) @ 25 Deg C 0.220uS Td(off) @ 25 Deg C 0.600uS I(ces) @ 25 Deg C 0.1mA Rcc 1mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Faston 2.8 x 0.5mm R th(j-c) R th(c-h) 0.018°C/W Weight 325g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany  Datasheet Product Datasheet
$235.00
$277.30 inclGST -
SKM100GB123D, IGBT Trench Half Bridge/SPT, 100 Amp, 1200V
Semikron SKM100GB123D, IGBT Trench Half Bridge/SPT, 100 Amp, 1200V Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM100GB123D Vces 1200V Transistor Configuration Single IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 90 Amp Package Size W:34mm L:106mm D:26mm V(isol) 2.5 kV Vf @ 25 Deg C 2.0 - 2.40V Tj(max) 150°C Td(on) @ 25 Deg C 0.030uS Td(off) @ 25 Deg C 0.450uS I(ces) @ 25 Deg C 0.1mA Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Faston 2.8 x 0.5mm R th(j-c) 0.5°C/W R th(c-h) 0.36°C/W Weight 325g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany  Datasheet Product Datasheet
$127.00
$149.86 inclGST -
SKM100GAR123D, IGBT Trench Half Bridge/SPT, 100 Amp, 1200V
Semikron SKM100GAR123D, IGBT Trench Half Bridge/SPT, 100 Amp, 1200V Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM100GAR123D Vces 1200V Transistor Configuration Single IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 90 Amp Package Size W:34mm L:106mm D:26mm V(isol) 2.5 kV Vf @ 25 Deg C 2.0 - 2.40V Tj(max) 150°C Td(on) @ 25 Deg C 0.030uS Td(off) @ 25 Deg C 0.450uS I(ces) @ 25 Deg C 0.1mA Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Faston 2.8 x 0.5mm R th(j-c) 0.5°C/W R th(c-h) 0.36°C/W Weight 325g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany  Datasheet Product Datasheet
$127.00
$149.86 inclGST -
SKM100GAL123D, IGBT Trench Half Bridge/SPT, 100 Amp, 1200V
Semikron SKM100GAL123D, IGBT Trench Half Bridge/SPT, 100 Amp, 1200V Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM100GAL123D Vces 1200V Transistor Configuration Single IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 90 Amp Package Size W:34mm L:106mm D:26mm V(isol) 2.5 kV Vf @ 25 Deg C 2.0 - 2.40V Tj(max) 150°C Td(on) @ 25 Deg C 0.030uS Td(off) @ 25 Deg C 0.450uS I(ces) @ 25 Deg C 0.1mA Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Faston 2.8 x 0.5mm R th(j-c) 0.5°C/W R th(c-h) 0.36°C/W Weight 325g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany  Datasheet Product Datasheet
$127.00
$149.86 inclGST -

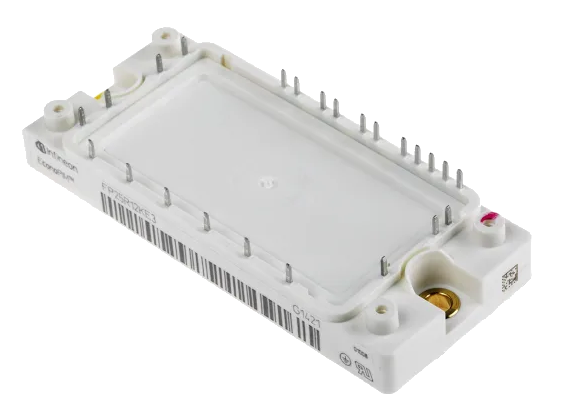

FP25R12KE3, Trench IGBT and Emitter Controlled 3 Diode, 25 Amp, 1200V, Press Fit 45mm base width
Infineon FP25R12KE3, Trench IGBT and Emitter Controlled 3 Diode, 25 Amp, 1200V, Press Fit 45mm base width Features IGBT for Rectifier Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Infineon Part Number FP25R12KE3 Vces 1200V Transistor Configuration H Bridge IGBT Module & Emitter Controlled Diodes x 3 Ic(nom) @ 80 Deg C 150 Amp Package Size W:162mm L:150mm D:20mm V(isol) 2.5 kV Vf @ 25 Deg C 1.65 - 2.15V Tj(max) 150°C Td(on) @ 25 Deg C 0.25uS Td(off) @ 25 Deg C 0.55uS I(ces) @ 25 Deg C 5mA Rcc 1.1mOhm Terminals Press Fit Gate Terminals Pin Weight 180g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany  Datasheet Product Datasheet Alternatives No Alternative
$139.00
$164.02 inclGST -
Last stock!
SKM145GAR128D, IGBT Trench Half Bridge/SPT, 145 Amp, 1200V
Semikron SKM145GAR128D, IGBT Trench Half Bridge/SPT, 145 Amp, 1200V Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM145GAR128D Vces 1200V Transistor Configuration Single IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 135 Amp Package Size W:34mm L:106mm D:26mm V(isol) 2.5 kV Vf @ 25 Deg C 2.0 - 2.40V Tj(max) 150°C Td(on) @ 25 Deg C 0.210uS Td(off) @ 25 Deg C 0.430uS I(ces) @ 25 Deg C 0.1mA Rcc 1mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Faston 2.8 x 0.5mm R th(j-c) R th(c-h) 0.005°C/W Weight 325g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany Datasheet Product Datasheet
$134.90
$159.18 inclGST -
SKM145GAL128D, IGBT Trench Half Bridge/SPT, 145 Amp, 1200V
Semikron SKM145GAL128D, IGBT Trench Half Bridge/SPT, 145 Amp, 1200V Features IGBT for Inverter Pressure Contact Technology Electrically insulated base plate Press Mounted Style 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Inverter Drives Specification Semikron Part Number SKM145GAL128D Vces 1200V Transistor Configuration Single IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 135 Amp Package Size W:34mm L:106mm D:26mm V(isol) 2.5 kV Vf @ 25 Deg C 2.0 - 2.40V Tj(max) 150°C Td(on) @ 25 Deg C 0.210uS Td(off) @ 25 Deg C 0.430uS I(ces) @ 25 Deg C 0.1mA Rcc 1mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Faston 2.8 x 0.5mm R th(j-c) R th(c-h) 0.005°C/W Weight 325g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Semikron Headquarters Germany Datasheet Product Datasheet
$134.90
$159.18 inclGST
