Techsem MDK300-12-413F3D, Dual Diode Module, Common Cathode, 300 Amp, 1200V, 50mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MDK300-12-413F3D Vrrm 1200V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 300 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.1 kA VF(to) 0.75V Tj(max) 150°C rF 0.56mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 6 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives See MDD312-16N1 for alternative IXYS solder contact alternative

Read more less

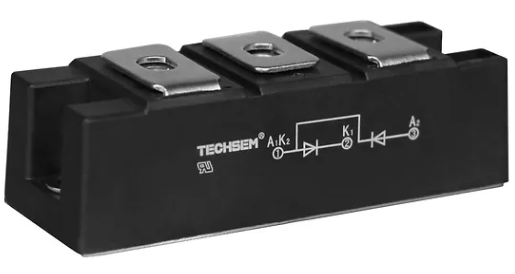

Techsem MDC182-25-216F3, 182 Amp, 2500V, Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MDC182-25-216F3 Vrrm 2500V Diode Configuration Single Diode Module IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 6.4 kA VF(to) 0.85V Tj(max) 150°C rF 1.05mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.20°C/W R th(c-h) 0.08°C/W Weight 320g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet

Read more less

Techsem MDC300-16-413F3D, Dual Diode Module, 300 Amp, 1600V, 50mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MDC300-16-413F3D Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 300 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.1 kA VF(to) 0.75V Tj(max) 150°C rF 0.56mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 6 Certification ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives See MDD312-16N1 for alternative IXYS solder contact alternative

Read more less

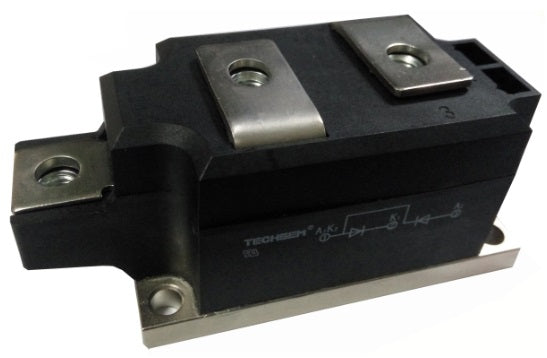

Techsem MDK300-16-413F3D, Dual Diode Module Common Cathode, 300 Amp, 1600V, 50mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MDK300-16-413F3D Vrrm 1600V Diode Configuration Dual Diode Module Common Cathode IF(av) @ 100 Deg C 300 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.1 kA VF(to) 0.75V Tj(max) 150°C rF 0.56mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 6 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives See MDD312-16N1 for alternative IXYS solder contact alternative

Read more less

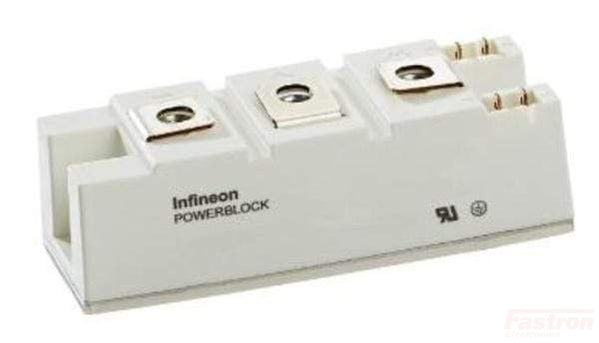

Infineon DD180N16S, Dual Diode Module, 180 Amp, 1600V Features Solder-Solder Technology Electrically insulated base plate Industrial standard package 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Specification Infineon Part Number DD180N16S Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 85 Deg C 192 Amp Package Size W:34mm L:94mm D:30mm Itsm 5.75 kA VF(to) 0.85V Tj(max) 130°C rF 0.95mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.16°C/W R th(c-h) 0.08°C/W Weight 165g Mounting Torque 5 Nm (5 Nm Terminals) Factory Pack Qty 8 Certification UL Listed Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MDD172-16N1 for IXYS replacement, or DD171N12K Infineon Pressure Contact Technology replacement

Read more less

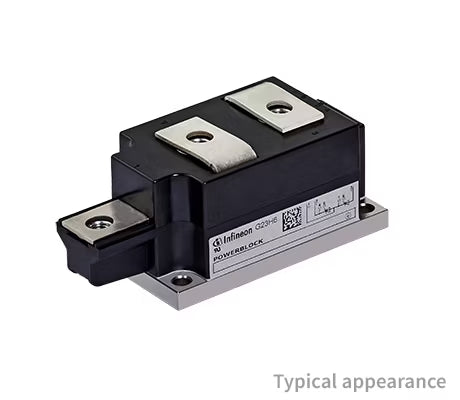

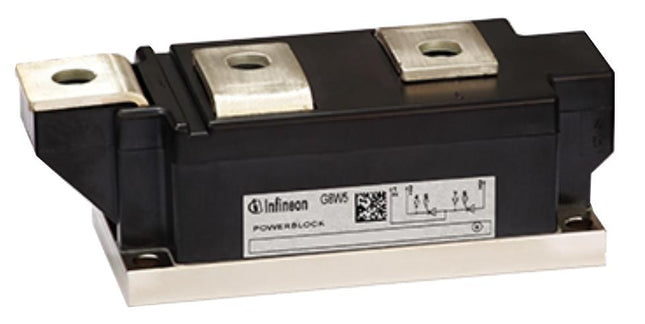

Infineon DD260N16K, Dual Diode Module, 260 Amp, 1600V Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Infineon Part Number DD260N12K Vrrm 1200V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 260 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.5 kA VF(to) 0.7V Tj(max) 150°C rF 0.68mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.17°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 6 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See MDD312-16N1 for alternative IXYS solder contact alternative

Read more less

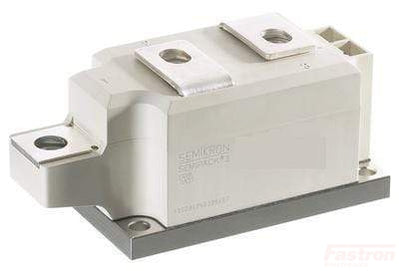

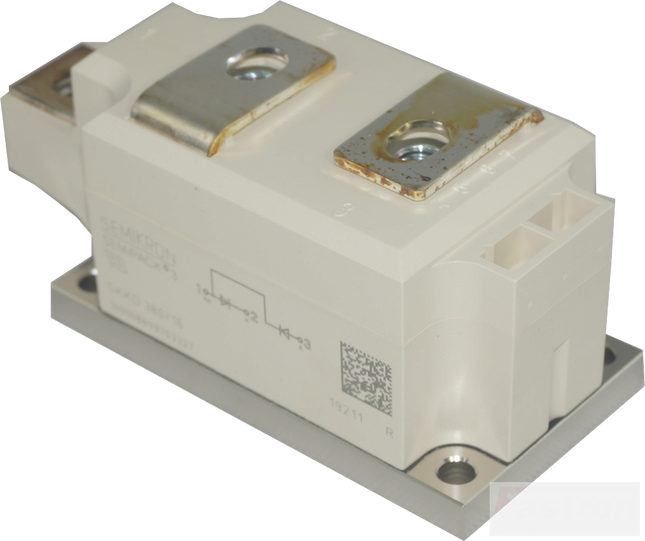

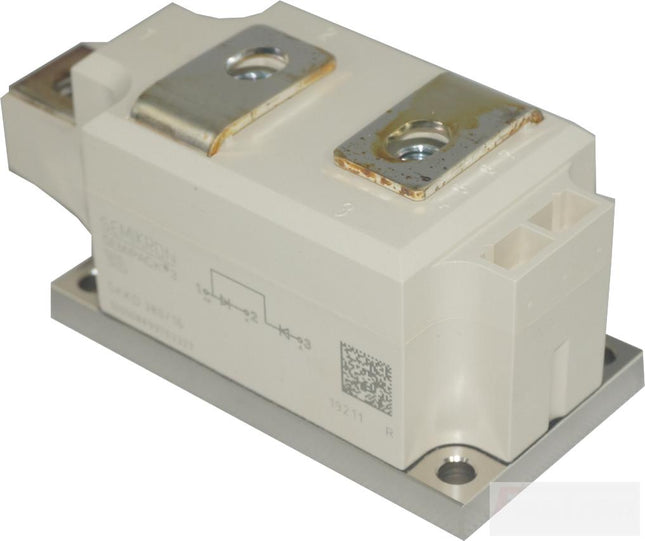

Semikron SKKD 380/16, Dual Diode Module, 380 Amp, 1600V, 50mm package Features Thyristor for line frequency Pressure Contact Technology Planar passivated chip Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Light and Heating control Deep Cycle Specification Semikron Part Number SKKD 380/16 Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 85 Deg C 380 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.6 kA VF(to) 0.8V Tj(max) 150°C rF 0.68mΩ I(gt) @ 25 Deg C 150mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 680g Mounting Torque 7 Nm (13 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Semikron Headquarters Germany Datasheet Product Datasheet

Read more less

Semikron SKKD 380/18, Dual Diode Module, 380 Amp, 1800V, 50mm package Features Thyristor for line frequency Pressure Contact Technology Planar passivated chip Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Light and Heating control Deep Cycle Specification Semikron Part Number SKKD 380/18 Vrrm 1800V Diode Configuration Dual Diode Module IF(av) @ 85 Deg C 380 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.6 kA VF(to) 0.8V Tj(max) 150°C rF 0.68mΩ I(gt) @ 25 Deg C 150mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 680g Mounting Torque 7 Nm (13 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Semikron Headquarters Germany Datasheet Product Datasheet

Read more less

Semikron SKKD 380/22 H4, Dual Diode Module, 380 Amp, 2200V, 50mm package Features Thyristor for line frequency Pressure Contact Technology Planar passivated chip Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Light and Heating control Deep Cycle Specification Semikron Part Number SKKD 380/22 H4 Vrrm 2200V Diode Configuration Dual Diode Module IF(av) @ 85 Deg C 380 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.6 kA VF(to) 0.8V Tj(max) 150°C rF 0.68mΩ I(gt) @ 25 Deg C 150mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 680g Mounting Torque 7 Nm (13 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less

Techsem MDC250-36-413F3, Dual Diode Module, 250 Amp, 3600V, 50mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MDC250-36-413F3 Vrrm 3600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 250 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.5 kA VF(to) 0.95V Tj(max) 150°C rF 0.87mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 860g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 6 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives See MDC300-36-415F3 for larger package
