Dual Diode Modules
-
MDD95-16N1B, 95 Amp, 1600V, Dual Diode Module
Westcode-IXYS-Littlefuse MDD95-16N1B, 95 Amp, 1600V, Dual Diode Module Features Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification IXYS Part Number MDD95-16N1B Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 120 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 2.8 kA VF(to) 0.75V Tj(max) 150°C rF 1.94mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.26°C/W R th(c-h) 0.20°C/W Weight 76g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 12 Certification UL Listed, ROHS IXYS Headquarters United States Datasheet Product Datasheet Alternatives See DD100N16S for IXYS replacement. See DD104N14KOF for Infineon Pressure Contact Alternative
$70.27
$82.92 inclGST -
DD180N22S, Dual Diode Module, 180 Amp, 2200V
Free Aus Post Shipping for $300 SpendInfineon DD180N22S, Dual Diode Module, 180 Amp, 2200V Features Solder-Solder Technology Electrically insulated base plate Industrial standard package 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Specification Infineon Part Number DD180N22S Vrrm 2200V Diode Configuration Dual Diode Module IF(av) @ 85 Deg C 192 Amp Package Size W:34mm L:94mm D:30mm Itsm 5.75 kA VF(to) 0.85V Tj(max) 130°C rF 0.95mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.16°C/W R th(c-h) 0.08°C/W Weight 165g Mounting Torque 5 Nm (5 Nm Terminals) Factory Pack Qty 8 Certification UL Listed Infineon Headquarters Germany Datasheet Product Datasheet
-
SKKD81/22 H4, Dual Diode Module, 81 Amp, 2200V
Semikron SKKD81/22 H4, Dual Diode Module, 81 Amp, 2200V Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikron Part Number SKKD81/22 H4 Vrrm 2200V Diode Configuration Dual Diode Module IF(av) @ 112 Deg C 100 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Tj(max) 150°C I(gt) @ 25 Deg C N/A Terminals M5 Screw Hole Centres 80mm (M6) Weight 75g Mounting Torque 4 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin India Datasheet Product Datasheet
$85.00
$100.30 inclGST -
DD200KB40, 200 Amp, 400V Dual Diode Module
Free Aus Post Shipping for $300 SpendSanrex DD200KB40, 200 Amp, 400V Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 2500V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Sanrex Part Number DD200KB40 Vrrm 400V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 200 Amp Package Size W:34mm L:94mm D:52mm Itsm 5 kA VF(to) 1.1V Tj(max) 150°C rF Not Published Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.17°C/W R th(c-h) 0.10°C/W Weight 240g Mounting Torque 4.7 Nm (4.7 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Sanrex Headquarters Japan Datasheet Product datasheet Alternatives See MDD172-16N1 for alternative IXYS solder contact alternative
-
201CNQ050PbF, Schottky Diode Rectifier Module, 200 Amp, 50V, TO-244 Package
Free Aus Post Shipping for $300 SpendVishay 201CNQ050PbF, Schottky Diode Rectifier Module, 200 Amp, 50V, TO-244 Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 2500V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Vishay Part Number 201CNQ050PbF Vrrm 50V Diode Configuration Schottky Diode Rectifier - Common Cathode IF(av) @ 125 Deg C (50% Duty) 200 Amp per device, 100 Amp per leg Package Size W:20mm L:93mm D:16.5mm Itsm 16 kA VF(to) 0.67 -> 0.81V Tj(max) 175°C rF Not Published Terminals 1/4"-20UNC Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.19°C/W R th(c-h) 0.10°C/W Weight 68g Mounting Torque 40 Nm (40 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Vishay Headquarters Germany Datasheet Product datasheet
-
DD160KB160, 160 Amp, 1600V Dual Diode Module
Free Aus Post Shipping for $300 SpendSanrex DD160KB160, 160 Amp, 1600V Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 2500V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Sanrex Part Number DD160KB160 Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 160 Amp Package Size W:26mm L:94mm D:52mm Itsm 3.2 kA VF(to) 1.35V Tj(max) 150°C rF Not Published Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.3°C/W R th(c-h) Weight 170g Mounting Torque 4.7 Nm (4.7 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Sanrex Headquarters Japan Datasheet Product datasheet Alternatives See MDD172-16N1 for alternative IXYS solder contact alternative
-
MDC110-16-223F3, Dual Diode Module, 110 Amp, 1600V, 22mm Package
Techsem MDC110-16-223F3, Dual Diode Module, 110 Amp, 1600V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MDC110-16-223F3 Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 110 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.6 kA VF(to) 0.8V Tj(max) 150°C rF 1.74mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.27°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China Datasheet Product Datasheet Alternatives See VSKE91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part
$99.00
$116.82 inclGST -

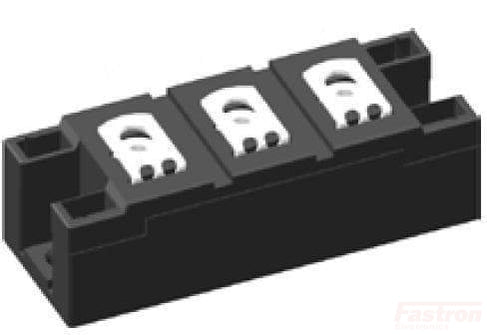

MDD172-18N1, Dual Diode Module, 170 Amp, 1800V, 34mm package
Westcode-IXYS-Littlefuse MDD172-18N1, Dual Diode Module, 170 Amp, 1800V, 34mm package Features Direct copper bonded Al2 O3 -ceramic base plate Electrically insulated base plate Planar passivated chips International standard package 3600V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MDD172-18N1 Vrrm 1800V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 190 Amp Package Size W:34mm L:94mm D:30mm Itsm 6.6 kA VF(to) 0.8V Tj(max) 150°C rF 0.8mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.21°C/W R th(c-h) 0.10°C/W Weight 120g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 8 Certification UL Listed IXYS Headquarters United States Datasheet Product Datasheet Alternatives See DD180N16S or MDD172-16N1 for Solder Contact, or DD171N12K Infineon Pressure Contact Technology replacement
$107.00
$126.26 inclGST -
BKR400AB10, Schottky Diode Rectifier Module, 400 Amp, 100V, NON Isolated BRA PACK
Sanrex BKR400AB10, Schottky Diode Rectifier Module, 400 Amp, 100V, NON Isolated BRA PACK Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 2500V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Sanrex Part Number BKR400AB10 Vrrm 100V Diode Configuration Schottky Diode Rectifier - Common Cathode IF(av) @ 125 Deg C (50% Duty) 400 Amp per device, 200 Amp per leg Package Size W:20mm L:93mm D:16.5mm Itsm 3.62 kA VF(to) 0.78 -> 0.93V Tj(max) 150°C rF Not Published Terminals 1/4"-20UNC Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) R th(c-h) 0.20°C/W Weight 68g Mounting Torque 40 Nm (40 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Sanrex Headquarters Japan Datasheet Product datasheet
$107.00
$126.26 inclGST -
DD200KB160, 200 Amp, 1600V Dual Diode Module
Sanrex DD200KB160, 200 Amp, 1600V Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 2500V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Sanrex Part Number DD200KB160 Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 200 Amp Package Size W:34mm L:94mm D:52mm Itsm 5 kA VF(to) 1.1V Tj(max) 150°C rF Not Published Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.17°C/W R th(c-h) 0.10°C/W Weight 240g Mounting Torque 4.7 Nm (4.7 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Sanrex Headquarters Japan Datasheet Product datasheet Alternatives See MDD172-16N1 for alternative IXYS solder contact alternative
$110.22
$130.06 inclGST -
MDD172-16N1, Dual Diode Module, 172 Amp, 1600V
Westcode-IXYS-Littlefuse MDD172-16N1, Dual Diode Module, 172 Amp, 1600V Features Direct copper bonded Al2 O3 -ceramic base plate Electrically insulated base plate Planar passivated chips International standard package 3600V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MDD172-16N1 Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 190 Amp Package Size W:34mm L:94mm D:30mm Itsm 6.6 kA VF(to) 0.8V Tj(max) 150°C rF 0.8mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.21°C/W R th(c-h) 0.10°C/W Weight 120g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 8 Certification UL Listed IXYS Headquarters United States Datasheet Product Datasheet Alternatives See DD180N16S for Solder Contact, or DD171N12K Infineon Pressure Contact Technology replacement
$117.00
$138.06 inclGST -
MDK110-16-223F3, Dual Diode Module, Common Cathode, 110 Amp, 1600V, 22mm Package
Techsem MDK110-16-223F3, Dual Diode Module, Common Cathode, 110 Amp, 1600V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MDK110-16-223F3 Vrrm 1600V Diode Configuration Dual Diode Module, Common Cathode IF(av) @ 100 Deg C 110 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.6 kA VF(to) 0.8V Tj(max) 150°C rF 1.74mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.27°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China Datasheet Product Datasheet Alternatives See VSKC91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part
$119.00
$140.42 inclGST
