Dual Diode Modules

DFM1000EXM33-TS000, Fast Triple Diode Module, 1000 Amp, 3300V, 140mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 6000V Isolation 140mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Dynex Part Number DFM1000EXM33-TS000 Vrrm 3300V Diode Configuration Fast Dual Diode Module Isolated IF(av) 1000 Amp Package Size W:140mm L:190mm D:38mm V(ISOL) 2.5V Tj(max) 150°C Terminals M8 Bolt Hole Centres 124mm x 171mm (M6) Gate Terminals N/A R th(j-c) 24°C/W R th(c-h) 6°C/W Weight 1.4kg Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Dynex Headquarters UK Datasheet Product Datasheet

Read more less

DFM1200EXM45-TS000, Fast Triple Diode Module, 1200 Amp, 4500V, 140mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 6000V Isolation 140mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Dynex Part Number DFM1000EXM45-TS000 Vrrm 4500V Diode Configuration Fast Dual Diode Module Isolated IF(av) 1200 Amp Package Size W:140mm L:190mm D:38mm V(ISOL) 2.5V Tj(max) 150°C Terminals M8 Bolt Hole Centres 124mm x 171mm (M6) Gate Terminals N/A R th(j-c) 24°C/W R th(c-h) 6°C/W Weight 1.4kg Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Dynex Headquarters UK Datasheet Product Datasheet

Read more less

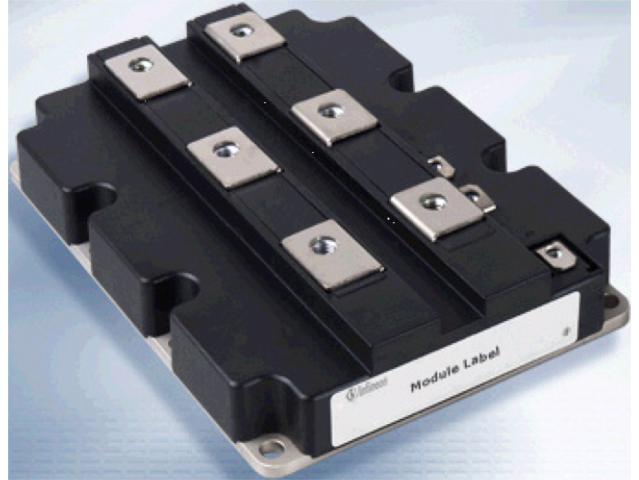

Infineon DD400S33K2C, Fast Dual Diode Module, 400 Amp, 3300V, 130mm Package Module Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 6000V Isolation 130mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Infineon Part Number DD400S33K2C Vrrm 3300V Diode Configuration Fast Dual Diode Module Isolated IF(av) 400 Amp Package Size W:130mm L:140mm D:78mm V(ISOL) 2.6V Tj(max) 150°C rF 0.39mΩ Terminals M8 Bolt Hole Centres 124mm x 61.2mm (M6) Gate Terminals N/A R th(j-c) 51°C/W R th(c-h) 12°C/W Weight 1kg Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives DD500S33HE3

Read more less

Infineon DD800S33K2C, Fast Dual Diode Module, 800 Amp, 3300V, 130mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 6000V Isolation 130mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Infineon Part Number DD800S33K2C Vrrm 3300V Diode Configuration Fast Dual Diode Module Isolated IF(av) 800 Amp Package Size W:130mm L:140mm D:78mm V(ISOL) 2.8V Tj(max) 150°C rF 0.34mΩ Terminals M8 Bolt Hole Centres 124mm x 61.2mm (M6) Gate Terminals N/A R th(j-c) 26°C/W R th(c-h) 12°C/W Weight 1kg Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives DD500S33HE3

Read more less
