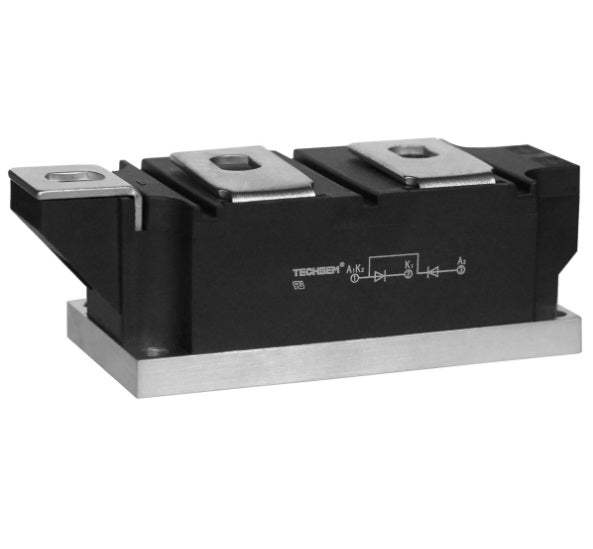

MDC600-16-416F3, Dual Diode Module, 600 Amp, 1600V, 60mm Base Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MDC600-16-416F3 Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 600 Amp Package Size W:50mm L:101mm D:52mm Itsm 19 kA VF(to) 0.75V Tj(max) 150°C rF 0.28mΩ Terminals M10 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.65 R th(c-h) 0.024 Weight 1490g Mounting Torque 4.5-6 Nm (10-12 Nm Terminals) Factory Pack Qty 2 Certification ROHS Techsem Headquarters China Datasheet Datasheet Alternatives DD600N16K

Read more less

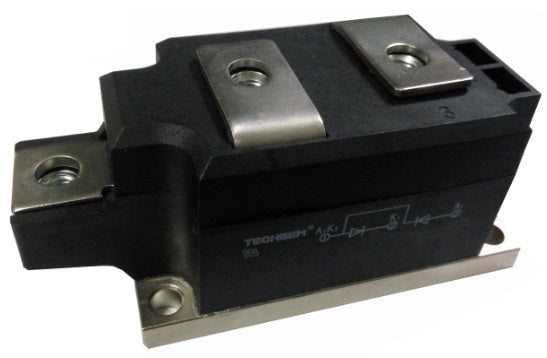

Techsem MDC300-36-415F3, Dual Diode Module, 300 Amp, 3600V, 62mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 62mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Techsem Part Number MDC300-36-413F3D Vrrm 3600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 300 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.1 kA VF(to) 0.75V Tj(max) 150°C rF 0.56mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.13°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 6 Certification ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives See MDD312-16N1 for alternative IXYS solder contact alternative

Read more less

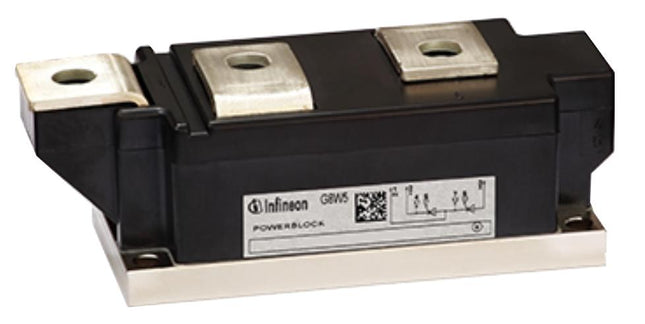

Infineon DD600N12K, Dual Diode Module, 600 Amp, 1200V, 60mm Base Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 60mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Infineon Part Number DD600N12K Vrrm 1200V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 600 Amp Package Size W:60mm L:101mm D:52mm Itsm 22 kA VF(to) 0.75V Tj(max) 150°C rF 0.215mΩ Terminals M10 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.078°C/W R th(c-h) 0.02°C/W Weight 900g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS IXYS Headquarters United States Datasheet Product Datasheet Alternatives MDC600-416F3

Read more less

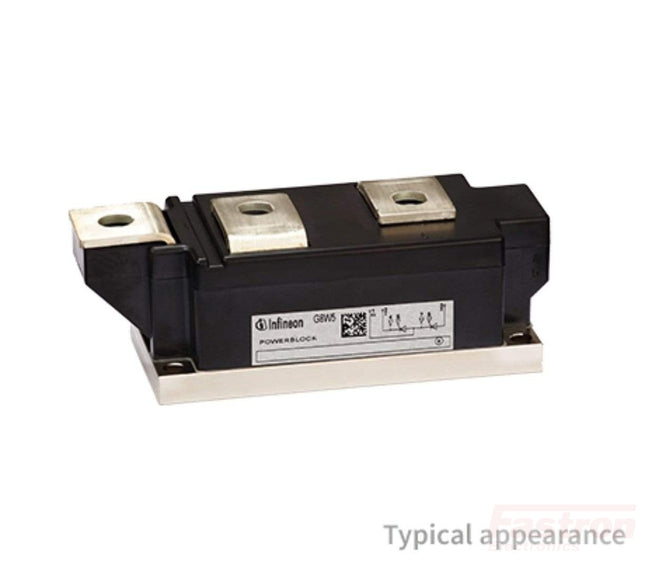

Infineon DD700N22K Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 3600V Isolation 60mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Infineon Part Number DD700N22K Vrrm 2200V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 700 Amp Package Size W:60mm L:144mm D:52mm Itsm 22 kA VF(to) 0.78V Tj(max) 150°C rF 0.185mΩ Terminals M10 Bolt Hole Centres 80mm x 48mm (M6) Gate Terminals N/A R th(j-c) 0.065°C/W R th(c-h) 0.062°C/W Weight 800g Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 3 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See SKKD701/12 for possible alternative

Read more less

Semikron SKKD701/16, Dual Diode Module, 700 Amp, 1600V, 60mm package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 3600V Isolation 60mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Semikron Part Number SKKD701/16 Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 700 Amp Package Size W:60mm L:144mm D:52mm Itsm 25 kA VF(to) 0.7V Tj(max) 150°C rF 0.28mΩ Terminals M10 Bolt Hole Centres 80mm x 48mm (M6) Gate Terminals N/A R th(j-c) 0.034°C/W R th(c-h) 0.01°C/W Weight 1400g Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 3 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See DD700N22K for possible alternative

Read more less

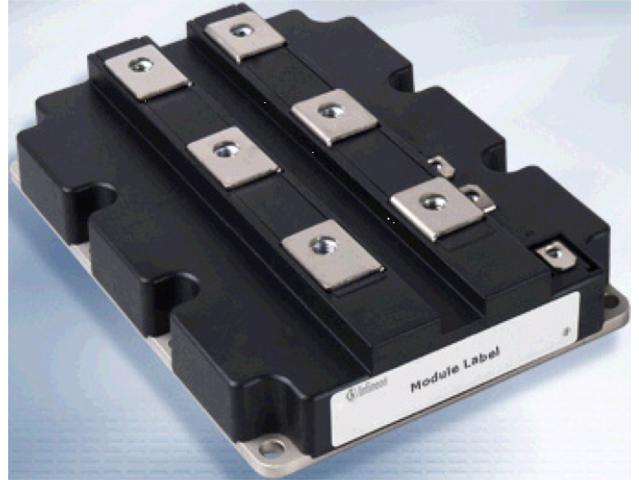

Infineon DD500S33HE3, Fast Dual Diode Module, 500 Amp, 3300V, 130mm Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 6000V Isolation 140mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Infineon Part Number DD500S33HE3 Vrrm 3300V Diode Configuration Fast Dual Diode Module Isolated IF(av) 500 Amp Package Size W:130mm L:140mm D:78mm V(ISOL) 2.6V Tj(max) 150°C rF 0.39mΩ Terminals M8 Bolt Hole Centres 124mm x 61.2mm (M6) Gate Terminals N/A R th(j-c) 51°C/W R th(c-h) 12°C/W Weight 1kg Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives DD400S33K2C
