Techsem MDC70-24-223F3, Dual Diode Module, 70 Amp, 2400V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 22mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MDC70-24-223F3 Vrrm 2400V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 70 Amp Package Size W:22mm L:93mm D:30mm Itsm 2.6 kA VF(to) 0.8V Tj(max) 150°C rF 1.74mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.27°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China Datasheet Product Datasheet Alternatives See VSKD91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part

Read more less

Sanrex MBR600100CT, Schottky Diode Rectifier Module, 600 Amp, 100V, NON Isolated BRA PACK Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 2500V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification GeneSiC Part Number MBR600100CT Vrrm 100V Diode Configuration Schottky Diode Rectifier - Common Cathode IF(av) @ 125 Deg C (50% Duty) 400 Amp per device, 200 Amp per leg Package Size W:20mm L:93mm D:16.5mm Itsm 4.0 kA VF(to) 0.84V Tj(max) 150°C rF Not Published Terminals 1/4"-20UNC Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) R th(c-h) 0.28°C/W Weight 68g Mounting Torque 40 Nm (40 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Datasheet Product datasheet

Read more less

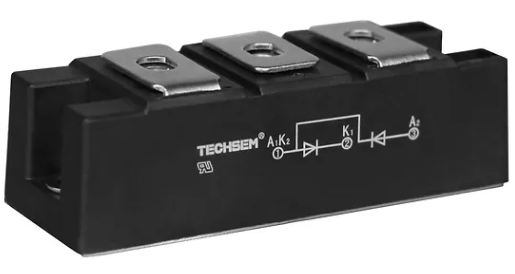

Techsem MDK182-16-216F3, 162 Amp, 1600V, Dual Diode Module, Common Cathode Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MDK182-16-216F3 Vrrm 1600V Diode Configuration Dual Diode Module, Common Cathode IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 6.4 kA VF(to) 0.80V Tj(max) 150°C rF 0.96mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.22°C/W R th(c-h) 0.08°C/W Weight 320g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet

Read more less

Techsem MDC182-16-216F3B, 182 Amp, 1600V, Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MDC182-16-216F3B Vrrm 1600V Diode Configuration Single Diode Module IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 6.4 kA VF(to) 0.80V Tj(max) 150°C rF 0.96mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.22°C/W R th(c-h) 0.08°C/W Weight 320g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet

Read more less

Infineon DD104N16K, Dual Diode Module 104 Amp, 1600V Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Infineon Part Number DD104N16K Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 104 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.9 kA VF(to) 0.7V Tj(max) 150°C rF 2.1mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.195°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MDD95-16 for IXYS or See DD100N16S for Infineon Solder Contact Alternative

Read more less

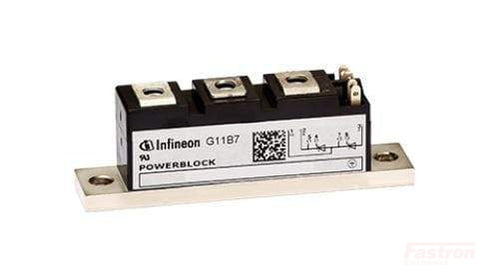

Infineon DD89N14K Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current International standard package 3000V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification infineon Part Number DD89N14K Vrrm 1400V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 89 Amp Package Size W:20mm L:94mm D:30mm Itsm 2.8 kA VF(to) 0.75V Tj(max) 150°C rF 0.215mΩ Terminals M10 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.225°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See DD104N14K for Pressure Contact, and MDD95-16N1B or DD100N16SOF for Solder Bonded Devices

Read more less

Westcode-IXYS-Littlefuse MEA300-06DA, Fast Recovery Epitaxial Diode Dual Module, Common Anode, 304 Amp, 600V Features Direct copper bonded Al2 O3 -ceramic base plate Electrically insulated base plate Planar passivated chips International standard package 3600V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MEA300-06DA Vrrm 600V Diode Configuration Dual Diode Module Common Anode IF(av) @ 100 Deg C 304 Amp Package Size W:34mm L:94mm D:30mm Itsm 2.4 kA VF(to) 0.85V Tj(max) 150°C rF 1.34mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.143°C/W R th(c-h) 0.085°C/W Weight 120g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 8 Certification UL Listed IXYS Headquarters United States   Datasheet Product Datasheet

Read more less

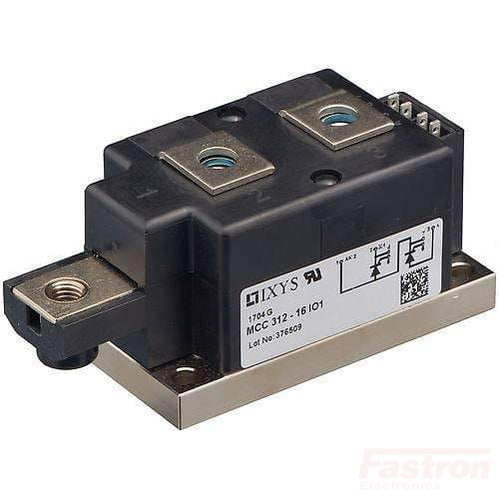

Westcode-IXYS-Littlefuse MDD312-18N1, Dual Diode Module, 310 Amp, 1800V, 50mm package Features Package with DCB ceramic Improved temperature and power cycling Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 50mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification IXYS Part Number MDD312-18N1 Vrrm 1800V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 310 Amp Package Size W:50mm L:115mm D:52mm Itsm 10.8 kA VF(to) 0.8V Tj(max) 150°C rF 0.8mΩ Terminals M8 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 680g Mounting Torque 7 Nm (13 Nm Terminals) Factory Pack Qty 6 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See DD260N12K for Infineon Pressure Contact Technology replacement

Read more less

Infineon DD171N12K Dual Diode Module Features Pressure Contact Technology Electrically insulated base plate International standard package 2500V Isolation 34mm Base Width Applications Power Supplies Deep Power Cycling Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Infineon Part Number DD171N12K Vrrm 1200V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 171 Amp Package Size W:34mm L:94mm D:30mm Itsm 6.6 kA VF(to) 0.75V Tj(max) 150°C rF 0.8mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.26°C/W R th(c-h) 0.06°C/W Weight 310g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See DD180N16S or MDD172-16N1 for Solder Contact, or DD171N12K Infineon Pressure Contact Technology replacement
