Trent I^2t Blade Style Semiconductor Fuse, 350 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4261 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4261 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 59000A^2/s Nominal Current (RMS DC) 350 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 60W Termination Style M10 Indicator for Microswitch YES Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 315 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4260 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4260 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 42000A??/s Nominal Current (RMS DC) 315 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 58W Termination Style M10 Indicator for Microswitch YES Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

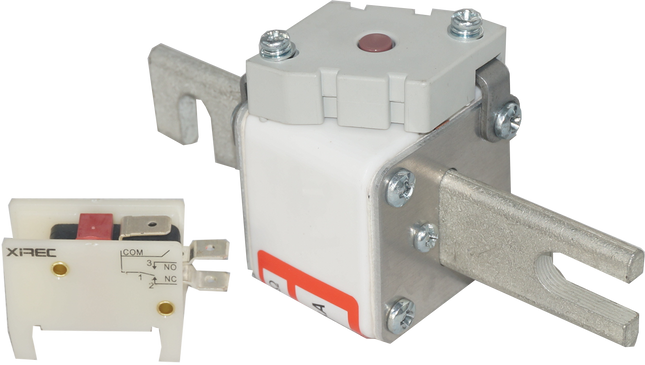

Trent I^2t Blade Style Semiconductor Fuse, 250 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4259 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4259 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 21000A??/s Nominal Current (RMS DC) 250 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 55W Termination Style M10 Indicator for Microswitch YES Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 200 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4258 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4258 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 11500A??/s Nominal Current (RMS DC) 200 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 45W Indicator for Microswitch YES Termination Style M10 Unit Weight 510g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

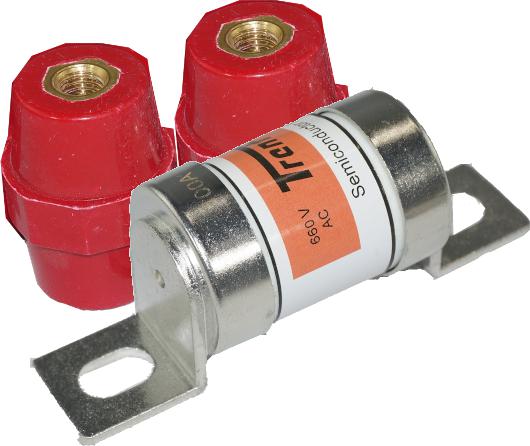

FK-1-250, aR Type Fuse Kit for 200-250 Amp F311 Single Phase Power Controller or VSD Drives Contains: 1 x 250BF 2 x M5x25mm Isolated Standoff Mounting HaRdwaRe Datasheet Product Datasheet Cross Reference ChaRt Insulated Standoffs

Read more less

Trent NBR-FR22GR69V63T + RT18-125L Series 63 Amp 690V Semiconductor I²t gR Fuse & DIN Rail Fuse Holder Cartridge Style 22 x 58mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V63T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 3080 A²/s Nominal Current (RMS + DC) 63 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent 375BBF Series 690V, 375 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 375BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 124000 A²/s Nominal Current (RMS + DC) 375 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 62W Termination Style M6 Unit Weight 400g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 275BBF Series 690V, 275 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 275BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating 43000 A²/s Nominal Current (RMS + DC) 275 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 62W Termination Style M6 Unit Weight 400g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent NBR-CH14/UQ/50A/690V + RT18-63L, 50 Amp 690VAC Semiconductor I²t gR Fuse Cartridge Style 51 x 14mm with DIN Rail Fuse Holder Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/40A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 1800 A²/s Nominal Current (RMS + DC) 50 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-63L Datasheet

Read more less

Trent NBR-CH14/UQ/6A/690V + RT18-63L Series 6 Amp 690V Semiconductor I²t gR Fuse & Din Rail Fuse Holder Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 63 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/6A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 10 A²/s Nominal Current (RMS + DC) 6 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet Product Datasheet RT18-63L

Read more less

Trent 200AAF Series 690V, 200 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Bussman 200FEE British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 200AAF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 25500A²/s Nominal Current (RMS + DC) 200 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 90.2 x 30 x 36.7mm Hole Centers 62.4 - 76mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 28W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 250EU-S-500V-120kA, 250EU-S-500V-120kA Series 500V Semiconductor I²t Fuse NH1 Style Features Square Body DIN 43 653 Wide Range of I²t Ratings up to 2000 Amp Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 250EU-S-500V-120kA Fuse Type I²t AR Class HRC Nominal Voltage 500VAC @ 50Hz I²t Rating (660V) Nominal Current (RMS + DC) 250 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 135 x 65 x 52mm (NH1) Indicator Tag Mounting Style Fuse Holder Operating Temperature Range -40°C / 125°C Watts Dissipation 90WW Termination Style NH1 Fuse Holder Unit Weight 400g Factory Pack Qty 3   Datasheet Product Datasheet
