Trent NBR-FR22GR69V125T + RT18-125L Series 125 Amp 690V Semiconductor I²t gR Fuse & DIn Rail Fuse Holder Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V125T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 8100 A²/s Nominal Current (RMS + DC) 125 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 22.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent NBR-FR22GR69V40T + RT18-125L Series 40 Amp 690V Semiconductor I²t Fuse & DIN Rail Fuse Holder Cartridge Style (3pcs) Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V40T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 750 A²/s Nominal Current (RMS + DC) 40 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 9.5W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent NBR Series NBR-FR22GR69V25T + RT18-125L, 25 Amp 690V Semiconductor I²t Fuse & DIN Rail Fuse Holder Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V25T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 410 A²/s Nominal Current (RMS + DC) 25 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

Trent NBR-CH14/UQ/63A/690V + RT18-63L Series 63 Amp 690V Semiconductor I²t gR Fuse & Din Rail Fuse Holder Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 63 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/63A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 2800 A²/s Nominal Current (RMS + DC) 63 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet Product Datasheet RT18-63L

Read more less

Trent NBR-CH14/UQ/40A/690V + RT18-63L 40 Amp 690V Semiconductor I²t gR Fuse Cartridge Style 51 x 14mm with DIN Rail Fuse Holder Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/40A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 750 A²/s Nominal Current (RMS + DC) 40 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-63L Datasheet

Read more less

Rotating Diode for Generators 3/8" 24 UNF 2A Bottom Stud 1/4" Top Stud 70 Amp Anode Stud

Read more less

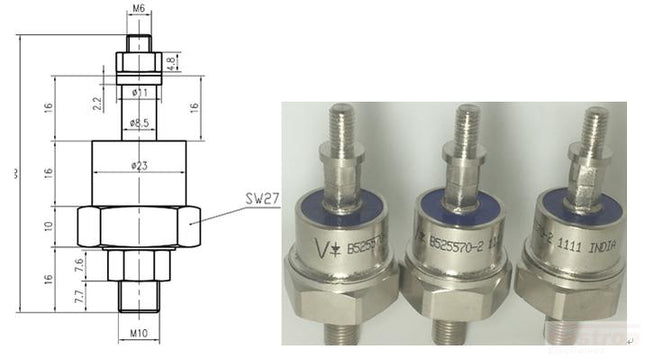

Rotating Diode for Generators 3/8" 24 UNF 2A Bottom Stud 1/4" Top Stud 70 Amp Cathode Stud

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 1250 Amp, 690VAC, Square Body, Size 3, DIN 43 653, 200kA (78mm Hole Centers) F170M6016 Features Square Body, Size 3, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M6016 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 1950000A^2/s Nominal Current (RMS DC) 1250 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 76 x 104 x 76mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 140W Termination Style M10 Unit Weight 700g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 1100 Amp, 690VAC, Square Body, Size 3, DIN 43 653, 200kA (78mm Hole Centers) F170M6015 Features Square Body, Size 3, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M6015 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 130000A^2/s Nominal Current (RMS DC) 1100 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 76 x 104 x 76mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 130W Termination Style M10 Unit Weight 700g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 1000 Amp, 690VAC, Square Body, Size 3, DIN 43 653, 200kA (78mm Hole Centers) F170M6014 Features Square Body, Size 3, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor Protection Battery Fuse Specification Trent Part Number F170M6014 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 945000A^2/s Nominal Current (RMS DC) 1000 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 76 x 104 x 76mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 125W Termination Style M10 Unit Weight 700g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 800 Amp, 690VAC, Square Body, Size 3, DIN 43 653, 200kA (78mm Hole Centers) F170M6012  Features Square Body, Size 3, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M6012 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 465000A^2/s Nominal Current (RMS DC) 800 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 76 x 104 x 76mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 115W Termination Style M10 Unit Weight 700g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 700 Amp, 690VAC, Square Body, Size 3, DIN 43 653, 200kA (78mm Hole Centers) F170M6011 Square Body, Size 3, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M6011 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 300000A^2/s Nominal Current (RMS DC) 700 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 76 x 104 x 76mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 110W Termination Style M10 Unit Weight 700g Factory Pack Qty 10   Datasheet Product Datasheet
