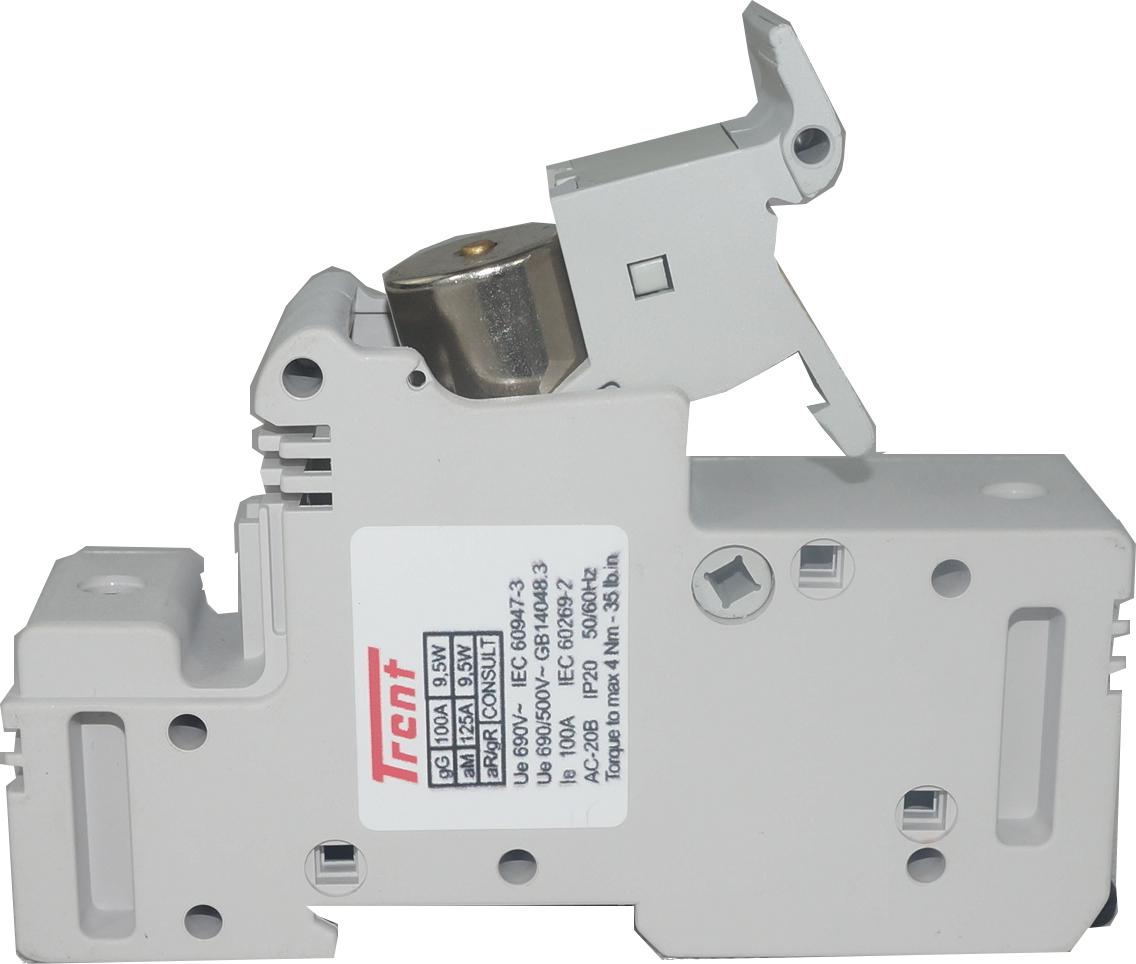

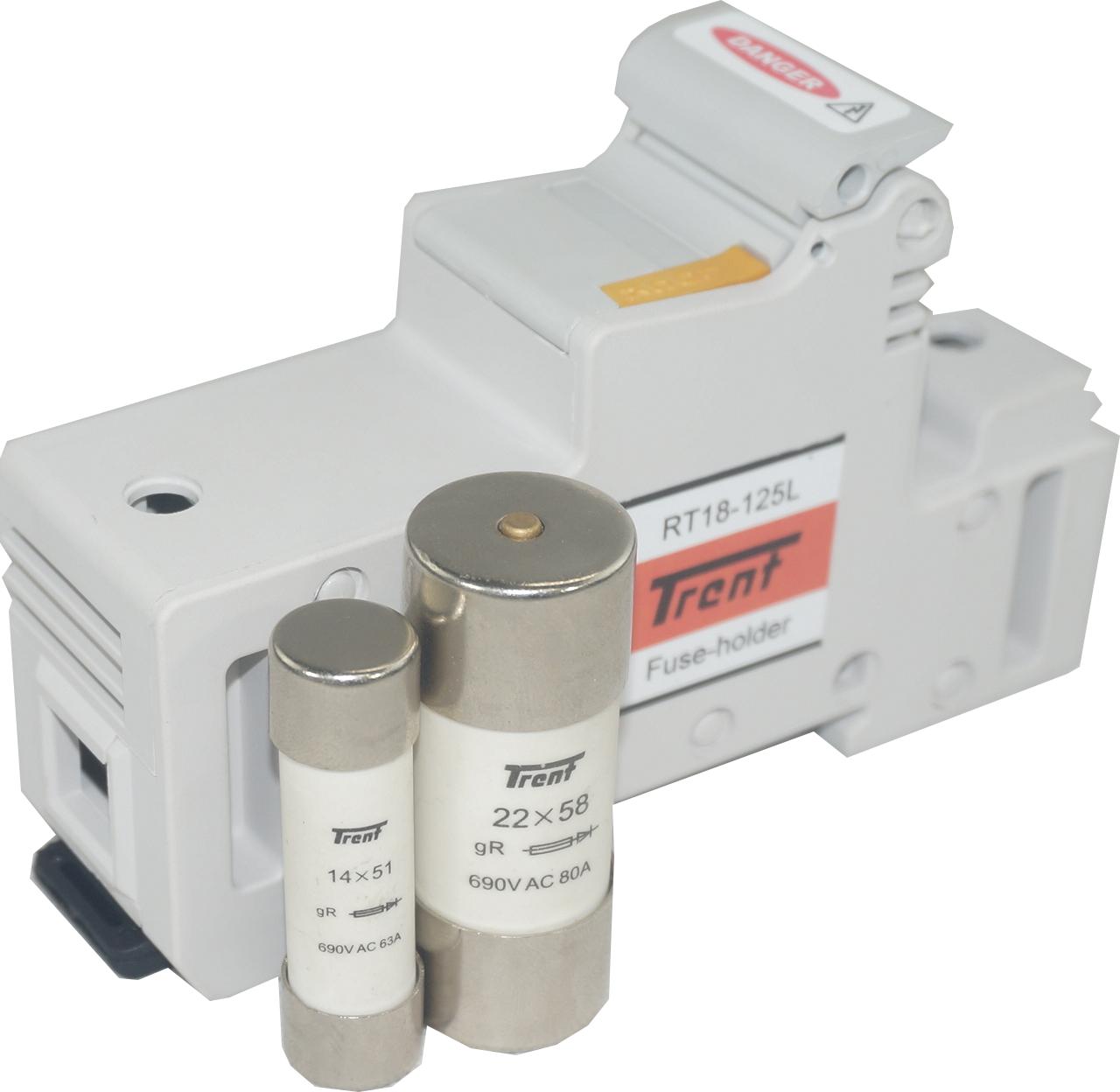

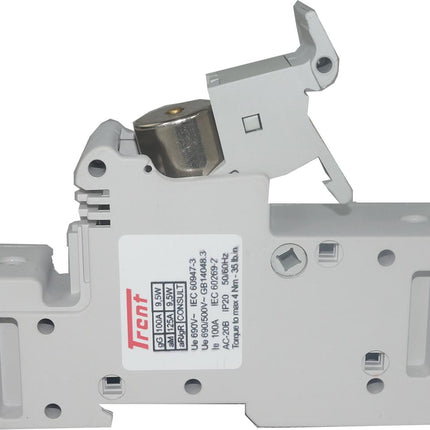

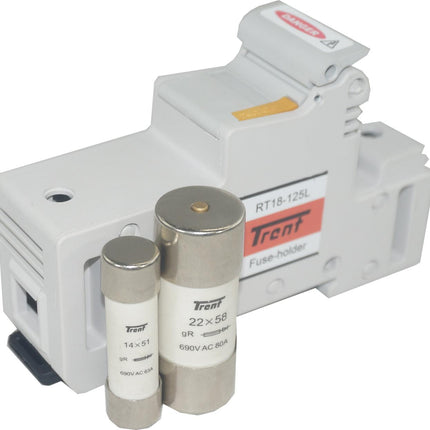

NBR-CH14/UQ/6A/690V + RT18-63L Series 6 Amp 690V Semiconductor I²t gR Fuse & Din Rail Fuse Holder Cartridge Style 51 x 14mm

Trent Part Number	NBR-CH14/UQ/6A/690V + RT18-63L
Fuse Type	I²t gR Class
Nominal Voltage	690VAC @ 50Hz
I²t Rating (Pre-Arcing)	10 A²/s
Nominal Current (RMS + DC)	6 Amp
Tested Breaking Capacity	200kA @ 690VAC

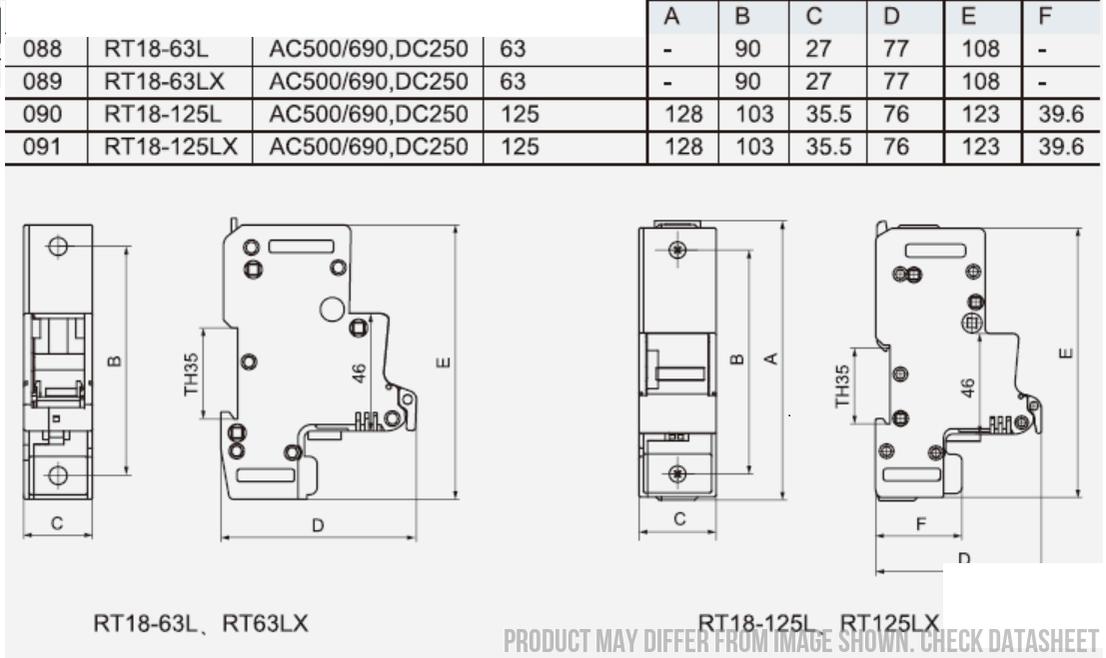

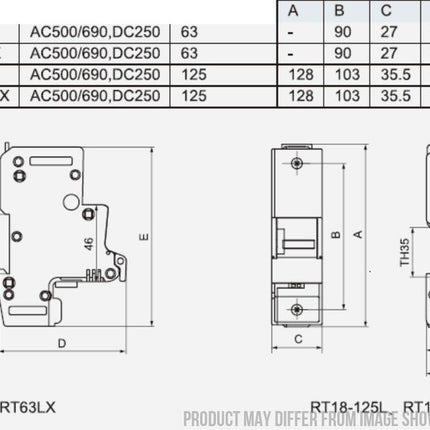

Dimensions	108mm x 77mm x 22mm
Fuse Holder	RT18-63L
Mounting Style	Din Rail Mount
Operating Temperature Range	-40°C / 125°C
Watt Loss	13.8W
DC Breaking Capacity	50kA
Unit Weight	42g
Factory Pack Qty	10



• Product Datasheet
• RT18-63L
