Trent F150M1000-250, 250 Amp, 1000VAC/590VDC 100kA Semiconductor I²t Fuse Size 70 aR to replace Mersen PC70UD13C250D1A Features Square Body Size 70 aR Wide Range of I²t Ratings up to 2000 Amp Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse DC Rectifier Output Fuse Specification Trent Part Number F150M1000-250 Fuse Type I²t AR Class HRC Nominal Voltage 1000VAC @ 50Hz, 590VDC I²t Rating (660V) Nominal Current (RMS + DC) 250 Amp Tested Breaking Capacity 100kA @ 1000VAC/590VDC Dimensions 140 x 45 x 60mm(80mm with microswitch) Indicator Tag + Microswitch Mounting Style Fuse Holder Operating Temperature Range -40°C / 125°C Watts Dissipation 90W Termination Style Size 70 aR (110MM Hole centres) Unit Weight 400g Factory Pack Qty 3   Datasheet Product Datasheet

Read more less

Trent 500NBBF, Semiconductor Fuse, 250VAC, 500 Amp I²t Fuse, aR BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 500NBBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 120000 A²/s Nominal Current (RMS + DC) 500 Amp Tested Breaking Capacity 100kA @ 250VAC Dimensions 82 x 37.3 x 70.4mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 54W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 125AF 690VAC 125 Amp, aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Bussmann 100FE, ETI BS17UQ/63/100A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 125AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 7500 A²/s I²t Rating (IP > 30IN) 9940 A²/s Nominal Current (RMS + DC) 125 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 28.5W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 275BF Series 660V, 275 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/275 B097176, Bussmann 315FM ETI BS38UQ/83/315A/690V 004750640 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 275BF Fuse Type I²t aR Class Nominal Voltage 660VAC @ 50Hz I²t Rating 125000 A²/s Nominal Current (RMS + DC) 300 Amp Tested Breaking Capacity 200kA @ 660VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 43W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 900 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4269 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4267 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 850000A^2/s Nominal Current (RMS DC) 900 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 100W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 800 Amp, 690VAC, NH Style, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4268 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4267 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 725000A^2/s Nominal Current (RMS DC) 800 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 95W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 700 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4267 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplIications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4267 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 465000A^2/s Nominal Current (RMS DC) 700 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 85W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 600 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4266 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4266 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 350000A^2/s Nominal Current (RMS DC) 600 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 75W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 550 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4265 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4265 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 170000A^2/s Nominal Current (RMS DC) 550 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 75W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 500 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4264 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4264 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 170000A^2/s Nominal Current (RMS DC) 500 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 72W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 450 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4263 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4263 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 120000A??/s Nominal Current (RMS DC) 450 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 70W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

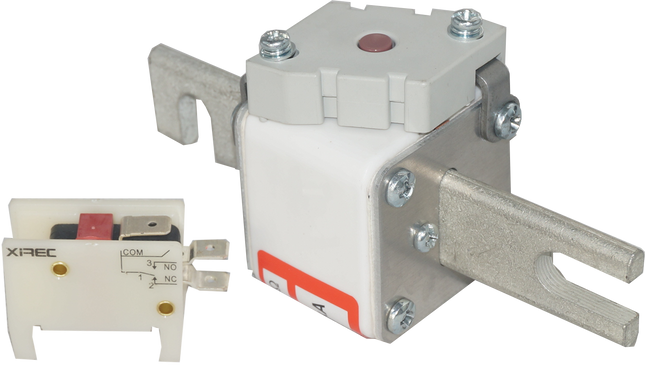

Trent I^2t Blade Style Semiconductor Fuse, 400 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4262 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4262 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 91500A^2/s Nominal Current (RMS DC) 400 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 65W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less
