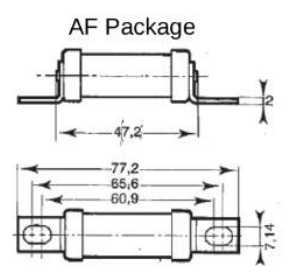

Trent 100AF Series 690V, 100 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Bussmann 100FE, ETI BS17UQ/63/100A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 100AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 4800 A²/s I²t Rating (IP > 30IN) 6200 A²/s Nominal Current (RMS + DC) 100 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 25W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 200NBF, 690V, 200 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 200NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 16400 A²/s Nominal Current (RMS + DC) 200 Amp Tested Breaking Capacity 100kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 27W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 100NBF, 690V, 100 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 100NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 3060 A²/s Nominal Current (RMS + DC) 100 Amp Tested Breaking Capacity 100kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 27W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 150NBF, 690V, 100 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 150NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 7400 A²/s Nominal Current (RMS + DC) 150 Amp Tested Breaking Capacity 100kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 27W Termination Style M6 Unit Weight 170g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 250NBF, 690V, 250 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 250NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 30000 A²/s Nominal Current (RMS + DC) 250 Amp Tested Breaking Capacity 100kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 33W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 350NBF Series 690V, 350 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 350NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 74000 A²/s Nominal Current (RMS + DC) 350 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 42W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent NBF Series 250VAC, 400 Amp Semiconductor I²t Fuse aR BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 400NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 128000 A²/s Nominal Current (RMS + DC) 400 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 47W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent NBF Series 250V, 450 Amp Semiconductor I²t Fuse, aR BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 450NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 170000 A²/s Nominal Current (RMS + DC) 450 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 55W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

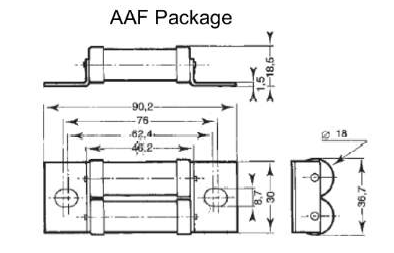

Trent 100AAF Series 690V, 100 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URT 217/110 B099959, 6.9 URT 217/90 A099958, Bussman 110EET, ETI BS17D/70/110A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 100AAF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 5450 A²/s I²t Rating (IP > 30IN) 6850 A²/s Nominal Current (RMS + DC) 100 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 90.2 x 30 x 36.7mm Hole Centers 62.4 - 76mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 25W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

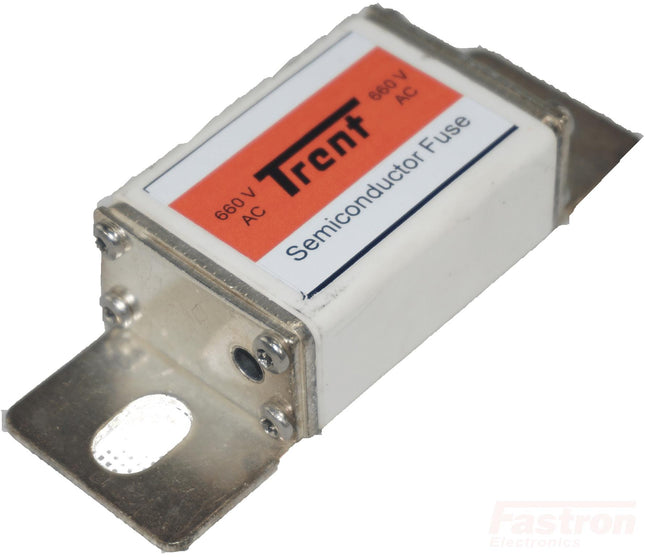

Trent 110AAF Series 690V, 110 Amp aR Semiconductor I²t Fuse BS88 Style 200kA Breaking Features Equivalent to Mersen 6.9 URT 217/110 B099959, 6.9 URT 217/90 A099958, Bussman 110EET, ETI BS17D/70/110A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 110AAF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 5450 A²/s I²t Rating (IP > 30IN) 6850 A²/s Nominal Current (RMS + DC) 100 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 90.2 x 30 x 36.7mm Hole Centers 62.4 - 76mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 25W Termination Style M6 Unit Weight 61g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

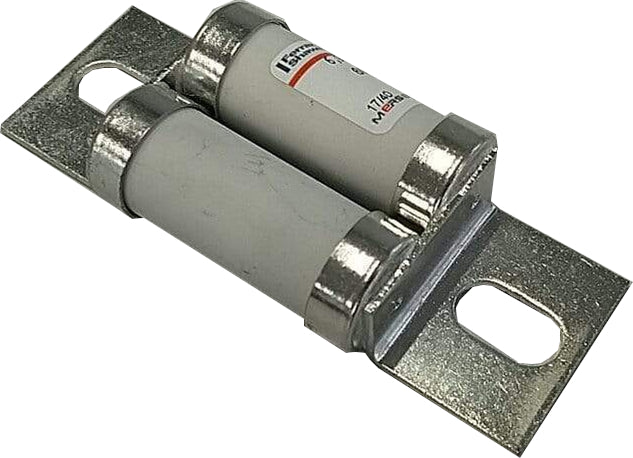

6.9 URT 217/110, 110Amp, 690V Semiconductor Protection Fuse Datasheet Product Datasheet

Read more less

Trent 125AF 690VAC 125 Amp, aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Bussmann 100FE, ETI BS17UQ/63/100A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 125AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 7500 A²/s I²t Rating (IP > 30IN) 9940 A²/s Nominal Current (RMS + DC) 125 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 28.5W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less
