Trent 50AF Series 690V, 50 Amp Semiconductor I²t Fuse, aR BS88 Style Features Equivalent to Mersen 6.9 URS 17/50 P075890, Bussmann 50ET, ETI BS17UQ/63/50A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 50AF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 1000 A²/s I²t Rating (IP > 30IN) 1420 A²/s Nominal Current (RMS + DC) 50 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 12.6W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 55AF Series 690V, 55 Amp Semiconductor I²t Fuse, aR BS88 Style Features Equivalent to Mersen 6.9 URS 17/55 Q075891, Bussmann 56ET, ETI BS17UQ/63/56A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 55AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 1380 A²/s I²t Rating (IP > 30IN) 1970 A²/s Nominal Current (RMS + DC) 55 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 13.3W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

6.9 URS 17/25, 25Amp, 690V Semiconductor Protection Fuse Product Datasheet

Read more less

2.5 URZ 17/150, 150 Amp, 250V Semiconductor Protection Fuse Product Datasheet

Read more less

6.9 URS 17/35, 35Amp, 690V Semiconductor Protection Fuse Product Datasheet

Read more less

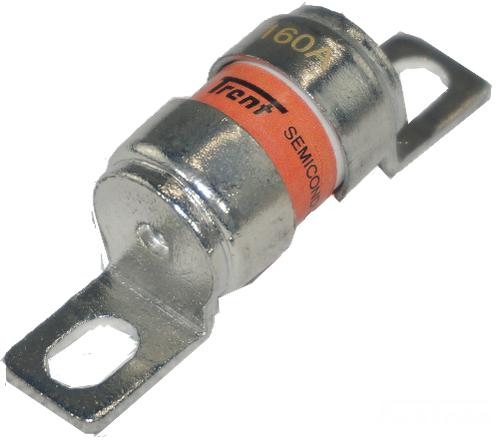

Trent 180NAF Series 250V, 180 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 2.5 URZ 17/180 N097532, ETI BS17UQ/41/180A/240V 004750131 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 180NAF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 17500 A²/s Nominal Current (RMS + DC) 180 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 54 x 18mm Hole Centers 38 x 42.8mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 17W Termination Style M6 Unit Weight 30g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

6.9 URS 17/55, 55Amp, 690V, Semiconductor Protection Fuse Product Datasheet

Read more less

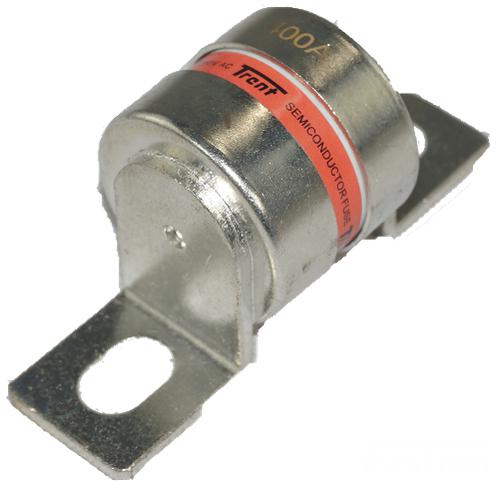

Trent NBF Series 250V, 60 Amp Semiconductor I²t Fuse BS88 Style, aR Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 60NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 900 A²/s Nominal Current (RMS + DC) 60 Amp Tested Breaking Capacity 100kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 11W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 75AF Series 690V, 75 Amp Semiconductor I²t Fuse BS88 Style, aR Features Equivalent to Mersen 6.9 URS 17/75 S075893, Bussmann 80ET, ETI BS17UQ/63/80A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 75AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 3350 A²/s I²t Rating (IP > 30IN) 4630 A²/s Nominal Current (RMS + DC) 75 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 14.4W Termination Style M6 Unit Weight 61g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

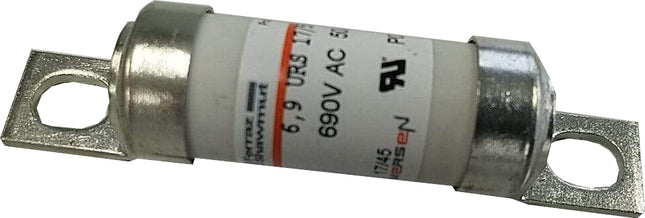

6.9 URS 17/50, 50Amp, 690V Semiconductor Protection Fuse Datasheet Product Datasheet

Read more less

Trent 80AF Series 660V, 80 Amp Semiconductor I²t Fuse BS88 Style, aR Features Equivalent to Mersen 6.9 URS 17/80 T075894, Bussmann 80ET, ETI BS17UQ/63/80A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 80AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 3900 A²/s I²t Rating (IP > 30IN) 5700 A²/s Nominal Current (RMS + DC) 80 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 15.8W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

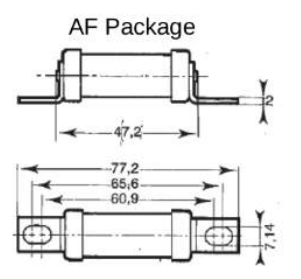

Trent 90AF Series 660V, 90 Amp Semiconductor I²t Fuse BS88 Style, aR Features Bussmann Equivalent FE90, ETI BS17UQ/63/90A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 90AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 3600 A²/s I²t Rating (IP > 30IN) 5130 A²/s Nominal Current (RMS + DC) 90 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 22.8W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less
