Trent 90NAF Series 690V, 90 Amp Semiconductor I²t Fuse BS88 Style, aR Features Equivalent to Mersen 2.5 URGS 17/80 Z085559, ETI BS17UQ/41/80A/240V 004750119 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 90NAF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 3200 A²/s Nominal Current (RMS + DC) 90 Amp Tested Breaking Capacity 100kA @ 250VAC Dimensions 54 x 18mm Hole Centers 38 x 42.8mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 14W Termination Style M6 Unit Weight 30g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

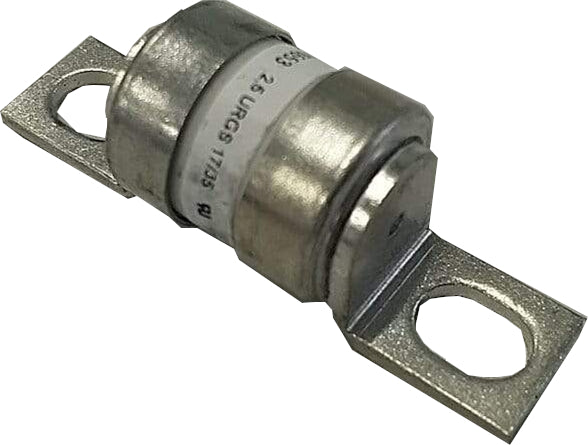

2.5 URGS 17/60, 63 Amp, 250V Semiconductor Protection Fuse Product Datasheet

Read more less

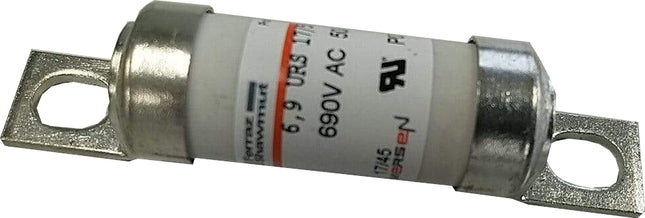

6.9 URS 17/16, 16Amp, 690V Semiconductor Protection Fuse Datasheet Product Datasheet

Read more less

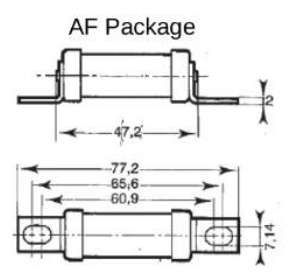

Trent 15AF Series 690V, 15 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 15AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 55 A²/s I²t Rating (IP > 30IN) 95 A²/s Nominal Current (RMS + DC) 15 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 4.8W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 30AF Series 690V, 30 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URS 17/32 K075886, Bussmann 32ET, ETI BS17UQ/63/32A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 30AF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 400 A²/s I²t Rating (IP > 30IN) 570 A²/s Nominal Current (RMS + DC) 30 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 8.6W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 40AF Series 660V, 40 Amp Semiconductor I²t Fuse, aR BS88 Style Features Equivalent to Mersen 6.9 URS 17/40 M075888, Bussmann 40ET, ETI BS17UQ/63/40A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 40AF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 760 A²/s I²t Rating (IP > 30IN) 1080 A²/s Nominal Current (RMS + DC) 40 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 10.5W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

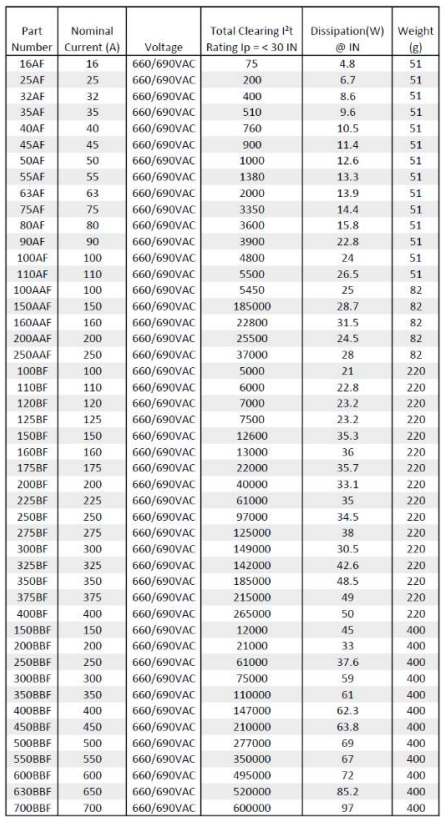

Trent 150NAF Series 250V, 150 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 2.5 URZ 17/150 W085556, ETI BS17UQ/41/160A/240V 004750128 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 150NAF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 9590 A²/s Nominal Current (RMS + DC) 150 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 54 x 18mm Hole Centers 38 x 42.8mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 14W Termination Style M6 Unit Weight 30g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 25AF Series 690V, 25 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URS 17/25 J075885, Bussmann 25ET, ETI BS17UQ/63/25A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 25AF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 200 A²/s I²t Rating (IP > 30IN) 285 A²/s Nominal Current (RMS + DC) 25 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 6.7W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 35AF Series 690V, 35 Amp, aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URS 17/32 L075887, Bussmann 35ET, ETI BS17UQ/63/35A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 35AF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 510 A²/s I²t Rating (IP > 30IN) 725 A²/s Nominal Current (RMS + DC) 35 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 9.6W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 160NAF Series 250V, 160 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 160NAF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 11700 A²/s Nominal Current (RMS + DC) 160 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 54 x 18mm Hole Centers 38 x 42.8mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 16W Termination Style M6 Unit Weight 30g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 16AF Series 690V, 16 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URS 17/16 G075883 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 16AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 75 A²/s I²t Rating (IP > 30IN) 107 A²/s Nominal Current (RMS + DC) 16 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 4.8W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 45AF Series 660V, 45 Amp Semiconductor I²t Fuse, aR BS88 Style Features Equivalent to Mersen 6.9 URS 17/45 N075889, Bussmann 45ET, ETI BS17UQ/63/45A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 45AF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 900 A²/s I²t Rating (IP > 30IN) 1280 A²/s Nominal Current (RMS + DC) 45 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 11.4W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less
