Trent 110AF Series 690V 110 Amp, aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Bussmann 100FE, ETI BS17UQ/63/100A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 110AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 5500 A²/s I²t Rating (IP > 30IN) 7840 A²/s Nominal Current (RMS + DC) 110 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 26.5W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 150AAF Series 690V, 150 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URT 217/150 C099960, Bussman 140EET, ETI BS17D/70/140A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 150AAF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 18500 A²/s Nominal Current (RMS + DC) 150 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 90.2 x 30 x 36.7mm Hole Centers 62.4 - 76mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 28.7W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

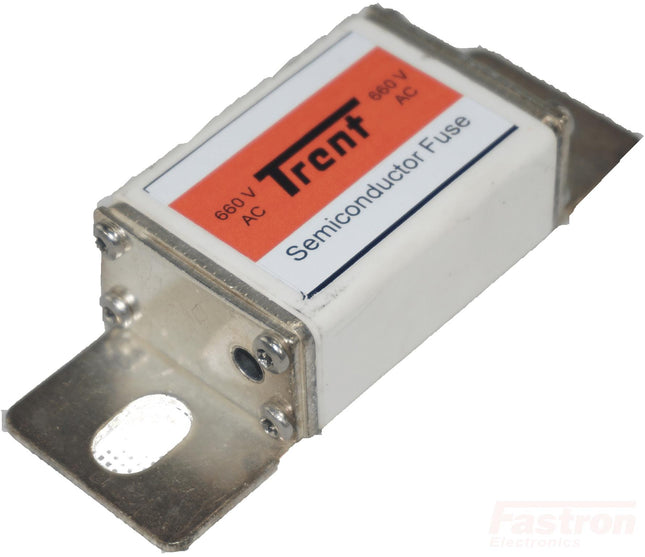

Trent 160AAF Series 690V, 160 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URT 217/160 K075909, Bussman 160EET, ETI BS17D/70/160A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 160AAF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 22800 A²/s Nominal Current (RMS + DC) 160 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 90.2 x 30 x 36.7mm Hole Centers 62.4 - 76mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 26W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 250AAF Series 690V, 250 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 250AAF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 37000 A²/s I²t Rating (IP > 30IN) 44000 A²/s Nominal Current (RMS + DC) 250 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 90.2 x 30 x 36.7mm Hole Centers 62.4 - 76mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 28W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

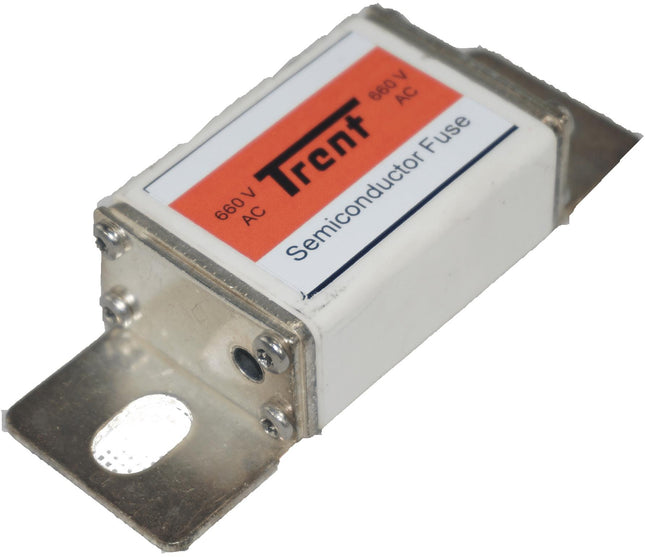

Trent 200AAF Series 690V, 200 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Bussman 200FEE British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 200AAF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 25500A²/s Nominal Current (RMS + DC) 200 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 90.2 x 30 x 36.7mm Hole Centers 62.4 - 76mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 28W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

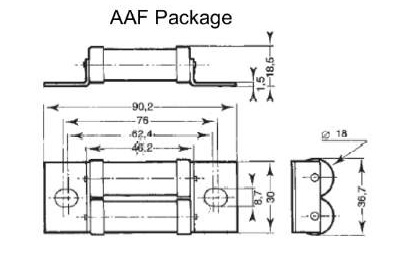

Trent 175AAF Series 690V, 175 Amp aR Semiconductor I²t Fuse BS88 Style 200kA Breaking Features Equivalent to Mersen 6.9 URT 217/175 K075909, Bussman 160EET, ETI BS17D/70/160A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 175AAF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 22800 A²/s Nominal Current (RMS + DC) 175 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 90.2 x 30 x 36.7mm Hole Centers 62.4 - 76mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 26W Termination Style M6 Unit Weight 61g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

2.5 URGG 36/200, 200Amp, 250V Semiconductor Protection Fuse Product Datasheet

Read more less

Trent 80BF Series 690V 80Amp Semiconductor I²t Fuse BS88 Style, aR Features Equivalent to Mersen 6.9 URGL 36/110 P097165 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 80BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 4000 A²/s Nominal Current (RMS + DC) 100 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 50W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 110BF Series 690V, 110 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/110 P097165 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 110BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 6000 A²/s I²t Rating (IP > 30IN) 6700 A²/s Nominal Current (RMS + DC) 110 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 22.8W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

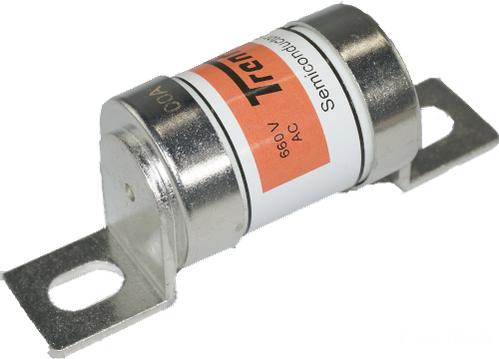

Trent 100BF Series 690V, 100 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/110 P097165 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 100BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 6000 A²/s I²t Rating (IP > 30IN) 6700 A²/s Nominal Current (RMS + DC) 100 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 50W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

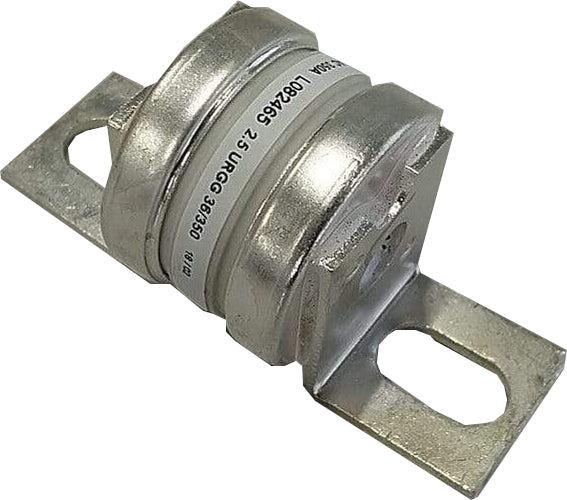

2.5 URGG 36/350, 350 Amp, 250V Semiconductor Protection Fuse Product Datasheet

Read more less

Trent 120BF Series 690V, 120 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/110 P097165 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 120BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 7500 A²/s I²t Rating (IP > 30IN) 8200 A²/s Nominal Current (RMS + DC) 120 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 25W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less
