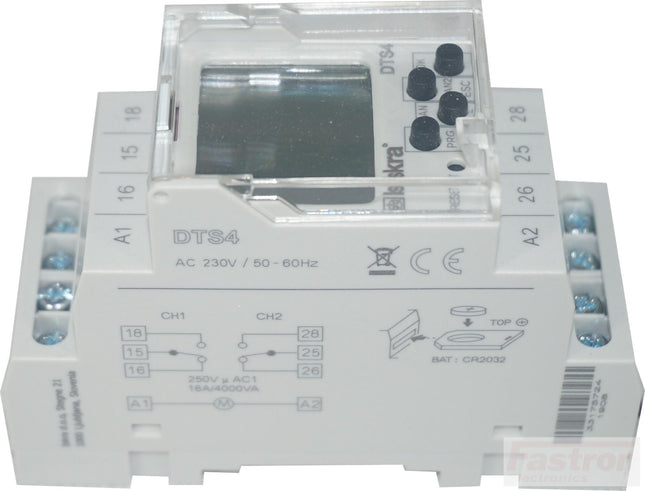

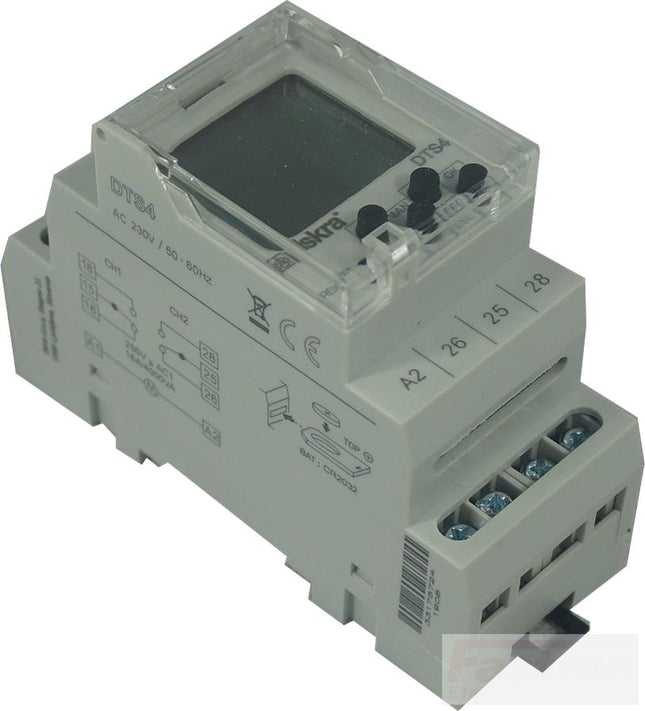

Iskra Two Pole Time Switch with SP-NO/NC Contacts DTS 5 UNI 24-240 V AC/DC - 2 Relay 16A : Multi-range (1 Min - Astronomical) 240 VAC LED status indicator Possibility of external load connection in parallel to the control input Specification Iskra Part Number DTS 4 230VAC Function Yearly Time Switch Nominal Voltage 240 VAC Digital Output 2 x C/O (SPDT) (Changeover -Single Pole Double Throw), 250VAC/DC @ 16 Amp Min Breaking Current 10mA/12VDC Timing Ranges Minutes, Hours, Days, Weeks, Months, Astro, Sunset/Sunrise Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Isolation 4kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style Screw Weight 80g Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP40 (Front), IP20 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22   Datasheet Product Datasheet Catalogue

Read more less

Crouzet BA2R08MV1, Syr-Line Delay Timer, 2 x 8A CO (DPDT) Relay 0.1s - 10 Days, 12 - 240VAC/DC BA2R Timers Syrline 17.5 mm - 2 Relays 8A : Multi-range (0.5s - 10days) Multi-voltage 12 →240 V AC/DC LED status indicator Possibility of external load connection in parallel to the control input 3-wire PNP sensor compatible Multifunction Timers Includes The Following : Function A Delay on energisation 1 relay Function At Timing on energisation with memory 1 relay Specification Crouzet Part Number BA2R08MV1 (Syr-Line Timer Double Pole Double Throw 2 x 8A Multifunction, 12 - 240VAC/DC, 17.5 mm) Function Dual Function Timer A - At Nominal Voltage 12 → 240 V AC/DC Digital Output 2 x C/O (DPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 8 Amp Min Breaking Current 10mA/12VDC Timing Ranges Selectable 0.5→10s, 0.05→1min, 0.5→10min, 0.05→1h, 0.5→10h, 0.05→1day, 0.5→10days Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Isolation 4kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style Screw Weight 80g Certification CE, cULus,CCC, ROHS, Reach, WEEE Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP40 (Front), IP20 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22   Datasheet Product Datasheet

Read more less

Crouzet BM2R08MV1 Syr-Line Single Pole Multifunction Timer With DPDT CO Contacts BM1R Timers Syrline 17.5 mm - 2 Relays 8A : Multi-function (12 functions) Multi-range (0.5s - 10days) Multi-voltage 12 →240 V AC/DC LED status indicator Possibility of external load connection in parallel to the control input 3-wire PNP sensor compatible Multifunction Timers Includes The Following : Function A Delay on energisation 1 relay Function Ac Timing after closing and opening of control contact 1 relay Function At Timing on energisation with memory 1 relay Function B Timing on impulse one shot 1 relay Function C Timing after impulse 1 relay Function D Flip-flop Pause start 1 relay Function Di Flip-flop Pulse start 1 relay Function H Timing on energisation 1 relay Function Ht Delay on energisation with memory 1 relay Function N Watchdog Function Tl Timed impulse relay Function TL Impulse relay Specification Crouzet Part Number BM2R08MV1 (Syr-Line Timer Double Pole Multifunction, 12 - 240VAC/DC, 17.5 mm) Function Multifunction Timer A - Ac - At - B - C - D - Di - H - Ht -N - TL - Tt Nominal Voltage 12 → 240 V AC/DC Digital Output 2 x C/O (DPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 8 Amp R1 = Follows Timing, R2 = Instantaneous Min Breaking Current 10mA/12VDC Timing Ranges Selectable 0.5→10s, 0.05→1min, 0.5→10min, 0.05→1h, 0.5→10h, 0.05→1day, 0.5→10days Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Isolation 4kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style Screw Weight 80g Certification CE, cULus,CCC, ROHS, Reach, WEEE Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP40 (Front), IP20 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 Datasheet Product Datasheet

Read more less

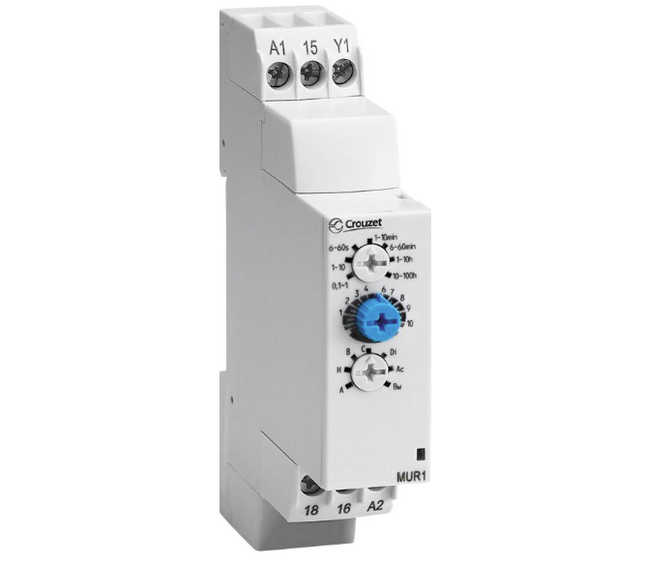

Timer Chronos2 MUR1 20-30VDC & 20- 264 VAC MUR1 Timers Syrline 17.5 mm - 1 C/O Relay 8A : Multi-range (0.5s - 100hrs) Multi-voltage 12 →240 V AC/DC LED status indicator Possibility of external load connection in parallel to the control input 3-wire PNP sensor compatible Multifunction Timers Includes The Following : Function A Delay on energisation 1 relay Function Ac Timing after closing and opening of control contact 1 relay Function At Timing on energisation with memory 1 relay Function B Timing on impulse one shot 1 relay Function Bw Timing pulse output (adjustable) Function C Timing after impulse 1 relay Function D Flip-flop Pause start 1 relay Function Di Flip-flop Pulse start 1 relay Function H Timing on energisation 1 relay Function Ht Delay on energisation with memory 1 relay Specification Crouzet Part Number 88827103 (Syr-Line Timer SinglePole Double Throw 1 x 8A Multifunction, 12 - 240VAC/DC, 17.5 mm) Function Multifunction Timer A - Ac - At - B - Bw - C - D - Di - H - Ht Nominal Voltage 12 → 240 V AC/DC Digital Output 1 x C/O (DPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 8 Amp Min Breaking Current 10mA/12VDC Timing Ranges Selectable 1s - 10s - 1 min - 10min - 1h, 10h, 100h Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Isolation 4kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style Screw Weight 80g Certification CE, cULus,CCC, ROHS, Reach, WEEE Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP40 (Front), IP20 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22   Cross Reference Can Be Replaced by BM1R05MV1 (5 Amp) or BM1R16MV1 Replaces 88826135 Datasheet Product Datasheet

Read more less

Timer Chronos2 88827103 Timer Chronos2 MUR3 20-30VDC & 20- 264 VAC, Can be replaced by BM1R05MV1 (5 Amp) MUR3 Timers Syrline 17.5 mm - 1 C/O Relay 8A : Multi-range (0.1s - 100hrs) Multi-voltage 12 →240 V AC/DC LED status indicator Possibility of external load connection in parallel to the control input 3-wire PNP sensor compatible Multifunction Timers Includes The Following : Function A Delay on energisation 1 relay Function Ac Timing after closing and opening of control contact 1 relay Function At Timing on energisation with memory 1 relay Function B Timing on impulse one shot 1 relay Function Bw Timing pulse output (adjustable) Function C Timing after impulse 1 relay Function D Flip-flop Pause start 1 relay Function Di Flip-flop Pulse start 1 relay Function H Timing on energisation 1 relay Function Ht Delay on energisation with memory 1 relay Specification Crouzet Part Number 88827103 (Syr-Line Timer SinglePole Double Throw 1 x 8A Multifunction, 12 - 240VAC/DC, 17.5 mm) Function Multifunction Timer A - Ac - At - B - Bw - C - D - Di - H - Ht Nominal Voltage 12 → 240 V AC/DC Digital Output 1 x C/O (DPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 8 Amp Min Breaking Current 10mA/12VDC Timing Ranges Selectable 0.1s - 1s - 10s - 1 min - 10min - 1h, 10h, 100h Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Isolation 4kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style Screw Weight 80g Certification CE, cULus,CCC, ROHS, Reach, WEEE Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP40 (Front), IP20 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 Datasheet Product Datasheet Cross Reference Can Be Replaced by BM1R05MV1 (5 Amp) or BM1R16MV1 Can Be Replaced by BM1R05MV1 (5 Amp) or BM1R16MV1 Replaces MRU1

Read more less

Crouzet Syr-Line Single Pole Multifunction Timer With SP-NO/NC Contacts TMR 48 X Timers Syrline 48x48mm - 1 Relay 5A : Multi-Function Mono Function Multi-range (0.02 s – 300 h) Multi-voltage (12-240VDC/24-240 V AC) 2 x CO relay outputs (Changeover) DIN Sized (48x48 mm) Housing Compact body (64.5 mm long) Water & Dust-proof (IP50) 8-Pin Multifunction Timers Include The Following : A1, A2, H1, H2, Q1, Q2, D-Di Specification Crouzet Part Number 88886116 Function Multifunction & Mono Function TimerA1, A2, H1, H2, Q1, Q2, D-Di Nominal Voltage 12 - 240VDC / 24 → 240 VAC Digital Output 2 x C/O (SPDT) (Changeover -Single Pole Double Throw), 250VAC/DC @ 5 Amp Min Breaking Current 10mA/12VDC Timing Ranges Selectable 0.02→300h Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Memory N/A Isolation 1kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style 8 Pin Base Weight 80g Certification CE, cULus,CCC, ROHS, Reach, WEEE Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP50 (Front), IP40 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 Datasheet Product Datasheet

Read more less

Crouzet Syr-Line Single Pole Multifunction Timer With SP-NO/NC Contacts MDE Timers Syrline 48x48mm - 1 Relay 5A : Large LED or LCD Screen (13.2 mm) Multi-function and single-function Basic & Advance configuration modes Multi-range (0.05 s – 9999 h) Multi-voltage (24-240 V AC/DC) 1 or 2 relay outputs (Changeover) Memory option in event of a break in supply (Note Memory available for A function only in LCD models) Lock function › Up or down timing DIN Sized (48x48 mm) Housing Compact body (63 mm long) Water & Dust-proof (IP66) 8-Pin Multifunction Timers Include The Following : Function A Delay on energisation 1 relay (With or without Memory) Function B Timing on impulse one shot 1 relay Function C Timing after impulse 1 relay Function H Timing on energisation 1 relay Function D Symmetrical Flashing (OFF start) with Memory 1 relay Function Di Symmetrical Flashing (ON start) with Memory 1 relay Specification Crouzet Part Number MDE1R0524U (Syr-Line Timer Single Pole 5A Multifunction, 24VAC/DC, 48x48mm) Function Multifunction Timer A - B - C - H - D - Di Nominal Voltage 24VAC/DC Digital Output 1 x C/O (SPDT) (Changeover -Single Pole Double Throw), 250VAC/DC @ 5 Amp Min Breaking Current 10mA/12VDC Timing Ranges Selectable 0.05→9999h Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Memory YES -> Function A only for MDE (LCD display) series Isolation 1kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style 8 Pin Base Weight 80g Certification CE, cULus,CCC, ROHS, Reach, WEEE Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP66 (Front), IP40 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 Datasheet Product Datasheet

Read more less

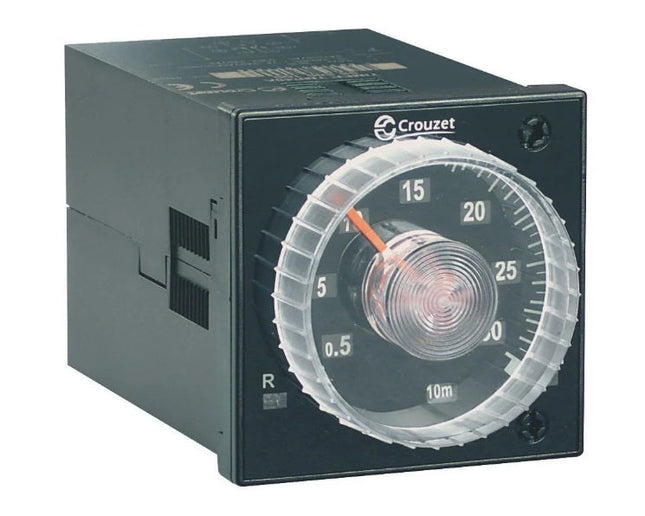

Crouzet 88886016, Syr-Line Multirange Timer TMR 48 X, 11 Pin, Single Pole 5A CO (SPDT) Delay 0.02s - 300h, 12-240VDC, 24-240VAC, 48x48mm, Functions A1, A2, H1, H2, Q1, Q2, D-Di TMR 48 X Timers Syrline 48x48mm - 1 Relay 5A : Multi-Function Mono Function Multi-range (0.02 s – 300 h) Multi-voltage (12-240VDC/24-240 V AC) 2 x CO relay outputs (Changeover) DIN Sized (48x48 mm) Housing Compact body (64.5 mm long) Water & Dust-proof (IP50) 11-Pin Multifunction Timers Include The Following : A1, A2, H1, H2, Q1, Q2, D-Di Specification Crouzet Part Number 88886016 Function Multifunction & Mono Function TimerA1, A2, H1, H2, Q1, Q2, D-Di Nominal Voltage 12 - 240VDC / 24 → 240 VAC Digital Output 2 x C/O (SPDT) (Changeover -Single Pole Double Throw), 250VAC/DC @ 5 Amp Min Breaking Current 10mA/12VDC Timing Ranges Selectable 0.02→300h Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Memory N/A Isolation 1kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style 11 Pin Base Weight 80g Certification CE, cULus,CCC, ROHS, Reach, WEEE Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP50 (Front), IP40 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 Datasheet Product Datasheet

Read more less

Crouzet Syr-Line Single Pole Multifunction Timer With SP-NO/NC Contacts MDE Timers Syrline 48x48mm - 1 Relay 5A : Large LED or LCD Screen (13.2 mm) Multi-function and single-function Basic & Advance configuration modes Multi-range (0.05 s – 9999 h) Multi-voltage (24-240 V AC/DC) 1 or 2 relay outputs (Changeover) Memory option in event of a break in supply (Note Memory available for A function only in LCD models) Lock function › Up or down timing DIN Sized (48x48 mm) Housing Compact body (63 mm long) Water & Dust-proof (IP66) 8-Pin Multifunction Timers Include The Following : Function A Delay on energisation 1 relay (With or without Memory) Function B Timing on impulse one shot 1 relay Function C Timing after impulse 1 relay Function H Timing on energisation 1 relay Function D Symmetrical Flashing (OFF start) with Memory 1 relay Function Di Symmetrical Flashing (ON start) with Memory 1 relay Specification Crouzet Part Number MDE1R05MVA (Syr-Line Timer Single Pole 5A Multifunction, 100 - 240VAC, 48x48mm) Function Multifunction Timer A - B - C - H - D - Di Nominal Voltage 100 → 240 VAC Digital Output 1 x C/O (SPDT) (Changeover -Single Pole Double Throw), 250VAC/DC @ 5 Amp Min Breaking Current 10mA/12VDC Timing Ranges Selectable 0.05→9999h Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Memory YES -> Function A only for MDE (LCD display) series Isolation 1kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style 8 Pin Base Weight 80g Certification CE, cULus,CCC, ROHS, Reach, WEEE Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP66 (Front), IP40 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 Datasheet Product Datasheet

Read more less

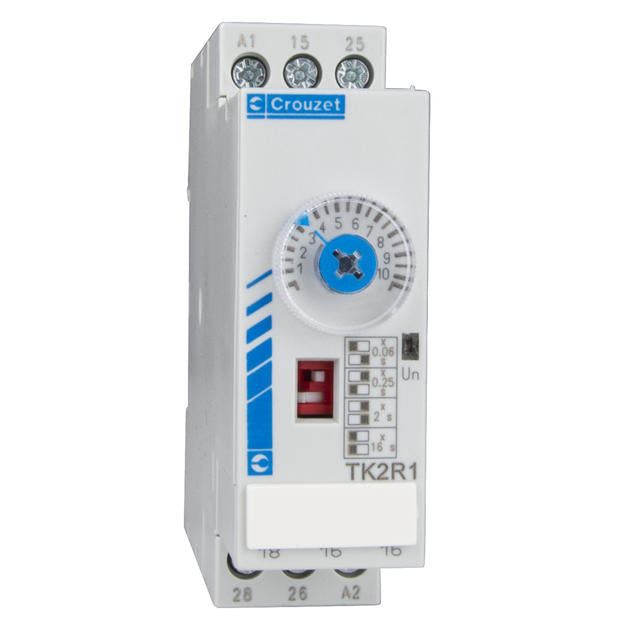

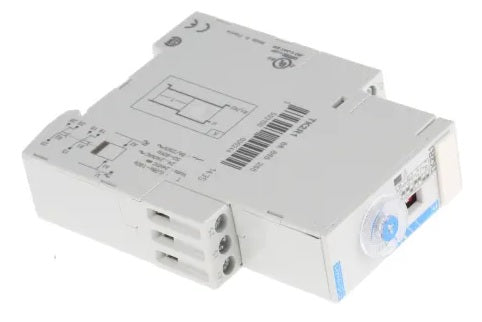

Crouzet 88865265 TK2R Double Pole Multifunction Timer with DPDT CO Contacts TK2R Timers Syrline 17.5 mm - 2 Relays 8A : Multi-range (0.5s - 10days) Multi-voltage 24VDC or 12 - 240VAC LED status indicator Possibility of external load connection in parallel to the control input Multifunction Timers Includes The Following : Function K-2 Delay on de-energisation True delay OFF 2 relays Specification Crouzet Part Number 88865265 (Syr-Line Timer Single Pole Double Throw 2 x 8A C/O, 24VDC or 12 - 240VAC, 22.5 mm) Function Dual Function Timer K-2 Nominal Voltage 24VDC or 12 - 240VAC Digital Output 2 x C/O (DPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 8 Amp Min Breaking Current 10mA/12VDC Timing Ranges Selectable 0.6→160s Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Isolation 4kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style Screw Weight 80g Certification CE, cULus,CCC, ROHS, Reach, WEEE Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP40 (Front), IP20 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 Datasheet Product Datasheet

Read more less
