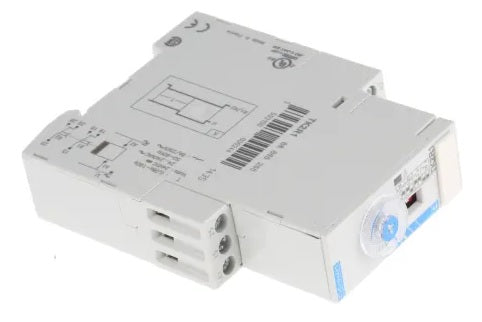

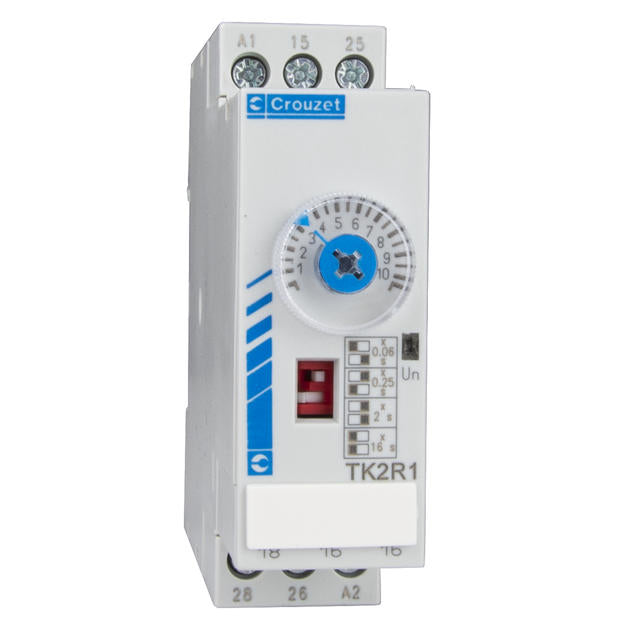

Crouzet Part Number	88865265 (Syr-Line Timer Single Pole Double Throw 2 x 8A C/O, 24VDC or 12 - 240VAC, 22.5 mm)
Function	Dual Function Timer K-2
Nominal Voltage	24VDC or 12 - 240VAC
Digital Output	2 x C/O (DPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 8 Amp
Min Breaking Current	10mA/12VDC
Timing Ranges	Selectable 0.6→160s
Minimum Pulse Duration	30ms/100ms with load
Repeatability	0.5%
Reset Time	120ms
Isolation	4kV
Repetition Accuracy	0.5%
Threshold Adjustment Range	10 → 100 % of the range
Termination Style	Screw
Weight	80g
Certification	CE, cULus,CCC, ROHS, Reach, WEEE
Factory Pack Qty	1
Over Voltage Category	3 in accordance with IEC/EN 60664-1
Pollution Degree	2 in accordance with IEC/EN 61131-2
Protection rating	IP40 (Front), IP20 (Rear)
Mechanical Resistance	Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea
Resistance to HF Interference	Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
Conducted and radiated emissions	Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
Operating Temperature	-20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22
