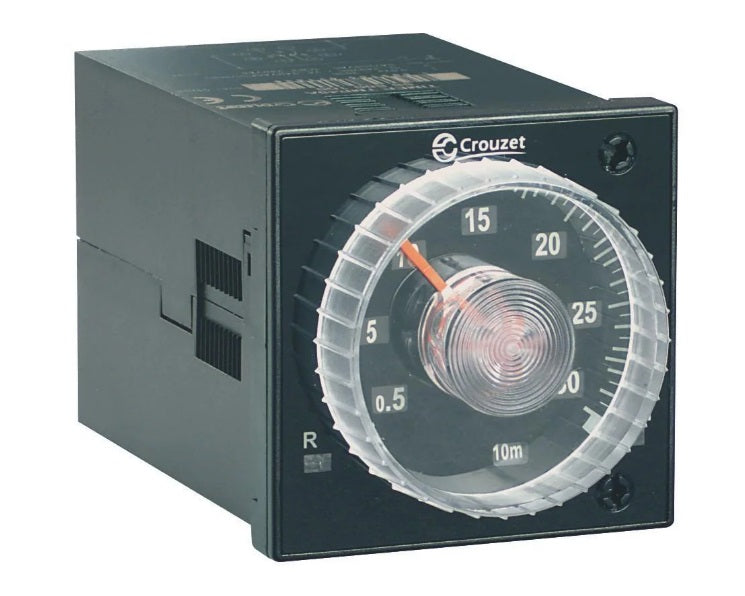

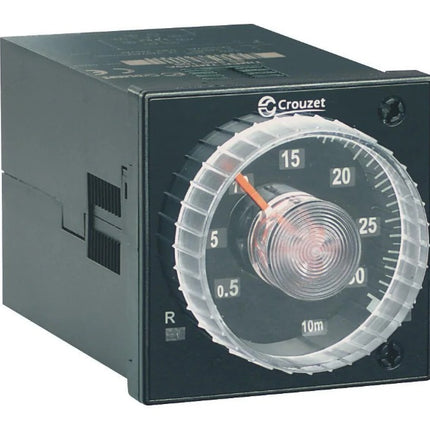

88886116, Syr-Line Multirange Timer TMR 48 X, 8 Pin, Single Pole 5A CO (SPDT) Delay 0.02s - 300h, 12-240VDC, 24-240VAC, 48x48mm, Functions A1, A2, H1, H2, Q1, Q2, D-Di

88886116, Syr-Line Multirange Timer TMR 48 X, 8 Pin, Single Pole 5A CO (SPDT) Delay 0.02s - 300h, 12-240VDC, 24-240VAC, 48x48mm, Functions A1, A2, H1, H2, Q1, Q2, D-Di

Product form
Free pickup in our shop(s)

5 pcs in stock

$177.40 $195.14 inclGST Excl. VAT

        SKU: FE-88886116

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Crouzet Syr-Line Single Pole Multifunction Timer With SP-NO/NC Contacts

        TMR 48 X Timers Syrline 48x48mm - 1 Relay 5A :

        • Multi-Function
        • Mono Function
        • Multi-range (0.02 s – 300 h)
        • Multi-voltage (12-240VDC/24-240 V AC)
        • 2 x CO relay outputs (Changeover)
        • DIN Sized (48x48 mm) Housing
        • Compact body (64.5 mm long)
        • Water & Dust-proof (IP50)
        • 8-Pin

        Multifunction Timers Include The Following :

        • A1, A2, H1, H2, Q1, Q2, D-Di
          Specification
          Crouzet Part Number 88886116
          Function Multifunction & Mono Function Timer
          A1, A2, H1, H2, Q1, Q2, D-Di
          Nominal Voltage 12 - 240VDC / 24 → 240 VAC
          Digital Output 2 x C/O (SPDT) (Changeover -Single Pole Double Throw), 250VAC/DC @ 5 Amp
          Min Breaking Current 10mA/12VDC
          Timing Ranges Selectable 0.02→300h
          Minimum Pulse Duration 30ms/100ms with load
          Repeatability 0.5%
          Reset Time 120ms
          Memory N/A
          Isolation 1kV
          Repetition Accuracy 0.5%
          Threshold Adjustment Range 10 → 100 % of the range
          Termination Style 8 Pin Base
          Weight 80g
          Certification CE, cULus,CCC, ROHS, Reach, WEEE
          Factory Pack Qty 1
          Over Voltage Category 3 in accordance with IEC/EN 60664-1
          Pollution Degree 2 in accordance with IEC/EN 61131-2
          Protection rating IP50 (Front), IP40 (Rear)
          Mechanical Resistance

          Immunity to vibrations IEC/EN 60068-2-6, test Fc

          Immunity to shock IEC/EN 60068-2-27, test Ea
          Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
          Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
          Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22


          Datasheet
