Fastron FTCK-9-86-XX-1/2" BSP, Type K Thermocouple MIMS Class A, 86 x 9mm Probe w/Terminal Head and Direct 1/2"BSP Sensor tip, -20 to 850 Deg C, CE ANSI ROHS Approved Class A Accuracy 1/2"BSP Threaded Tip to replace Thermowell Low Long Term Drift Rated for -20 to 850 Deg C Max Terminal Head Connection 86 x 9mm MIMS Threaded 1/2" BSP Tip for direct mounting Specification Fastron Part Number FTCK-9-86-XX-1/2" BSP Sensor Type Type K Thermocouple No of Wires 2 Probe Length 86mm Sheath Thickness 9mm Sheath Material SS314 Stainless Steel Approvals CE, ANSI, ROHS Accuracy Class A Cable Length Terminal Head Terminal Head Type Die Cast Alloy Terminal Head Temperature Range -20 to 850 Deg C Special Feature Spring Cable Strain Relief Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 500g Factory Pack Qty 1 Datasheet Datasheet

Read more less

Fastron FTCK-D-6-600-XX-KNE, Duplex Type K Thermocouple MIMS Class A, 100 x 6mm Probe w/ Large Terminal Head, -20 to 500 Deg C, CE ANSI ROHS Approved, KNE(wire entry:M20x1.5, probe entry: G1/2'') Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 600 x 6mm MIMS Duplex 4 Wire Recommended to use BSP Fitting for mounting Specification Fastron Part Number FTCK-6-600-XX-KNE Sensor Type Duplex Type K Thermocouple No of Wires 4 Shaft Length 600mm Cable Entry M20 Probe Entry G 1/2" Shaft Thickness 6mm Accuracy Class A Approvals CE, ANSI, ROHS Cable length Terminal Head Terminal Head Type Large Weatherproof Die Cast Alloy, , KNE(wire entry:M20x1.5, probe entry: G1/2'') Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 570g Factory Pack Qty 1 Datasheet Datasheet

Read more less

Fastron FTCK-D-6-600-XX-KNS, Duplex Type K Thermocouple MIMS Class A, 100 x 6mm Probe w/ Small Terminal Head, -20 to 500 Deg C, CE ANSI ROHS Approved Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 600 x 6mm MIMS Duplex 4 Wire Recommended to use BSP Fitting for mounting Specification Fastron Part Number FTCK-6-600-XX-KSE Sensor Type Duplex Type K Thermocouple No of Wires 4 Shaft Length 600mm Cable Entry M16 Probe Entry G 1/2" Shaft Thickness 6mm Accuracy Class A Approvals CE, ANSI, ROHS Cable length Terminal Head Terminal Head Type Small Weatherproof Die Cast Alloy, Wire entry:M16x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Small Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 570g Factory Pack Qty 1 Datasheet Datasheet

Read more less

Fastron RTD, Class A 150 x 6mm Probe, 316 Stainless Steel, Bare High Temp Epoxy Seal, w/ 5000mm Teflon/Screen/Teflon, -50 to 200 Deg C Class A Accuracy Teflon/Screen/Teflon Cable Low Long Term Drift Rated for -50 to 200 Deg C Max Spring Cable Connection 6 x 150mm MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FRTD-6-150-5000-ES Sensor Type Type K Thermocouple No of Wires 2 Material 316 Stainless Steel Shaft Length 150mm Shaft Thickness 6mm Approvals CE, ANSI, ROHS Accuracy Class A Cable length 2 Meter Cable Type Teflon/Screen/Teflon Temperature Range -50 to 200 Deg C Special Feature High Temperature Epoxy Sealed Mounting Style Loose (BSP Fitting reccomended) Weight 900g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Fastron FRTD-8-247-3-12-5000PVC, Class A 247 x 8mm Probe, 12 x 3mm Tip, 304 Stainless Steel w/ 5000mm PVC Tails, -50 to 100 Deg C Class A Accuracy Teflon/Screen/Teflon Cable Low Long Term Drift Rated for -50 to 200 Deg C Max Spring Cable Connection 6 x 150mm MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FRTD-8-247-3-12-5000PVC Sensor Type RTD Pt100 Thermocouple No of Wires 3 Material 304 Stainless Steel Shaft Length 247mm (12mm Tip) Shaft Thickness 8mm (3mm Tip) Approvals CE, ANSI, ROHS Accuracy Class A Cable length 5 Meter Cable Type Teflon/Screen/Teflon Temperature Range -50 to 200 Deg C Special Feature High Temperature Epoxy Sealed Mounting Style Loose (BSP Fitting recommended) Weight 500g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

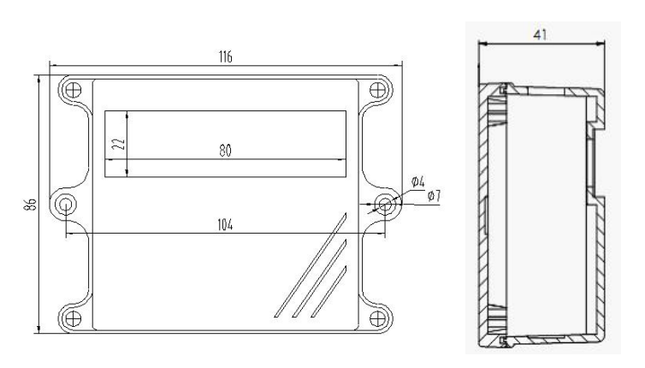

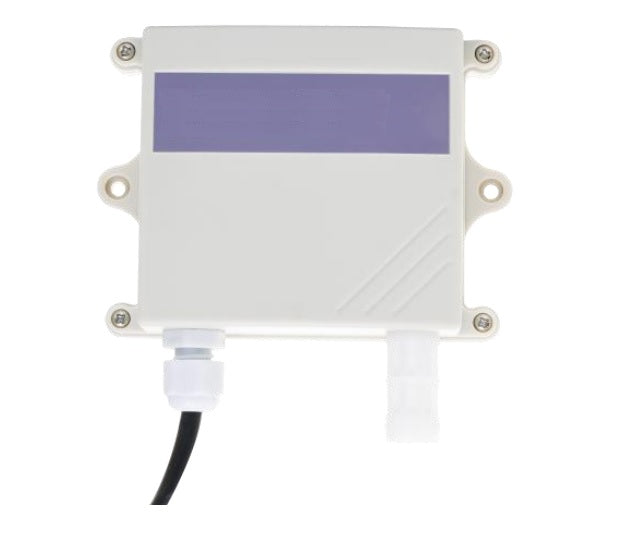

Fastron LT-CG-S/D-005-V0010-12-L, Room Air Temperature Sensor and Transmitter, 0-10V output, -40 to 80 Deg C 0-10V Output 2 Wire Temp Measurement for -40 to 80 Deg C Max 24VDC Supply  Specification Fastron Part Number LT-CG-S/D-005-V0010-12-L Sensor Type NTC  Aux Supply 24VDC No of Wires 2 Output 0-10V Dimensions 86 x 41 x 116mm Approvals CE, ROHS Cable length N/A Temperature Range -40 to 80 Deg C Mounting Style Panel Mount Weight 150g Factory Pack Qty 1 Datasheet Datasheet

Read more less

Fastron FTCK-8-500-75-D, Duplex Type K Thermocouple MIMS Class A, 500 x 8mm Probe w/ Terminal Head, -20 to 1000 Deg C, CE ANSI ROHS Approved Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 1000 Deg C Max High Temp Potted Flying Leads 500 x 8mm MIMS Duplex 4 Wire Recommended to use BSP Fitting for mounting Specification Fastron Part Number FTCK-8-500-75-D Sensor Type Duplex Type K Thermocouple No of Wires 4 Shaft Length 500mm SS316 Shaft Thickness 8mm Accuracy Class A Approvals CE, ANSI, ROHS Cable length 75mm Cable Type Teflon Temperature Range -20 to 1000 Deg C Special Feature High Temperature Potting Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 370g Factory Pack Qty 1 Datasheet Datasheet

Read more less

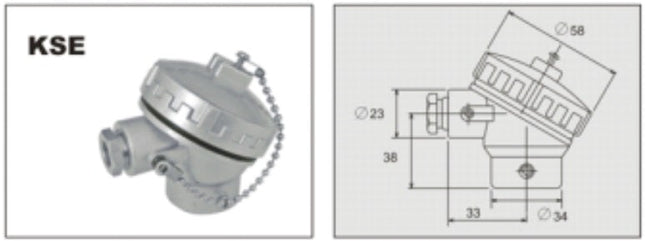

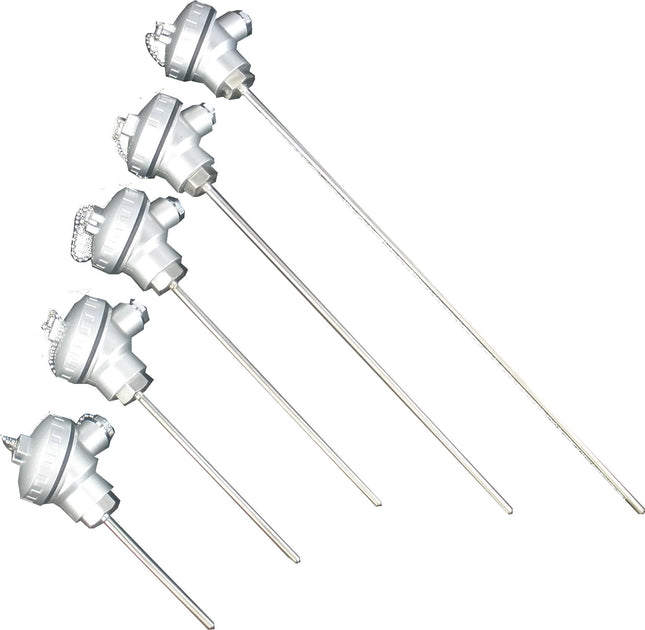

Fastron FTCK-6-400-XX-KSE, Type K Thermocouple MIMS Class A, 400mm Probe Length, 6mm Shaft Diameter w/ SMALL Terminal Head, -20 to 500 Deg C, KSE(wire entry:M16x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting for mounting Specification Fastron Part Number FTCK-6-400-XX-KSE Sensor Type Type K Thermocouple No of Wires 2 Probe Length 400mm Sheath Thickness 6mm Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Small Terminal Head (105 x 70mm) Terminal Head Type Small Powder Coated Die Cast Alloy (Weather Proof), , KSE(wire entry:M16x1.5, probe entry: G1/2'') Temperature Range -20 to 500 Deg C Special Feature Small Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet

Read more less
