Temperature Sensors
-

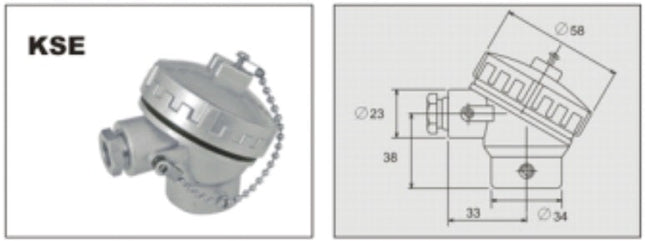

FTCK-3-50-XX-KSE, Type K Thermocouple MIMS Class A, 50mm Probe Length, 3mm Shaft Diameter w/ SMALL Terminal Head, -20 to 500 Deg C, KSE(wire entry:M16x1.5, probe entry: G1/2'')
Fastron Type K Thermocouple MIMS Class A, Various Probe Lengths and Diameter w/ SMALL Terminal Head, -20 to 500 Deg C, KSE(wire entry:M16x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting for mounting Specification Fastron Part Number Type K Thermocouple MIMS Class A Sensor Type Type K Thermocouple No of Wires 3 Probe Length Various Sheath Thickness 3/6mm (or Custom) Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Small Terminal Head (105 x 70mm) Terminal Head Type Small Powder Coated Die Cast Alloy (Weather Proof), , KSE(wire entry:M16x1.5, probe entry: G1/2'') Temperature Range -20 to 500 Deg C Special Feature Small Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet
$78.00
$92.04 inclGST -
FTCK-6-100-XX-KSE, Type K Thermocouple MIMS Class A, 100mm Probe Length, 6mm Shaft Diameter w/ SMALL Terminal Head, -20 to 500 Deg C, KSE(wire entry:M16x1.5, probe entry: G1/2'')
Fastron FTCK-6-100-XX-KSE, Type K Thermocouple MIMS Class A, 100mm Probe Length, 6mm Shaft Diameter w/ SMALL Terminal Head, -20 to 500 Deg C, KSE(wire entry:M16x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting for mounting Specification Fastron Part Number FTCK-6-100-XX-KSE Sensor Type Type K Thermocouple No of Wires 2 Probe Length 100mm Sheath Thickness 6mm Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Small Terminal Head (105 x 70mm) Terminal Head Type Small Powder Coated Die Cast Alloy (Weather Proof), , KSE(wire entry:M16x1.5, probe entry: G1/2'') Temperature Range -20 to 500 Deg C Special Feature Small Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet
$77.00
$90.86 inclGST -

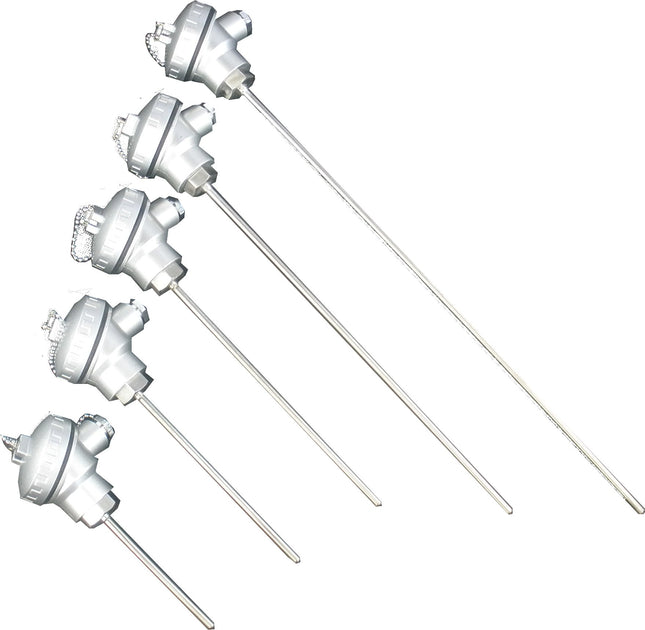

FTCK-6-50-XX-KSE, Type K Thermocouple MIMS Class A, 50mm Probe Length, 6mm Shaft Diameter w/ SMALL Terminal Head, -20 to 500 Deg C, KSE(wire entry:M16x1.5, probe entry: G1/2'')
Fastron FTCK-6-50-XX-KSE, Type K Thermocouple MIMS Class A, 50mm Probe Length, 6mm Shaft Diameter w/ SMALL Terminal Head, -20 to 500 Deg C, KSE(wire entry:M16x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting for mounting Specification Fastron Part Number FTCK-6-50-XX-KSE Sensor Type Type K Thermocouple No of Wires 2 Probe Length 50mm Sheath Thickness 6mm Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Small Terminal Head (105 x 70mm) Terminal Head Type Small Powder Coated Die Cast Alloy (Weather Proof), , KSE(wire entry:M16x1.5, probe entry: G1/2'') Temperature Range -20 to 500 Deg C Special Feature Small Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet
$77.00
$90.86 inclGST -

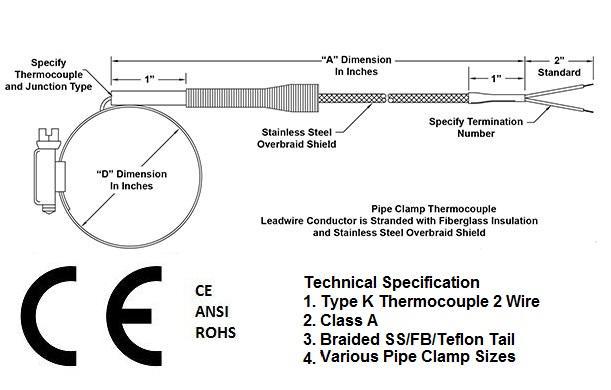

FTCK-PIPE-3000, Type K Clamp Style Thermocouple for Pipes, Various Clamp Sizes, 3000mm 2 Wire Braided SS/Fibreglass/Teflon Wire, CE, ANSI, ROHS Approved
Fastron FTCK-PIPE-3000, Type K Clamp Style Thermocouple for Pipes, Various Clamp Sizes, 3000mm 2 Wire Braided SS/Fibreglass/Teflon Wire, CE, ANSI, ROHS Approved Features Class A Accuracy Pipe Clamp Style Sensor Low Long Term Drift Rated for -20 to 370 Deg C Max 3000mm Tail Length Available in custom lengths Fibreglass Sheath Specification Fastron Part Number FTCK-PIPE-3000 Sensor Type Type K Thermocouple Ungrounded No of Wires 2 TailLength 3000mm or custom Clamp Size 7/32 -> 5/8", 3/8 -> 1/2", 3/8 -> 5/8", 1/2 -> 5/8", 5/8 -> 3/4", 3/4 -> 1", 1 1/4 -> 1 1/2", 1 1/4 -> 1 3/4", 1 1/2 -> 2", 1 3/4 -> 2 1/4", 2 1/16 -> 3", 2 5/16 -> 3 1/4", 3 -> 3 1/4", 3 - 1/4", 3 -> 3 1/2", 4 -> 4 1/2", 4 1/6 -> 5", 4 5/8 -> 5 1/2", 5 1/8 -> 6", 5 7/8 -> 6 3/4" Sheath Material Fibreglass Accuracy Class A Cable Type Briaded SS/Fibreglass/Teflon Temperature Range -20 to 370 Deg C Special Feature Pipe Clamp Mounting Style Clamp Weight 300-500g Factory Pack Qty 1 Datasheet Product Datasheet
$69.00 - $72.00
-
FRTD Series Pt100 RTD MIMS Class A, Standard Sizes and Lengths, Braided SS/Teflon Tail, 304 Stainless Steel Sheath
Fastron FRTD Series Pt100 Resistance Temperature Detector (RTD)Mineral Insulated 304 Stainless Steel Sheath, Braided SS/Teflon Screeend Tail, Various Dimensions Class A Accuracy CE, ANSI, ROHS Approved Teflon Screened SS Braided Cable (3M standard) Low Long Term Drift Rated for -50 to 350 Deg C Max (300 Deg C for L shaped style) Spring Cable Connection 3/5mm Sheath Diameter or custom 50-500mm Sheath Length or custom MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FRTD Series Sensor Type Pt100 Resistance Temperature Detector No of Wires 2 Probe Length 50-100mm or custom Sheath Thickness 3/5mm or custom Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length 3 Meters (Standard) or custom Cable Type Teflon/Braided Stainless Steel Temperature Range -50 to 350 Deg C Special Feature Spring Cable Strain Relief Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 300-500g Factory Pack Qty 1 Datasheet RTD Standard Datasheet
$67.00 - $85.00
-
FTCK-Transmitter-0-200-420-24, Type K , 4-20mA Transmitter, 0 to 200 Deg C, 24VDC Supply
Fastron Type K Thermocouple FTCK-Transmitter-0-200-420-24, Type K , 4-20mA Transmitter, 0 to 200 Deg C, 24VDC Supply Class A Accuracy Steel Insulated Cable Low Long Term Drift Rated for 0 to 220 Deg C Max Spring Cable Connection 60mm Jaw Clip Specification Fastron Part Number FTCK-Transmitter-0-200-420-24 Sensor Type Type K to 4-20mA Transmitter No of Wires 2 Shaft Length N/A Shaft Thickness N/A Accuracy Class A Temperature Range 0 to 200 Deg C Span/ Zero Adjustment YES Weight 50g Factory Pack Qty 1
$65.00
$76.70 inclGST -
FTCK Series Type K Thermocouples MIMS Class A, Standard Sizes and Lengths 3mm or 5mm Shaft, Braided SS/Fibreglass/Teflon Tail, 304 Stainless Steel Sheath, CE ANSI ROHS Approved, -20 to 700 Deg C
Fastron FTCK Series Type K Thermocouples MIMS Class A, Standard Sizes and Lengths 3mm or 5mm Shaft, Braided SS/Fibreglass/Teflon Tail, 304 Stainless Steel Sheath, CE ANSI ROHS Approved, -20 to 800 Deg C Class A Accuracy CE, ANSI, ROHS Approved Kink proof Fiberglass Reinforced SS Braided Cable Low Long Term Drift Rated for -20 to 800 Deg C Max Spring Cable Connection 50 - 500mm or custom Sheath Thickness 3/5/9mm or custom MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FTCK Series Sensor Type Type K Thermocouple No of Wires 2 Probe Length 50-500mm or custom Sheath Thickness 3/6/9mm or custom Sheath Material SS 304 Stainless Steel Aprovals CE, ANSI, ROHS Accuracy Class A Cable length 3 Meters (Standard) or custom Cable Type Teflon/Fibreglass/Braided Stainless Steel Temperature Range -20 to 800 Deg C Special Feature Spring Cable Strain Relief Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 300-500g Factory Pack Qty 1 Datasheet Type K Datasheet Type K 100mm Datasheet Type K 50mm Datasheet
$56.00 - $76.00
-

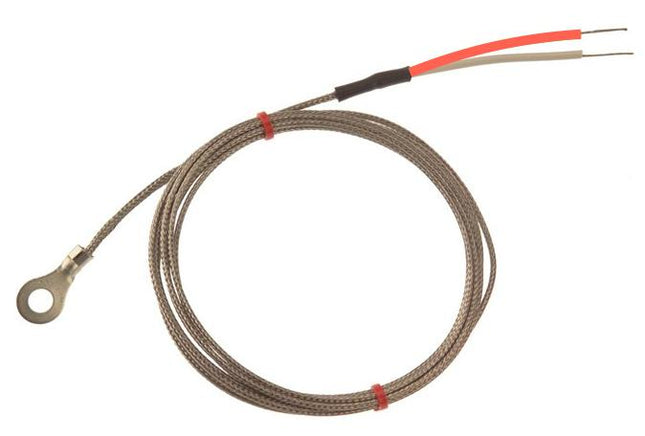

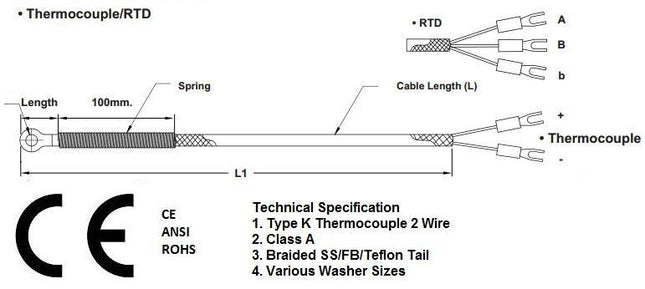

FTCK-BLT-3000, Type K Bolt Style Thermocouple for Machine, Various Washer Sizes, 3000mm 2 Wire Braided SS/Fibreglass/Teflon Wire, CE, ANSI, ROHS Approved
Fastron FTCK-BLT-3000, Type K Bolt Style Thermocouple for Machine, Various Washer Sizes, 3000mm 2 Wire Braided SS/Fibreglass/Teflon Wire, CE, ANSI, ROHS Approved Features Class A Accuracy Washet/Bolt Style Sensor Low Long Term Drift Rated for -20 to 370 Deg C Max 3000mm Tail Length Available in custom lengths Fibreglass Sheath Specification Fastron Part Number FTCK-BLT-3000 Sensor Type Type K Thermocouple Ungrounded No of Wires 2 TailLength 3000mm or custom Washer Size M5(1/8"),M6(3/16"),M8(1/4"),M10(3/8"),M12(1/2") Sheath Material Fibreglass Accuracy Class A Cable Type Briaded SS/Fibreglass/Teflon Temperature Range -20 to 370 Deg C Special Feature Ceramic Mounting Style Bolt Weight 300-500g Factory Pack Qty 1 Datasheet Product Datasheet
$46.00
$54.28 inclGST -

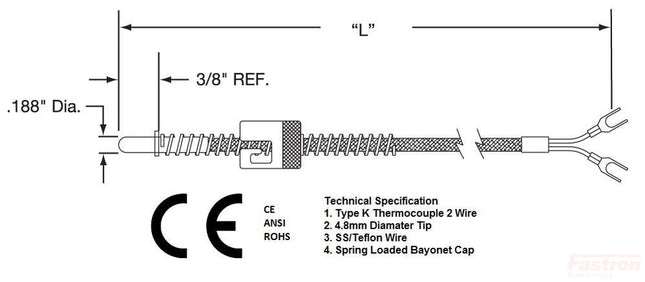

FTCK-5-120-PLAS-3000, Type K Class A Thermocouple, -20 to 480 Deg C Plastic Industry Style x 4.8mm Probe w/ 3000mm Screened Teflon/Braided SS cable, CE ANSI ROHS Approved
Fastron FTCK-5-120-PLAS-3000-B 4.8mm Type K Thermocouple Metal Sheath with Spring Bayonet Cap Quick Release Fitting for Plastic Industry Class A Accuracy Teflon SS Braided Cable Low Long Term Drift Rated for -20 to 480 Deg C Max Spring Cable Connection 20 x 4.8mm MIMS Specification Fastron Part Number FTCK-5-120-PLAS-3000 Sensor Type Type K Thermocouple No of Wires 2 Probe Length 20mm Sheath Thickness 5mm Sheath Material SS304 Stainless Steel Approvals CE, ANSI, ROHS Accuracy Class A Cable length 3 Meters Cable Type Teflon/Braided Stainless Steel with Spring Bayonet Cap Temperature Range -20 to 480 Deg C Special Feature Spring 2 Pin Bayonet Cap Mounting Style Quick Release Two pin Bayonet Fitting Weight 250g Factory Pack Qty 1 Datasheet Datasheet
$39.00
$46.02 inclGST -
FTCK-5-PLAS-5000-B, Type K Class B, Thermocouple, Plastic Industry Style x 4.8mm Probe w/ 2000mm Screened Teflon/Braided SS cable, -20 to 400 Deg C
Fastron FTCK-5-PLAS-5000-B, Type K Class B, Thermocouple, Plastic Industry Style x 4.8mm Probe w/ 2000mm Screened Teflon/Braided SS cable, -20 to 400 Deg C Quick Release Fitting for Plastic Industry Class B Accuracy Teflon SS Braided Cable Low Long Term Drift Rated for -20 to 850 Deg C Max Spring Cable Connection 20 x 4.8mm MIMS Specification Fastron Part Number FTCK-5-PLAS-5000-B Sensor Type Type K Thermocouple No of Wires 2 Probe Length 20mm Sheath Thickness 5mm Sheath Material SS304 Stainless Steel Accuracy Class B Approvals N/A Cable length 5 Meters Cable Type Teflon/Braided Stainless Steel with Spring Bayonet Cap Temperature Range -20 to 350 Deg C Special Feature Quick Release Fitting, Strain Relief Spring Cable Mounting Style Quick Release Fitting Weight 380g Factory Pack Qty 1 Datasheet Datasheet
$37.00
$43.66 inclGST -
FTCJ-5-PLAS-3000-B 4.5mm Type J Metal Sheath Thermocouple with Spring Bayonet Cap
Fastron FTCJ-5-PLAS-3000-B 4.5mm Type J Metal Sheath Thermocouple with Spring Bayonet Cap Quick Release Bayonet Fitting for Plastic Industry Class B Accuracy Teflon SS Braided Cable Low Long Term Drift Rated for -20 to 850 Deg C Max Spring Cable Connection 20 x 4.8mm MIMS Specification Fastron Part Number FTCJ-5-PLAS-3000-B Sensor Type Type J Thermocouple No of Wires 2 Probe Length 20mm Sheath Thickness 5mm (4.5mm) Sheath Material SS304 Stainless Steel Accuracy Class B Approvals N/A Cable length 3 Meters Cable Type Teflon/Braided Stainless Steel with Spring Bayonet Cap Temperature Range -20 to 350 Deg C Special Feature Quick Release Fitting, Strain Relief Spring Cable Mounting Style Quick Release Fitting Weight 300g Factory Pack Qty 1 Datasheet Datasheet
$29.00
$34.22 inclGST -
FTCN-3-200-C-1000-N-2P-C, Type N Ceramic Thermocouple for Oven, 200 x 3mm(~12mm) Probe w/Ceramic Terminals, -20 to 1000 Deg C
Fastron FTCN-3-200-C-1000-N-2P-C, Type N Ceramic Thermocouple for Oven, 200 x 3mm(~12mm) Probe w/Ceramic Terminals, -20 to 1000 Deg C Features Class A Accuracy Bakerlite Terminal Head Low Long Term Drift Rated for -20 to 1000 Deg C Max Available in custom lengths MIMS internal SS 304 Sheath Specification Fastron Part Number FTCN-3-200-C-1000-N-2P-C Sensor Type Type K Thermocouple No of Wires 2 Probe Length 200mm Sheath Thickness 3/12mm Sheath Material SS 304 Stainless Steel & Ceramic Al₂O₃, Accuracy Class A Cable length Ceramic Terminal Head Cable Type N/A Temperature Range -20 to 1000 Deg C Special Feature Ceramic Mounting Style Terminal Head Weight 300-500g Factory Pack Qty 1
$29.00
$34.22 inclGST
