Temperature Sensors
-

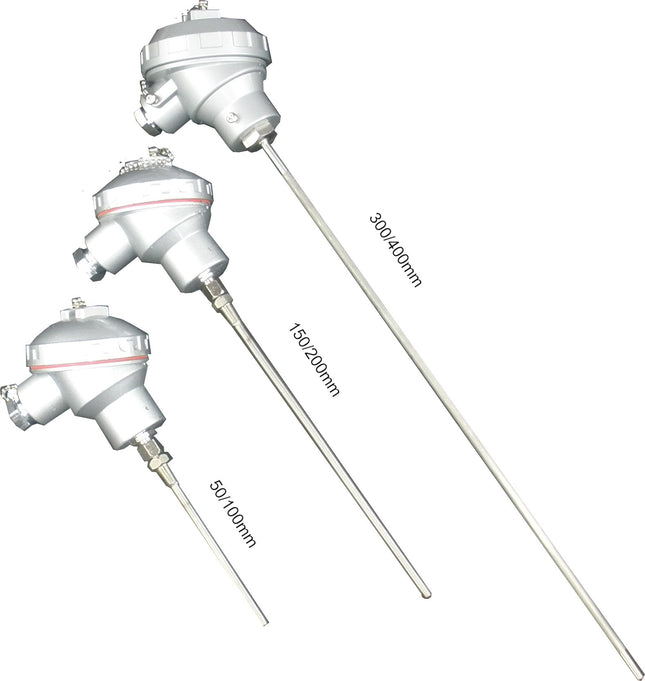

FTCK-6-50-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 50mm Probe Length, 6mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'')

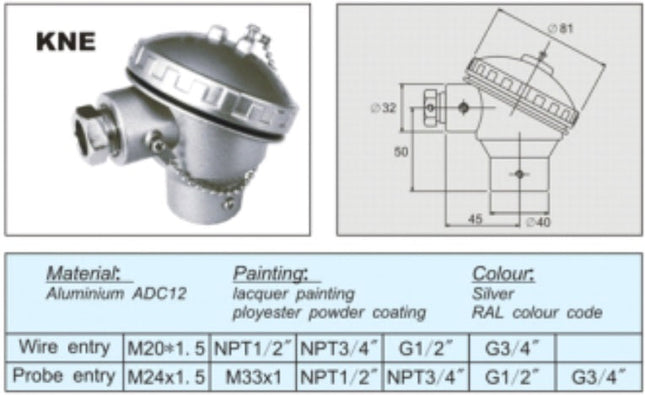

Fastron FTCK-6-50-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 50mm Probe Length, 6mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting , or Flange for mounting Specification Fastron Part Number FTCK-6-50-XX-420-0-300-KNE Sensor Type Type K Thermocouple No of Wires 2 Probe Length Various Sheath Thickness 6mm Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Large Terminal Head (105 x 70mm), M20x1.5, probe entry: G1/2'' Terminal Head Type Large Powder Coated Die Cast Alloy (Weather Proof), Cable Entry, M20 x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet
$219.00
$258.42 inclGST -
FTCK-3-500-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 500mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'')
Fastron FTCK-3-500-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 500mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting , or Flange for mounting Specification Fastron Part Number FTCK-3-500-XX-420-0-300-KNE Sensor Type Type K Thermocouple No of Wires 2 Probe Length 500mm Sheath Thickness 3mm Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Large Terminal Head (105 x 70mm), M20x1.5, probe entry: G1/2'' Terminal Head Type Large Powder Coated Die Cast Alloy (Weather Proof), Cable Entry, M20 x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet
$219.00
$258.42 inclGST -
FTCK-3-400-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 400mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'')
Fastron FTCK-3-400-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 400mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting , or Flange for mounting Specification Fastron Part Number FTCK-3-400-XX-420-0-300-KNE Sensor Type Type K Thermocouple No of Wires 2 Probe Length 400mm Sheath Thickness 3mm Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Large Terminal Head (105 x 70mm), M20x1.5, probe entry: G1/2'' Terminal Head Type Large Powder Coated Die Cast Alloy (Weather Proof), Cable Entry, M20 x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet
$219.00
$258.42 inclGST -
FTCK-3-300-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 300mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'')
Fastron FTCK-3-300-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 300mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting , or Flange for mounting Specification Fastron Part Number FTCK-3-300-XX-420-0-300-KNE Sensor Type Type K Thermocouple No of Wires 2 Probe Length 300mm Sheath Thickness 3mm Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Large Terminal Head (105 x 70mm), M20x1.5, probe entry: G1/2'' Terminal Head Type Large Powder Coated Die Cast Alloy (Weather Proof), Cable Entry, M20 x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet
$219.00
$258.42 inclGST -
FTCK-3-300-XX-420-0-200-KNE, Type K Thermocouple MIMS Class A, 200mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'')
Fastron FTCK-3-300-XX-420-0-200-KNE, Type K Thermocouple MIMS Class A, 200mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting , or Flange for mounting Specification Fastron Part Number FTCK-3-300-XX-420-0-200-KNE Sensor Type Type K Thermocouple No of Wires 2 Probe Length 300mm Sheath Thickness 3mm Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Large Terminal Head (105 x 70mm), M20x1.5, probe entry: G1/2'' Terminal Head Type Large Powder Coated Die Cast Alloy (Weather Proof), Cable Entry, M20 x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet
$219.00
$258.42 inclGST -
FTCK-3-150-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 150mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'')
Fastron FTCK-3-150-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 150mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting , or Flange for mounting Specification Fastron Part Number FTCK-3-150-XX-420-0-300-KNE Sensor Type Type K Thermocouple No of Wires 2 Probe Length Various Sheath Thickness 3mm Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Large Terminal Head (105 x 70mm), M20x1.5, probe entry: G1/2'' Terminal Head Type Large Powder Coated Die Cast Alloy (Weather Proof), Cable Entry, M20 x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet
$219.00
$258.42 inclGST -
FTCK-3-100-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 100mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'')
Fastron Type K Thermocouple MIMS Class A, Various Probe Lengths and Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting , or Flange for mounting Specification Fastron Part Number FTCK-X-XXX-XX-KNE Sensor Type Type K Thermocouple No of Wires 2 Probe Length Various Sheath Thickness 3/6mm (or Custom) Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Large Terminal Head (105 x 70mm), M20x1.5, probe entry: G1/2'' Terminal Head Type Large Powder Coated Die Cast Alloy (Weather Proof), Cable Entry, M20 x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet
$219.00
$258.42 inclGST -
FTCK-3-50-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 50mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'')
Fastron FTCK-3-50-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 50mm Probe Length, 3mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting , or Flange for mounting Specification Fastron Part Number FTCK-3-50-XX-420-0-300-KNE Sensor Type Type K Thermocouple No of Wires 2 Probe Length 50mm Sheath Thickness 3mm Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Large Terminal Head (105 x 70mm), M20x1.5, probe entry: G1/2'' Terminal Head Type Large Powder Coated Die Cast Alloy (Weather Proof), Cable Entry, M20 x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet
$219.00
$258.42 inclGST -
FTCK-CLIP-2000-PLUG-C, Type K, Clamp Probe for 60mm Product inside oven w/ 2000mm Steel Insulated Cable, 0 to 650 Deg C
Fastron FTCK-CLIP-2000-PLUG-C, Type K, Clamp Probe for 60mm Product inside oven w/ 2000mm Steel Insulated Cable, 0 to 650 Deg C Class A Accuracy Steel Insulated Cable Low Long Term Drift Rated for 0 to 650 Deg C Max Ceramic K Plug 60mm Jaw Clip Specification Fastron Part Number FTCK-CLIP-2000-PLUG-C Sensor Type Type K Thermocouple No of Wires 2 Shaft Length N/A Shaft Thickness N/A Approvals CE, ANSI, ROHS Accuracy Class A Cable length 2 Meter Cable Type Teflon/Screen/Teflon Temperature Range 0 to 650 Deg C Special Feature Clamp Jaw 60mm with Insulated steeel wire and Ceramic K Plug Mounting Style Clamp Jaw 60mm Weight 900g Factory Pack Qty 1
$200.00
$236.00 inclGST -

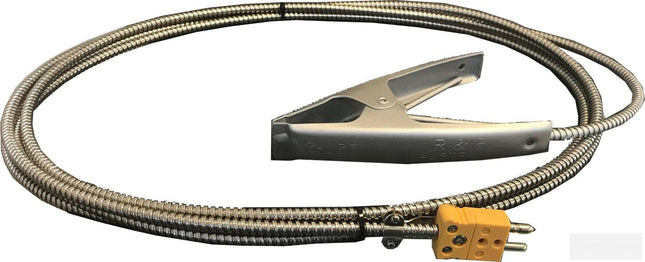

FTCK-CLIP-2000-PLUG, Type K, Clamp Probe for 60mm Product inside oven w/ 2000mm Steel Insulated Cable, 0 to 220 Deg C
Fastron Type K Thermocouple FTCK-CLIP-2000-PLUG, Type K, Clamp/Clip Probe for 60mm Product inside oven w/ 2000mm Steel Insulated Cable, 0 to 220 Deg C Class A Accuracy Steel Insulated Cable Low Long Term Drift Rated for 0 to 220 Deg C Max Spring Cable Connection 60mm Jaw Clip Specification Fastron Part Number FTCK-CLIP-2000-PLUG Sensor Type Type K Thermocouple No of Wires 2 Shaft Length N/A Shaft Thickness N/A Approvals CE, ANSI, ROHS Accuracy Class A Cable length 2 Meter Cable Type Teflon/Screen/Teflon Temperature Range 0 to 220 Deg C Special Feature Clamp Jaw 60mm with Insulated steeel wire and Thermoplastic K Plug Mounting Style Clamp Jaw 60mm Weight 900g Factory Pack Qty 1
$189.00
$223.02 inclGST -
FRTD-6-3-2000-2000 (ST5976), RTD 4 Wire MIMS, 3mm x 2000mm + 6mm x 50mm Tip. 2000mm 4 wire Teflon/Screened/Teflon cable, -50 to 350 Deg C
Fastron FRTD-6-3-2000-2000 Resistance Temperature Detectors (RTD's) Class A Accuracy CE, ANSI, ROHS Pt100 output 4 wire Teflon Cable Low Long Term Drift Rated for -50 to 350 Deg C Max 2000 x 3mm (6 x 50mm Tip) MIMS Specification Fastron Part Number FRTD-6-3-2000-2000 Sensor Type RTD - Resistance Temperature Detectors No of Wires 4 Shaft Length 2000mm Shaft Thickness 3mm (6mm Tip) Approvals CE, ANSI, ROHS Accuracy Class A Cable length 2 Meter Cable Type Teflon/Screened/Teflon Maximum Temperature -50 to 350 Deg C Special Feature Spring Cable Strain Relief Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 800g Factory Pack Qty 1 Datasheet Datasheet
$179.00
$211.22 inclGST -
7286 GTLHR051 7286, U-7286, Stokes Thermostat 60-150 Degrees Celcius 16A
7286 GTLHR051 7286, U-7286, Stokes Thermostat 60-150 Degrees Celcius 16A
$175.00
$206.50 inclGST
