Temperature Sensors
-
FTCN-3-300-C-1000-N-4P-B, Type N Ceramic Thermocouple for Oven, 300 x 3mm(~12mm) Probe w/Thermoplastic Terminals, -20 to 1000 Deg C
Fastron FTCN-3-300-C-1000-N-4P-B, Type N Ceramic Thermocouple for Oven, 300 x 3mm(~12mm) Probe w/Thermoplastic Terminals, -20 to 1000 Deg C Features Class A Accuracy Bakerlite Open Terminal Head Low Long Term Drift Rated for -20 to 1000 Deg C Max Available in custom lengths MIMS internal SS 304 Sheath Specification Fastron Part Number FTCN-3-300-C-1000-N-4P-B Sensor Type Type N Thermocouple No of Wires 2 Probe Length 300mm Sheath Thickness 3/12mm Sheath Material SS 304 Stainless Steel & Ceramic Al₂O₃, Accuracy Class A Cable length Bakerlite Terminal Head Cable Type N/A Temperature Range -20 to 1000 Deg C Special Feature Ceramic Mounting Style Terminal Head Weight 300-500g Factory Pack Qty 1
$29.00
$34.22 inclGST -

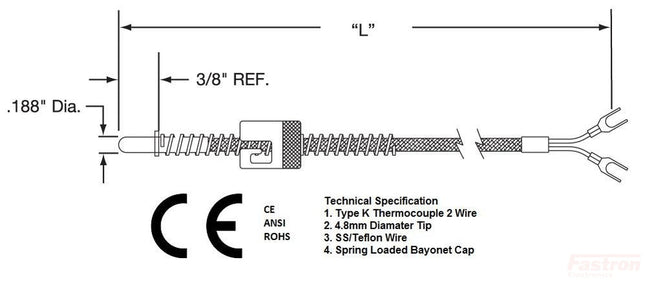

FTCK-5-PLAS-3000-B, Type K Class B, Thermocouple, Plastic Industry Style x 4.8mm Probe w/ 3000mm Screened Teflon/Braided SS cable, -20 to 1000 Deg C
Fastron FTCK-5-PLAS-3000-B 4.8mm Type K Metal Sheath Thermocouple with Spring Bayonet Cap Quick Release Fitting for Plastic Industry Class B Accuracy Teflon SS Braided Cable Low Long Term Drift Rated for -20 to 850 Deg C Max Spring Cable Connection 20 x 4.8mm MIMS Specification Fastron Part Number FTCK-5-PLAS-3000-B Sensor Type Type K Thermocouple No of Wires 2 Probe Length 20mm Sheath Thickness 5mm Sheath Material SS304 Stainless Steel Accuracy Class B Approvals N/A Cable length 3 Meters Cable Type Teflon/Braided Stainless Steel with Spring Bayonet Cap Temperature Range -20 to 350 Deg C Special Feature Quick Release Fitting, Strain Relief Spring Cable Mounting Style Quick Release Fitting Weight 300g Factory Pack Qty 1 Datasheet Datasheet
$29.00
$34.22 inclGST -
FTCK-5-PLAS-2000-B, Type K Class B, Thermocouple, Plastic Industry Style x 4.8mm Probe w/ 2000mm Screened Teflon/Braided SS cable, -20 to 1000 Deg C
Fastron FTCK-5-PLAS-2000-B, Type K Class B, Thermocouple, Plastic Industry Style x 4.8mm Probe w/ 2000mm Screened Teflon/Braided SS cable, -20 to 1000 Deg C Quick Release Fitting for Plastic Industry Class B Accuracy Teflon SS Braided Cable Low Long Term Drift Rated for -20 to 850 Deg C Max Spring Cable Connection 20 x 4.8mm MIMS Specification Fastron Part Number FTCK-5-PLAS-2000-B Sensor Type Type K Thermocouple No of Wires 2 Probe Length 20mm Sheath Thickness 5mm Sheath Material SS304 Stainless Steel Accuracy Class B Approvals N/A Cable length 2 Meters Cable Type Teflon/Braided Stainless Steel with Spring Bayonet Cap Temperature Range -20 to 350 Deg C Special Feature Quick Release Fitting, Strain Relief Spring Cable Mounting Style Quick Release Fitting Weight 260g Factory Pack Qty 1 Datasheet Datasheet
$27.00
$31.86 inclGST -
FRTD-Transmitter-0-100-420-24, Pt100, 4-20mA Transmitter, 0 to 100 Deg C, 24VDC Supply
Fastron FRTD-Transmitter-0-100-420-24, Pt100, 4-20mA Transmitter, 0 to 100 Deg C, 24VDC Supply Class A Accuracy Steel Insulated Cable Low Long Term Drift Rated for 0 to 220 Deg C Max Spring Cable Connection 60mm Jaw Clip Specification Fastron Part Number FRTD-Transmitter-0-100-420-24 Sensor Type Pt100 to 4-20mA Transmitter No of Wires 3 Shaft Length N/A Shaft Thickness N/A Accuracy Class B Temperature Range 0 to 400 Deg C Span/ Zero Adjustment YES Weight 50g Factory Pack Qty 1
$25.00
$29.50 inclGST -
FRTD-Transmitter-0-400-420-24, Pt100 , 4-20mA Transmitter, 0 to 400 Deg C, 24VDC Supply
Fastron FRTD-Transmitter-0-400-420-24, Pt100 , 4-20mA Transmitter, 0 to 400 Deg C, 24VDC Supply Class A Accuracy Steel Insulated Cable Low Long Term Drift Rated for 0 to 220 Deg C Max Spring Cable Connection 60mm Jaw Clip Specification Fastron Part Number FRTD-Transmitter-0-400-420-24 Sensor Type Pt100 to 4-20mA Transmitter No of Wires 3 Shaft Length N/A Shaft Thickness N/A Accuracy Class B Temperature Range 0 to 400 Deg C Span/ Zero Adjustment YES Weight 50g Factory Pack Qty 1
$25.00
$29.50 inclGST -
FRTD-Transmitter-0-200-420-24, Pt100 , 4-20mA Transmitter, 0 to 200 Deg C, 24VDC Supply
Fastron FRTD-Transmitter-0-200-420-24, Pt100 , 4-20mA Transmitter, 0 to 200 Deg C, 24VDC Supply Class A Accuracy Steel Insulated Cable Low Long Term Drift Rated for 0 to 220 Deg C Max Spring Cable Connection 60mm Jaw Clip Specification Fastron Part Number FRTD-Transmitter-0-200-420-24 Sensor Type Pt100 to 4-20mA Transmitter No of Wires 3 Shaft Length N/A Shaft Thickness N/A Accuracy Class A Temperature Range 0 to 200 Deg C Span/ Zero Adjustment YES Weight 50g Factory Pack Qty 1
$25.00
$29.50 inclGST -
FTCK-3-300-C-1000-N-2P-C, Type K Ceramic Thermocouple for Oven, 300 x 3mm (~12mm Ceramic) Probe w/Ceramic Terminals, -20 to 1000 Deg C
Fastron FTCK-3-300-C-1000-N-2P-C, Type K Ceramic Thermocouple for Oven, 300 x 3mm (~12mm Ceramic) Probe w/Ceramic Terminals, -20 to 1000 Deg C Features Class B Accuracy Ceramic Open Terminal Head Low Long Term Drift Rated for -20 to 1000 °C Max Availabel in custom lengths MIMS internal SS 304 Sheath Specification Fastron Part Number FTCK-3-300-C-1000-N-2P-C Sensor Type Type K Thermocouple No of Wires 2 Probe Length 300mm Sheath Thickness 3/12mm Sheath Material 304 Stainless Steel & Ceramic Al₂O₃, Accuracy Class A Cable length Ceramic Terminal Head Cable Type N/A Temperature Range -20 to 1000 °C Special Feature Ceramic Mounting Style Loose Weight 300-500g Factory Pack Qty 1
$25.00
$29.50 inclGST -
FTCK-Transmitter-0-300-420-24, Type K , 4-20mA Transmitter, 0 to 300 Deg C, 24VDC Supply
Fastron Type K Thermocouple FTCK-Transmitter-0-300-420-24, Type K , 4-20mA Transmitter, 0 to 300 Deg C, 24VDC Supply Class A Accuracy Steel Insulated Cable Low Long Term Drift Rated for 0 to 220 Deg C Max Spring Cable Connection 60mm Jaw Clip Specification Fastron Part Number FTCK-Transmitter-0-300-420-24 Sensor Type Type K to 4-20mA Transmitter No of Wires 2 Shaft Length N/A Shaft Thickness N/A Accuracy Class A Temperature Range 0 to 300 Deg C Span/ Zero Adjustment YES Weight 50g Factory Pack Qty 1
$15.00
$17.70 inclGST -

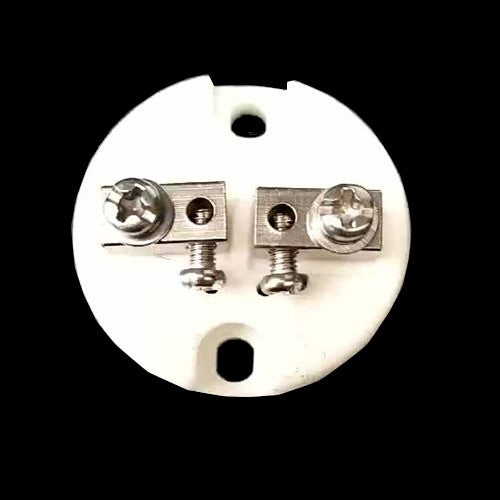

S-2P-C, 2 Pole Ceramic Terminals for Thermocouple
Fastron S-2P-C, 2 Pole Ceramic Terminals for Thermocouple Rated for 0 to 650 Deg C Max Specification Fastron Part Number S-2P-C Sensor Type For RTD's or Thermocouples No of Wires 3 Shaft Length N/A Shaft Thickness N/A Accuracy N/A Temperature Range Up to 650 Deg C Span/ Zero Adjustment YES Weight 50g Factory Pack Qty 1
$12.00
$14.16 inclGST
