Slimline Relays and Sockets

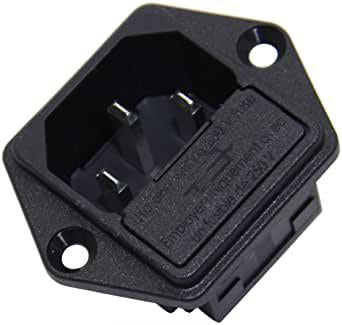

Schurter 6200.2100, IEC Appliance Inlet C14, Screw Panel Mounting, Front Side, Solder Terminals, with Fuse Drawer Features Panel Mount : Srew Mounting from Front Side Appliance Inlet C14/M Socket acc to IEC 60320-1 70 °C pin Temperature Solder Terminals Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Thickness versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Schurter Part Number 6200.2100 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Panel Thickness N/A Screw Mounted Operating Temperature -25°C to 120°C Filter Type N/A Fuse Holder N/A Line Switch N/A Mounting Panel Mount with Screws Material Thermoplastic, black, UL 94V-0 Termination Style C14 Male to Quick Connects Weight 25g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes   Datasheet Product Datasheet

Read more less

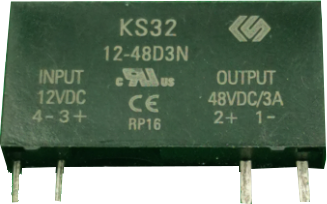

Keysolu KS32/12-48D3N, Slimline Relay, 12VDC Coil, 48VDC 3 Amp Load Features Output 3.5Amp @ 24VDC 15-30VDC Control input DIN Rail Mount Ultra slim package CE Compliant to IEC 60664 IP67 Specification Crydom Part Number KS32/12-48D3N Switching Type 48VDC 3 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 12VDC Load Current 3 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 48VDC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20   Datasheet Relay Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket

Read more less

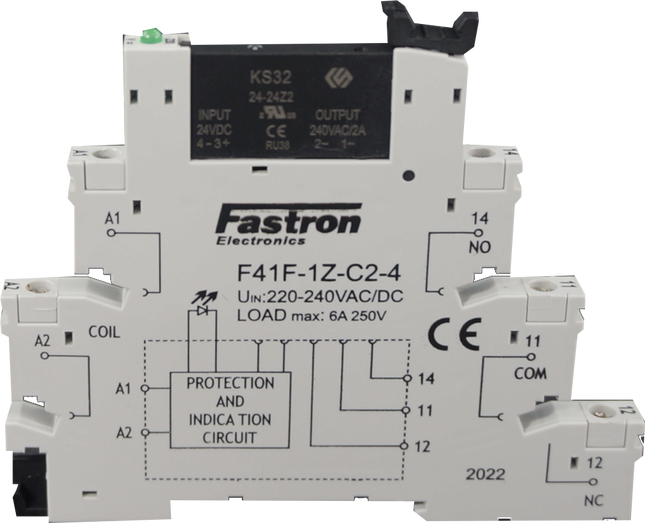

Keysolu KS32 24-24Z2 & F41F-1Z-C2-1, Slim Solid State Relay & Socket with Screw Terminals 24VDC Input, 2 Amp @ 240VAC Features Multirange input 12-24VAC/DC Nominal Load Rating 2 Amp @ 240VAC DIN Rail Mount Ultra slim package UL Listed (Hongfa make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number KS32 24-24Z2 & F41F-1Z-C2-1 Switching Type 240VAC Control Input 24VDC+/-10% Current @ Rated Voltage 2 Amp Contact Arrangement 1 x Slim SSRSPST Approvals UL,CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Control Input Power 25mA Relay Type Keysolu KS32 24-24Z2 Termination Style Screw Terminals Unit Weight 60g Factory Pack Qty 100   Datasheet Relay Base Datasheet Relay Datasheet

Read more less

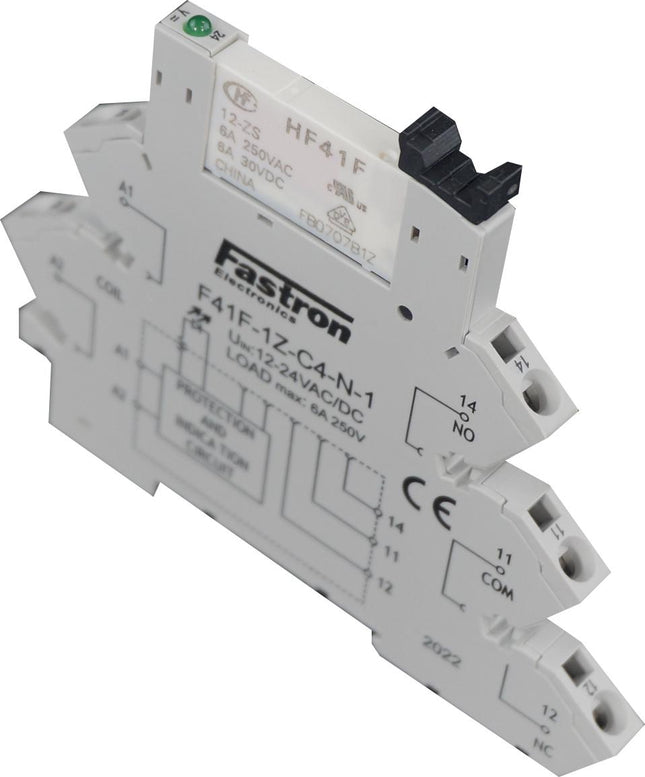

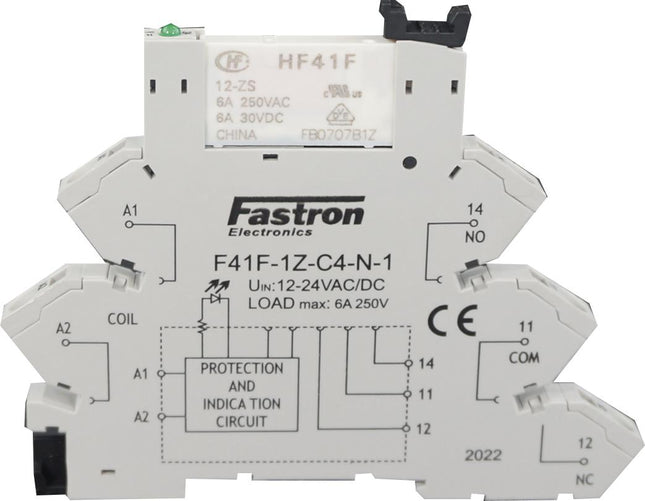

Fastron Electronics F41F-1Z-C4-1-12VDC, Slim Relay & Socket with Spring Terminals 12VDC Input, 6 Amp @ 30VDC/250VAC Features Multirange input 12VDC Nominal Load Rating 6 Amp @ 30VDC/250VAC DIN Rail Mount Changeover Contact Ultra slim package UL Listed (Hongfa make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-1Z-C4-1-12VDC Switching Type 250VAC or 30VDC Load Control Input 12V DC+/-10% Current @ Rated Voltage 6 Amp Contact Arrangement 1 C/O (Single Pole Changeover) Approvals UL, CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Coils Power 12mA Relay Type Fastron F41F-24Z Termination Style Spring Terminals Unit Weight 60g Factory Pack Qty 100   Datasheet Datasheet

Read more less

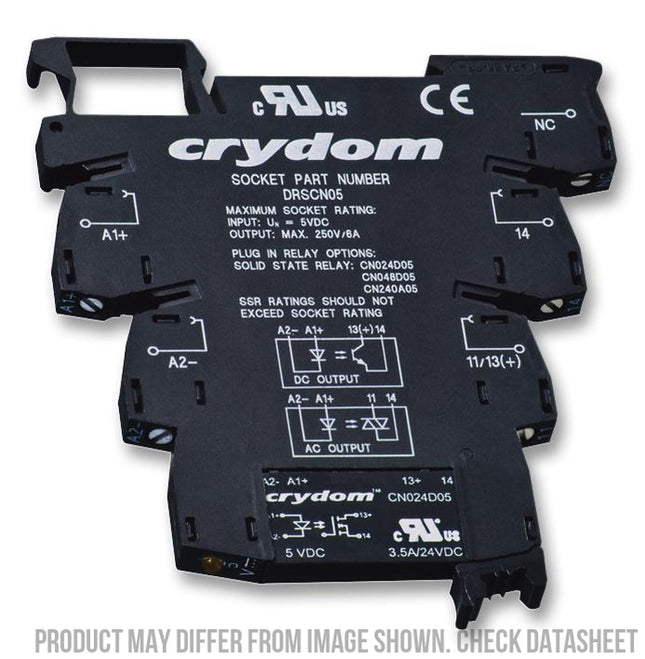

Crydom DRA-CN240A05, Slimline Relay & Socket, 3-12VDC Coil, 2 Amp 24-280VAC Load Features Output 2Amp @ 250VAC 3-12VDC Control input DIN Rail Mount Ultra slim package CE Compliant to IEC 60664 IP67 Specification Crydom Part Number DRA-CN240A24 Switching Type 250VAC 2 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 3-12VDC Load Current 2 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 250VAC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20   Datasheet Relay Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket

Read more less

Crydom DR06D03, Solid State Relay, 4-32VDC control, 3 Amp 1-60VDC Output, Slimline, Din Rail Mount, LED status Indicator Features Ratings from 3 Amp, 1-100VDC, 1-60VDC, 24-280VAC, 48-600VAC DIN Rail Mount SCR output for reliable AC switching, or Mosfet for DC Switching Ultra slim package UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DR06D03 Switching Type DC ROHS Yes (Details) Control Voltage 4-32VDC Load Current 3 Amp (rms) Surge Capability (10ms) 60 Amp (peak) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 1-60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 38g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent DRA1-CMX60D10 ED06C5 ED06D5 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

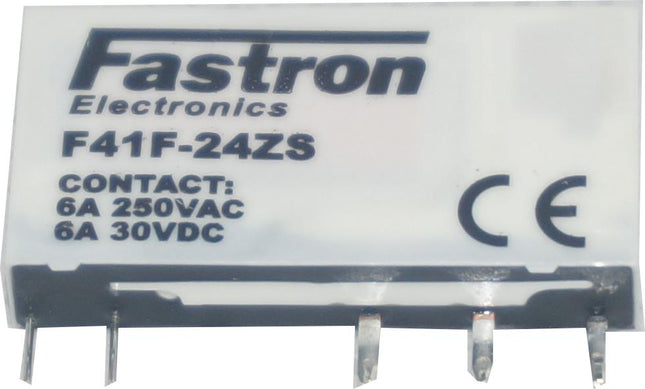

Fastron F41F-24Z, Slimline Relay, 24VAC/DC Coil, 6 Amp Features Output 6Amp @ 30VDC or 250VAC 12/24VAC/DC Control input DIN Rail Mount Changeover Contact Ultra slim package CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-24Z Switching Type 250VAC, 30VDC Load C/O Relay Contact Approvals UL, CE ROHS Yes (Details) Control Voltage 24V AC/DC Nominal Load Current 6 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-24VAC/DC) Load Voltage Range 250VAC, 30VDC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20   Datasheet Relay & Base Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket

Read more less

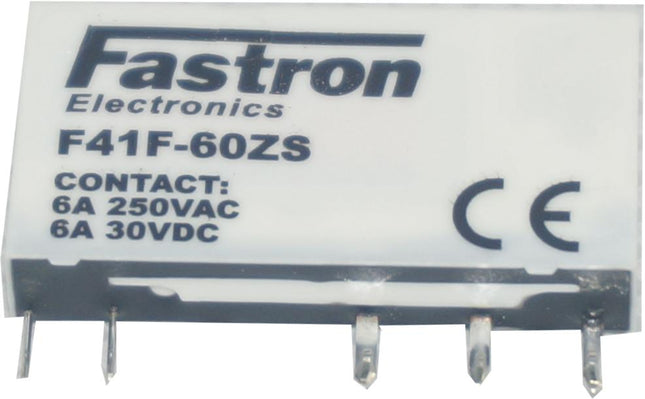

Fastron F41F-60ZS, Slimline Relay, 60VDC, 6 Amp, to Suit 240VAC Coil Socket Features Output 6Amp @ 30VDC or 250VAC 60VDC Control input DIN Rail Mount Changeover Contact Ultra slim package CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-60ZS Switching Type 250VAC, 30VDC Load C/O Relay Contact Approvals UL, CE ROHS Yes Control Voltage 60VDC Nominal Load Current 6 Amp (rms) Special Feature LED Status Indicator Mounting Style PCB or Socket Mount (F41F-1Z-C4-N-4-240VAC Socket) Load Voltage Range 250VAC, 30VDC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20   Datasheet Relay & Base Datasheet

Read more less

Crydom DR06D12, Solid State Relay, 4-32VDC control, 12 Amp 1-60VDC Output, Slimline, Din Rail Mount, LED status Indicator Features Ratings from 3 Amp, 1-100VDC, 1-60VDC, 24-280VAC, 48-600VAC DIN Rail Mount SCR output for reliable AC switching, or Mosfet for DC Switching Ultra slim package UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DR06D12 Switching Type DC ROHS Yes (Details) Control Voltage 4-32VDC Load Current 12 Amp (rms) Surge Capability (10ms) 60 Amp (peak) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 1-60VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 38g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent DRA1-CMX60D10 ED06C5 ED06D5 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less
