Slimline Relays and Sockets
-

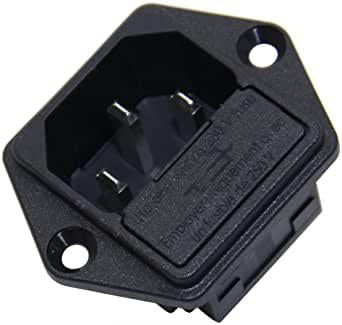

6200.2300, IEC Appliance Inlet C14, Screw Panel Mounting, Front Side, Quick Connect Terminals 6.3 x 0.8mm, with Fuse Drawer
Schurter 6200.2300, IEC Appliance Inlet C14, Screw Panel Mounting, Front Side, Quick Connect Terminals 6.3 x 0.8mm, with Fuse Drawer Features Panel Mount : Srew Mounting from Front Side Appliance Inlet C14/M Socket acc to IEC 60320-1 70 °C pin Temperature Quick Connect Terminals Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 120 °C, 10A, Protection Class I Other Thickness versions available on request Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1 Specification Schurter Part Number 6200.2300 Rated Voltage 250V Rated Current 10A (CE) 15A (UL/CSA) Panel Thickness N/A Screw Mounted Operating Temperature -25°C to 120°C Filter Type N/A Fuse Holder N/A Line Switch N/A Mounting Panel Mount with Screws Material Thermoplastic, black, UL 94V-0 Termination Style C14 Male to Quick Connects Weight 25g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV VDE/UL/CSA/CE/ROHS Yes Datasheet Product Datasheet
$17.95
$21.18 inclGST -
4301.1401, Fuse Drawers for Fuse Links 5x20mm suits various IEC inlet including KM01.1105.11
4301.1401, Fuse Drawers for Fuse Links 5x20mm suits various IEC inlet including KM01.1105.11 Product Datasheet
$6.50
$7.67 inclGST -
F41F-S, Spacer for F41F Series Slim Relays
Fastron Electronics F41F-S, Spacer for F41F Series Slim Relays Features DIN Rail Mount Changeover Contact Ultra slim package UL Listed Specification Fastron Part Number F41F-S Approvals UL94V0 Dimensions 76.6 x 94.7 x 6.2 Suits Relay Type Fastron F41F Series Unit Weight 10g Factory Pack Qty 100 Datasheet Datasheet
$2.00
$2.36 inclGST -

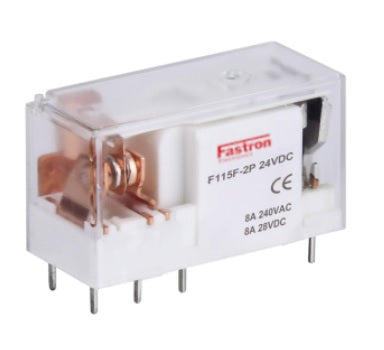

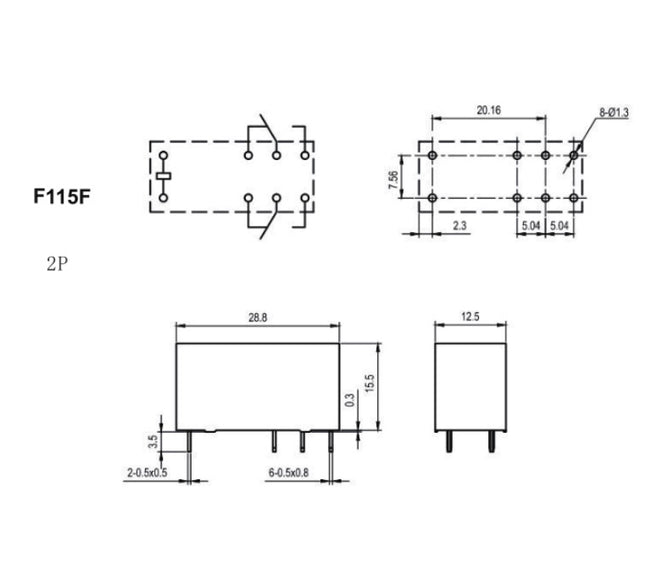

F115F-2PS 8A 24VDC, Slimline Relay, DPDT 2 x 8 Amp, for F41F 2 PS Series Slimline 2 Pole Sockets
Fastron Electronics F115F-2PS 8A 24VDC, Slimline Relay, DPDT 2 x 8 Amp, for F41F 2 PS Series Slimline 2 Pole Sockets Features 2 x 8 Amp @ 24VDC/230VAC DIN Rail Mount 2 x Changeover Contacts Ultra slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number F41F-2Z-C2-1 12~24VAC/DC & F115F-2PS 8A 24VDC Switching Type 230VAC/30VDC 2 x 8 Amp Control Input 24VDC Current @ Rated Voltage 2 x 8 Amp Contact Arrangement 2 x SPDT C/O (Double Pole Changeover) Approvals UL, CE Dimensions 76 x 89.5 x 14mm Ingress Protection IP20 Relay Type Fastron F41F Series Termination Style Screw Unit Weight 80g Factory Pack Qty 100 Datasheet Relay Datasheet Relay base
$13.00
$15.34 inclGST -

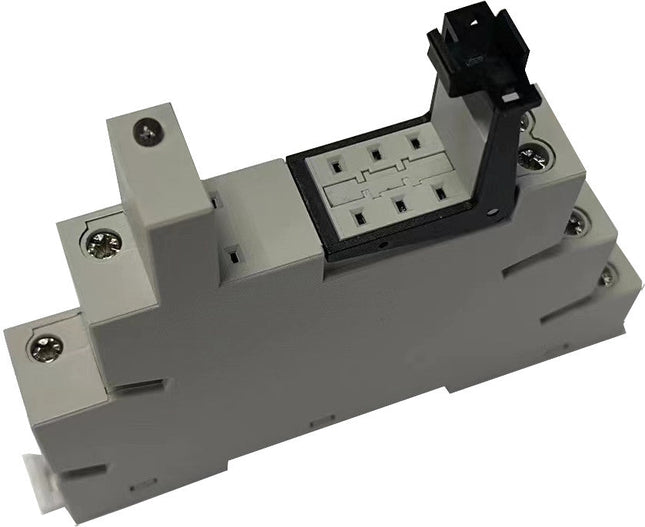

F41F-2Z-C2-1 12~24VAC/DC & F115F-2PS 8A 24VDC, Slimline Relay DPDT 2 x 8 Amp and Socket with Screw Terminals, for F115F Series for 24VDC Coil
Fastron Electronics F41F-2Z-C2-1 12~24VAC/DC & F115F-2PS 8A 24VDC, Slimline Relay DPDT 2 x 8 Amp and Socket with Screw Terminals, for F115F Series for 24VDC Coil Features 6 Amp @ 1-36 VDC DIN Rail Mount Changeover Contact Ultra slim package UL Listed CE Compliant to IEC 60664 IP20 Specification Fastron Part Number F41F-2Z-C2-1 12~24VAC/DC & F115F-2PS 8A 24VDC Switching Type 230VAC/24VDC 2 x 8 Amp Control Input 24VDC Current @ Rated Voltage 2 x 8 Amp Contact Arrangement 2 x SPDT C/O (Double Pole Changeover) Approvals UL, CE Dimensions 76 x 89.5 x 14mm Ingress Protection IP20 Relay Type Fastron F41F Series Termination Style Screw Unit Weight 80g Factory Pack Qty 100 Datasheet Relay Datasheet Relay base
$33.00
$38.94 inclGST -

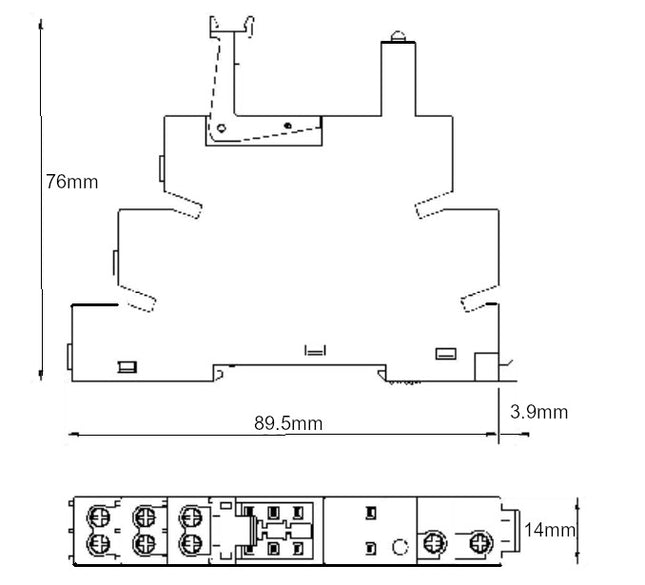

F41F-2Z-C2-1 12~24VAC/DC, Slimline SOCKET ONLY with Screw Terminals, for F115F Series for 12-24VAC/DC Coil
Fastron Electronics F41F-2Z-C2-1 12~24VAC/DC, Slimline SOCKET ONLY with Screw Terminals, for F115F Series for 12-24VAC/DC Coil Features 6 Amp @ 1-36 VDC DIN Rail Mount Changeover Contact Ultra slim package UL Listed CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-2Z-C2-1 12~24VAC/DC Switching Type 250VAC or 30VDC Load Control Input 12-24VAC/DC Current @ Rated Voltage 2 x 8 Amp Contact Arrangement 2 x SPDT C/O (Double Pole Changeover) Approvals UL, CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Relay Type Fastron F41F Series Termination Style Screw Unit Weight 80g Factory Pack Qty 100 Datasheet Datasheet Suitable Parts F41F-60ZS
$22.00
$25.96 inclGST -
KS32/60-24Z2, Slimline Relay, 60VDC Coil, 2 Amp 24-280VAC Load
Keysolu KS32/60-24Z2, Slimline Relay, 60VDC Coil, 2 Amp 24-280VAC Load Features Output 2Amp @ 250VAC 24VDC Control input DIN Rail Mount Ultra slim package CE Compliant to IEC 60664 IP67 Specification Keysolu Part Number KS32/60-24Z2 Switching Type 250VAC 2 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 60VDC (For use with F41F-1Z-C2-4 Base for 230VAC Coil input) Load Current 2 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-4) Load Voltage Range 250VAC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20 Datasheet Relay Datasheet F41F-1Z-C2-4
$21.00
$24.78 inclGST -

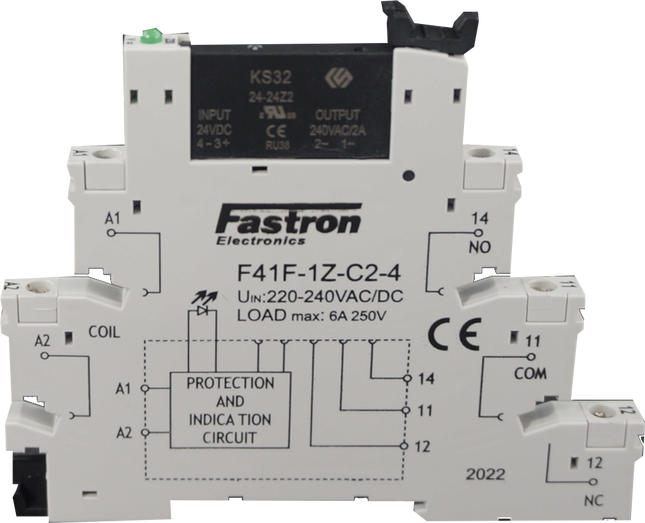

KS32/24-48D3N & F41F-1Z-C2-1, Slim Solid State Relay & Socket with Screw Terminals 24VDC Input, 3 Amp @ 48VDC
Keysolu KS32/24-48D3N & F41F-1Z-C2-1, Slim Solid State Relay & Socket with Screw Terminals 24VDC Input, 4 Amp @ 48VDC Features Multirange input 12-24VAC/DC Nominal Load Rating 6 Amp @ 30VDC/250VAC DIN Rail Mount Ultra slim package UL Listed (Keysolu make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number KS32/24-48D3N & F41F-1Z-C2-1 Switching Type 240VAC Control Input 24VDC+/-10% Current @ Rated Voltage 3 Amp Contact Arrangement 1 SPST Approvals UL,CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Control Input Power 25mA Relay Type Keysolu KS32 24-24Z2 Termination Style Spring Terminals Unit Weight 60g Factory Pack Qty 100 Datasheet Relay Base Datasheet Relay Datasheet
$32.00
$37.76 inclGST -

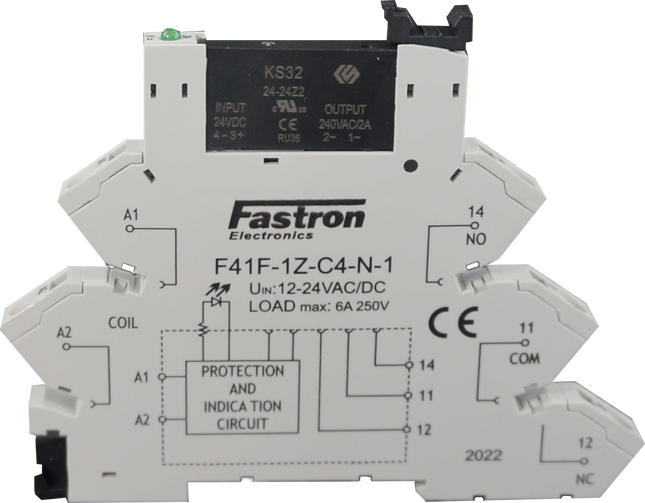

KS32/24-48D3N & F41F-1Z-C4-1, Slim Solid State Relay & Socket with Spring Terminals 24VDC Input, 3 Amp @ 48VDC
Keysolu KS32/24-48D3N & F41F-1Z-C4-1, Slim Solid State Relay & Socket with Spring Terminals 24VDC Input, 4 Amp @ 48VDC Features Multirange input 12-24VAC/DC Nominal Load Rating 6 Amp @ 30VDC/250VAC DIN Rail Mount Ultra slim package UL Listed (Hongfa make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number KS32/24-48D3N & F41F-1Z-C4-1 Switching Type 240VAC Control Input 24VDC+/-10% Current @ Rated Voltage 3 Amp Contact Arrangement 1 SPST Approvals UL,CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Control Input Power 25mA Relay Type Keysolu KS32 24-24Z2 Termination Style Spring Terminals Unit Weight 60g Factory Pack Qty 100 Datasheet Relay Base Datasheet Relay Datasheet
$32.00
$37.76 inclGST -
229-3-1-65-5-9-90, Air Pax Circuit Breaker for Hydraulics, Supplementary Protector (UL 1077), 3 Pole, Series, 5/60Hz long delay with high pulse, 277/480VAC,100 Amp, 1/4 "-20 Stud (50 Amps Max),90 Amp Switch Rating
229-3-1-65-5-9-90, Air Pax Circuit Breaker for Hydraulics, Supplementary Protector (UL 1077), 3 Pole, Series, 5/60Hz long delay with high pulse, 277/480VAC,100 Amp, 1/4 "-20 Stud (50 Amps Max),90 Amp Switch Rating Features : 3 Pole, Series 50/60Hz long delay with high pulse 277/480VAC,100 Amp 1/4 "-20 Stud (50 Amps Max), 90 Amp Switch Rating Applications : Hydraulic/Magnetic Circuit Protection Supplementary Protector (UL 1077) Specification Sensata - Klixon Part Number 229-3-1-65-5-9-90 Supply Voltage 277/480VAC Dimensions Application Supplementary Protector (UL 1077) Trip Level Relay 90 Amp Protection IP20 Approvals Trip Time of Assembly Sensing Coil Voltage Limit Operating Temnperature -35 to 66 Deg C Weight 1000g Mounting Style Din Rail Datasheet Product Datasheet
$736.90
$869.54 inclGST -

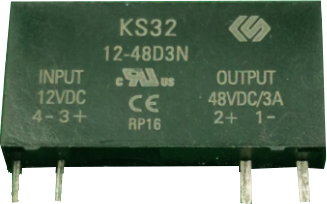

KS32/24-48D3N, Slimline Relay, 24VDC Coil, 48VDC 3 Amp Load
Keysolu KS32/24-48D3N, Slimline Relay, 24VDC Coil, 48VDC 3 Amp Load Features Output 3.5Amp @ 24VDC 15-30VDC Control input DIN Rail Mount Ultra slim package CE Compliant to IEC 60664 IP67 Specification Crydom Part Number KS32/24-48D3N Switching Type 48VDC 3 Amp Load SSR Approvals UL, CE ROHS Yes (Details) Control Voltage 24VDC Load Current 3 Amp (rms) Special Feature LED Status Indicator Mounting Style Socket Mount (F41F-1Z-C2-5 12-14VAC/DC) Load Voltage Range 48VDC Load EMC Compliant Level 3 Termination Style PCB or Socket Mount Unit Weight 6g Factory Pack Qty 20 Datasheet Relay Datasheet F41F-1Z-C2-5 12-14VAC/DC Socket
$25.00
$29.50 inclGST -
KS32 24-24Z2 & F41F-1Z-C4-1, Slim Solid State Relay & Socket with Spring Terminals 24VDC Input, 2 Amp @ 240VAC
Keysolu KS32 24-24Z2 & F41F-1Z-C4-1, Slim Solid State Relay & Socket with Spring Terminals 24VDC Input, 2 Amp @ 240VAC Features Multirange input 12-24VAC/DC Nominal Load Rating 2 Amp @ 240VAC DIN Rail Mount Ultra slim package UL Listed (Keysolu make) CE Compliant to IEC 60664 IP67 Specification Fastron Part Number KS32 24-24Z2 & F41F-1Z-C4-1 Switching Type 240VAC Control Input 24VDC+/-10% Current @ Rated Voltage 2 Amp Contact Arrangement 1 SPST Approvals UL,CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Control Input Power 25mA Relay Type Keysolu KS32 24-24Z2 Termination Style Spring Terminals Unit Weight 60g Factory Pack Qty 100 Datasheet Relay Base Datasheet Relay Datasheet
$32.00
$37.76 inclGST
