Recommended products

LEM DHAB S/118 Series O/L Automotive AC/DC Current Transducer, Multirange Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Range up to +/-30A, and +/-350A for Channel 2 Maximum RMS primary admissable current: defined by busbar to have T° < +150°C Operating Temperature Range: -40°C < T° < +125°C Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles Specification LEM Part Number DHAB S/118 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current Channel 1 (RMS) +/-30 Amp Load Current Channel 2 (RMS) +/-350 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth(-3dB) DC - 1.1kHz Mounting Style Panel Mount/Cable Mount Aperture ⌀22.5mm Operating Temperature Range -40°C - 70°C CH1 Accuracy @ 25 Deg C 0.15%(0A),0.45%(20A),0.7%(30A) CH2 Accuracy @ 25 Deg C 1%(0A),3.5%(175A),5%(350A) Termination Style TYCO 1-1456426-5 Unit Weight 100g Factory Pack Qty 6 Datasheet Product Datasheet

Read more less

RCS-3605-VAR, 5 Amp Output, Class 1 Three Phase 500/1000/2500/5000\10000\25000\50000 Amp AC Measurement 12 Inch Diameter Rogowski Coils with Integrator Flexible Current Sensor System (Rogowski Coils): The RCS-3605 three-phase flexible rope CT from Magnelab converts AC input current of up to 5000 amperes to an AC output of 5 Amp. A 24VDC Power Supply is included to operate these coils. The RCS-3605 comes with 5 Amp integrator.. Included is an 36 inch circumference rope CT with Integrator, and power supply. Magnelab Coils come with 10 year warranty   Specification Magnelab Part Number RCS-3605-VAR Function AC Current Measurement Nominal Measurement Current (Ipn) 500/1000/2500/5000\10000\25000\50000 Amp RMS Selectable Measurement Range 10% - 130% if Ipn Output Range 0-5 Amp Frequency Measuring Range 50-1500Hz (15th Harmonic) Operating Voltage 24VDC Accuracy 1% from 25 to 5000 Amp Phase Angle < 0.5 Degrees Coil Diameter (⌀) 12 Inch Coil Circumference 36 Inch Integrator to Coil Cable 8 Feet Shielded Maximum Voltage 600V (on bare conductor) Operating Temperature -15°C to 65°C Storage Temperature -45°C to 80°C Power Consumption < 2VA Overload 20,000 Amp (continuous) Termination Style Screw Weight 3500g Certification CE Factory Pack Qty 1 Certifications UL Recognized E96927 to IEEE C57.13, CAN/CSA 60044-1 Meets UL STD 61010-1, CAN/CSA C22.2 No. 61010 CE ROHS Datasheet Product Datasheet Application Notes RCS-VAR Series Installation Guide

Read more less

Fastron Electronics SCT-F24-250-40mA, 40mA, 250Amp measurement Split Core CT's's, Class 1 Series Current Transformer Features Quick Release Split Core System Cable Mount 40mA Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number SCT-F24-250-40mA Technology Split Core AC Current Transformer Ratio 250/0.40 Amp Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 40mAmp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 250Amp x 1.2 Termination Style 0.9M Flying leads Unit Weight 100g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics SCT-F36-400-40mA, 40mA, 400Amp Measurement, Class 1 Split Core CT's Features Quick Release Split Core System Cable Mount 40mA Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number SCT-F36-400-40mA Technology Split Core AC Current Transformer Ratio 400/040 Amp Aperture Size ø 35 mm VA Rating N/A Accuracy Class Class 1 Output .40 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 400Amp x 1.2 Termination Style 0.9M Flying leads Unit Weight 400g Factory Pack Qty 9   Datasheet Product Datasheet Stocked Split Core CT's Listing Application Notes Installation Guide Types of Current Transformers - Blog Cable Losses and CT's High Accuracy or High Burden Requirements for CT's

Read more less

FP160125P, 1600/5 Amp Split Core CT, Class 0.5, 7.5VA Series Clip On Current Transformer Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FP160125P Technology Split Core AC Clip On Current Transformer Ratio 1600/5 Aperture Size 85 x 120mm VA Rating 7.5VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10°C / 50°C Continuous Current (max) 1500Amp x 1.2 Termination Style Screw Approvals CE Unit Weight 1150g Factory Pack Qty 1   Datasheet Product Datasheet Installation Guide

Read more less

SDM230-Modbus-MID-V2, DIN Rail Mount kWh Meter, Single Phase, 240VAC aux, Class 1, 100Amp Direct Connect, w/ 2 x pulse outputs and RS485 Modbus RTU Comms, MID Approved, SAA212516 100 amp Direct Connect LoRaWaN AS923 communication Optional Mbus Model available True RMS values of currents and voltages 1 x Configurable Pule Output (via Display Menu or Modbus) 1 x Fixed Pulse Output (1000imp/kwh) SAA Approved   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.   Features : Accuracy Class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Europe Part Number SDM230-Modbus-MID-V2 Functions Single Phase Energy Meter Supply Voltage 230V L-N +/-15% < 5VA Nominal Measurement Range 230V L-N 230V L-N, 100 Amp Maximum Measurement Range 276 L-N 230V L-N,100 Amp Nominal Current Input Direct connect 100 Amp Pulse Output 2 x Passive, (1 x Configurable 60/100/200ms) Tariff Input N/A Accuracy Class 1 (I,U,F,kW,kWh) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 36mm x 100mm x 66mm (2 modules wide) Isolation 4kV LoRaWaN LoRaWAN AS923 Weight 250g Certification EN 61010-1 Installation Category III, SAA212516 Factory Pack Qty 1 Safety IP51(Indoor) Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 4 Modules Operating Temperature -20 →+70 °C   Documents Product Datasheet User Manual Modbus Protocol Modbus Utility EEM Meter Setting Software Utility

Read more less

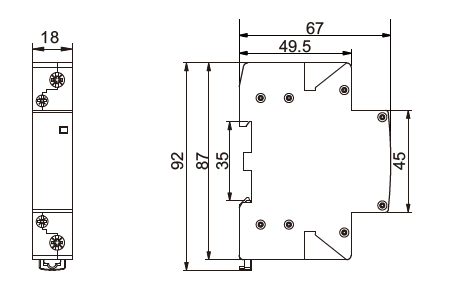

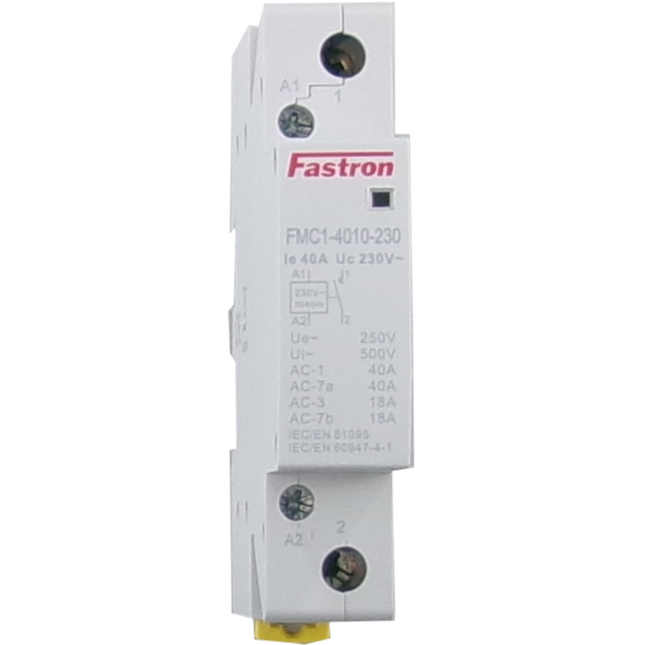

Fastron Electronics FMC1-4010-230, 1 Pole 1 x SPST NO, Modular Contactor 250VAC 40 Amp (AC-1), 230VAC 50/60Hz Control Voltage Features 40 Amp (rms) @ 250VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FMC1-4010-230 Switching Type 1 x SPST NO Approvals CE Coil Voltage 230VAC 50/60Hz Load Current (RMS/DC) 40 Amp (rms) @ 250VAC AC-1,AC-7a / 18 Amp (rms) AC-3 /AC-7b Special Feature 40 Amp in Single DIN Width (18mm) Mounting Style DIN Rail Mount Load Voltage Range 250VAC 50/60Hz Insulation Voltage 500VAC Isolation 2.5kV Termination Style Screw Unit Weight 130g Factory Pack Qty 20 Datasheet Contactor Datasheet

Read more less

Gigavac P195CDA, Contactor SPST-NO, 80 AMP, 1200VDC, 24VDC Coil Contactor Features Perfect for Photovoltaic/Battery Systems Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation Chassi level power terminals Specification Gigavac Part Number P195CDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 24VDC Load Current 80 Amp Mechanical Life @ 0 Amp 100,000 Operations Dielectric at Sea Level 4.3kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

LEM CAB 500-C/SP5, Fluxgate Automotive Battery Sensor, +/-500Amp Measurement, 12VDC Supply, 24.2mm ø Aperture, Accuracy = 0.5%, Unlimited Overcurrent Capability, Cable Mount, Programmable Can Bus ID Features Transducer using Fluxgate technology +/-530Amp Measurement 12VDC Supply Accuracy = 0.5% Wide Temperature Range -40 to 105°C Unlimited Overcurrent Capability Panel Mount CAN Bus ID (Programmable) Nanocrystalline Magnetic Core Advantages No Offset Error High Accuracy Low Linearity Error Full Galvanic Seperation Austomotive Applications Hybrid and Electric Vehicle Battery Packs Conventional Lead Acid Batteries Accurate measurement for battery management applications Specification LEM Part Number CAB 500-C/SP5 Technology DC Hall Effect Protection Class See Datasheet Supply Voltage 8 - 16VDC Load Current (RMS) -530 to 530 Amp Output CAN.C Bus (500kbps) ver 2.0A/B CAN Bus ID Programmable Electrostatic Discharge Voltage 4kV at pinout Isolation 2.5kV (50Hz, 1min) Aperture ø 24.2mm Mounting Style Panel Mount Operating Temperature Range -40 to 105°C Accuracy 0.5% Termination Style Tyco=AMP P/N:1 473672-1 Unit Weight 67g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron F157FT 1PL 12A 24VDC + F157F-1Z-C3 Series SPDT 12 Amp, Form C Din Rail Mount AC/DC Relay, 24VDC Coil Features 1 x SPDT 16 Amp @ 250VAC or 30VDC DIN Rail Mount Changeover Contact Slim package Compatible with Omron G2R-1-S Series UL Approved CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 socket Specification Fastron Part Number F157FT1PL 12A 24VDC + F157F-1Z-C3 Switching Type 1 x SPDT 30VDC/250VAC C/O Form C Approvals UL, CE Coil Voltage 230VAC Load Current 1 x 12 Amp (rms) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 60g Factory Pack Qty 20   Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3 Relay Replacement F157FT1PL 12A 24VDC

Read more less

Fastron Electronics SCT-F50-250-5A, 5 Amp, 250Amp measurement Split Core CT's Features Quick Release Split Core System Cable Mount 5 Amp Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number SCT-F50-250-5A Technology Split Core AC Current Transformer Ratio 250/5 Amp Aperture Size ø 50 mm VA Rating N/A Accuracy Class Class 1 Output 5 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 250Amp x 1.2 Termination Style 0.9M Flying leads Unit Weight 1000g Factory Pack Qty 9   Datasheet Product Datasheet Stocked Split Core CT's Listing Application Notes Installation Guide Types of Current Transformers - Blog Cable Losses and CT's High Accuracy or High Burden Requirements for CT's

Read more less

Fastron Electronics SCT-F24-100, 100 Amp, 0.333v Class 1 Series Current Transformer Features Quick Release Split Core System Cable Mount 0.333v Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number SCT-F24-100 Technology Split Core AC Current Transformer Ratio 100/0.333v Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0.333v (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 100Amp x 1.2 Termination Style 0.9M Flying leads Unit Weight 100g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide

Read more less
