Rishabh DS96/400A/4-20mA Moving Coil Ammeter 400Amp AC/DC for 400A/4-20mADC Analogue Input Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/400A/4-20mA Nominal Measurement Range 0 - 400 Amp AC/DC Shunt Input 4-20mA Unipolar Maximum Measurement Range 400 Amp Over Range Ipn x 2 Operating Temperature 0 - 50??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Rishabh DS96/300A/4-20mA, Moving Coil Ammeter 300Amp AC/DC for 300A/4-20mADC Analogue Input Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/300A/4-20mA Nominal Measurement Range 0 - 300 Amp AC/DC Shunt Input 4-20mA Unipolar Maximum Measurement Range 300 Amp Over Range Ipn x 2 Operating Temperature 0 - 50??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Rishabh DS96/200A/4-20mA, Moving Coil Ammeter 200Amp AC/DC for 200A/4-20mADC Analogue Input Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/200A/4-20mA Nominal Measurement Range 0 - 200 Amp AC?DC Shunt Input 4-20mA Unipolar Maximum Measurement Range 200 Amp Over Range Ipn x 2 Operating Temperature 0 - 50??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

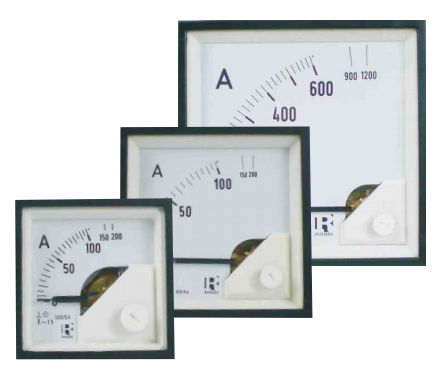

Rishabh DS96/100A/4-20mADC Direct Connect Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/100A/4-20mA Nominal Measurement Range 0 - 100 Amp DC Shunt Input 0-4-20mA Unipolar Maximum Measurement Range 100 AmpDC Over Range Ipn x 2 Operating Temperature 0 - 50??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DS96/50A/4-20mA, Moving Coil Ammeter 50Amp AC/DC for 50A/4-20mADC Analogue Input Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/50A/4-20mA Nominal Measurement Range 0 - 50 Amp DC Shunt Input 4-20mA Unipolar Maximum Measurement Range 60 Amp DC Over Range Ipn x 2 Operating Temperature 0 - 50??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Rishabh DS96/20A/4-20mA, Moving Coil Ammeter 20Amp AC/DC for 20A/4-20mADC Analogue Input Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/20A/4-20mA Nominal Measurement Range 0 - 20 Amp DC Shunt Input 4-20mA Unipolar Maximum Measurement Range 24 Amp DC Over Range Ipn x 2 Operating Temperature 0 - 20??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

SQ96 220-240VAC, Genset Synchroscope (Synchronoscope), 220-240VAC, for Generators Measurement of phase difference between bus bar and generator Standard 96x96 mm DIN housing LED Indicators with backlight High immunity to EMC disturbances   Specification Rishabh Part Number SQ96 220-240VAC Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 220-240VAC ± 20 % Line to Line Digital Output N/A Status Output N/A Switch On Delay Time Range N/A Phase Difference Setting Range N/A Voltage Difference Setting Range N/A Dead Busbar Noise Rejection Range N/A Power Consumption < 6VA Short Term Overload N/A LCD Display Accuracy N/A Synchronisation Accuracy N/A Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet

Read more less

Rishabh DE96/750/5A, Moving Iron Ammeter, 750/5A, 96 × 96mm, Class 1.5 Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DE96/750/5A Nominal Measurement Range 0 - 750 Amp AC Maximum Measurement Range 750 Amp Over Range Isn x 2  Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DS72/500A/4-20mA, Moving Coil Ammeter 500Amp DC for 500A/4-20mA Analogue Input Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/500A/4-20mA Nominal Measurement Range 0 - 500 Amp AC Shunt Input 0-4-20mA Unipolar Maximum Measurement Range 600 Amp Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DS72/50A/4-20mA, Moving Coil Ammeter 50Amp for 50A/4-20mADC Analogue Input Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/50A/4-20mA Nominal Measurement Range 0 - 50 Amp DC Shunt Input 0-4-20mA Unipolar Maximum Measurement Range 60 Amp DC Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DS72/200A/4-20mA, Moving Coil Ammeter 200Amp DC for 200A/4-20mA Analogue Input Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/200A/4-20mA Nominal Measurement Range 0 - 200 Amp AC Shunt Input 0-4-20mA Unipolar Maximum Measurement Range 240 Amp Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DS72/400A/4-20mA DC Direct Connect Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/400A/4-20mA Nominal Measurement Range 0 - 400 Amp AC Shunt Input 0-4-20mA Unipolar Maximum Measurement Range 480 Amp Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet
