Vishay ESTAmat PFC-6N, Power Factor Controller, 6 Step, 415V 50/60HZ, See Rebadged PFR-X+ 06R Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.85 to 0.95 CAP Auto CT Secondary Selection Programmable Primary CT Ratio Luminous Display Various Program Combinations IP40 Up to 6 steps Measurement System - Automatic/Manual 90-550VAC L-L Aux Supply Overvoltage and Under/Overcompensation Alarm   Specification Vishay Part Number Estamat PFC-6N Function Reactive Power Correction Nominal Voltage (Un) 90-690VAC Line to Line (4 Wire) Supply Voltage 90-300VAC (L-N), 15VA 45-65Hz Relay Rating 250VAC/5Amp Switch Delay Time 50ms - 6500s User Adjustable Alarm 1 x Relay as above Temperature Alarm 1 x Relay as above Re-connection Delay Time 1s - 1800s User Adjustable Desired Power Factor 0.85 IND - 1.00 CAP Number of Output Relays 8 Smallest Capacitor Current 50mA CT Input Range 0.05 - 5.5 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms N/A Termination Style Screw Weight 700g Certification IEC 654-1 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP40 for case, IP20 for terminals Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet Product Datasheet User Manual Modbus RS485 User Manual Original Beluk User manual (with PIN code) Application Notes Discharge Resistor Usage Power Factor Correction Blog Quick Start Guide(Blog) Alternative in Stock Beluk BLR-CX06R

Read more less

Vishay Estamat PFC-12N, Power Factor Controller, 12 Step, 90-690V 50/60HZ, See Rebadged PFR-X+ 12R & Beluk BLR-CX12R Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.85 to 0.95 CAP Auto CT Secondary Selection Programmable Primary CT Ratio Backlit LCD Display Various Program Combinations IP41 Up to 12 steps Measurement System - Automatic/Manual 230VAC Aux Supply Configurable Alarms Dual Password Protection Programmable Fan Control Temperature Sensing via NTC Sensor   Specification Vishay Part Number Estamat PFC-12N Function Reactive Power Correction Nominal Voltage (Un) 90-690VAC Line to Line (4 Wire) Supply Voltage 90-300VAC (L-N), 15VA 45-65Hz Relay Rating 250VAC/5Amp Switch Delay Time 1s - 6500s User Adjustable Alarm 1 x Relay as above Temperature Alarm 1 x Relay as above Re-connection Delay Time 50ms - 1200s User Adjustable Desired Power Factor 0.85 IND - 1.0 CAP Number of Output Relays 14 Smallest Capacitor Current 10mA CT Input Range 0 - 6 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms N/A Termination Style Screw Weight 700g Certification IEC 654-1 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP40 for case, IP20 for terminals Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet Product Datasheet Modbus RS485 User Manual User Manual Original Beluk User manual (with PIN code) Application Notes Discharge Resistor Usage Power Factor Correction Blog Quick Start Guide(Blog) Alternative in Stock Beluk BLR-CX12R

Read more less

Iskra Doo PFC-CX-14R Power Factor Regulator, Controller (Beluk BLR-CX 14RL and Vishay Estamat PFC-14N), 14 Step, 110-480V 50/60HZ Single CT Sensing Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.85 to 0.95 CAP Auto CT Secondary Selection Backlit LCD Display Various Program Combinations IP41 Up to 14 steps Measurement System - Automatic/Manual 230VAC Aux Supply Configurable Alarms Dual Password Protection Programmable Fan Control Programmable 1A/5A CT Ratio   Specification Iskra Doo Part Number PFC-CX-14R Function Reactive Power Correction Nominal Voltage (Un) 110-480VAC Line to Line Supply Voltage 90-300VAC (L-N), 15VA 45-65Hz Relay Rating 250VAC/10Amp Switch Delay Time 1s - 1200s User Adjustable Alarm 1 x Relay as above Temperature Alarm 1 x Relay as above Re-connection Delay Time 50 - 1200s User Adjustable Desired Power Factor 0.80 IND - 0.80 CAP Number of Output Relays 14 Smallest Capacitor Current 10mA CT Input Range 0 - 6 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms N/A Termination Style Screw Weight 700g Certification IEC 654-1 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP50 for case, IP20 for terminals Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet User Manual Iskra Quick Setup Guide Application Notes Discharge Resistor Usage Power Factor Correction Blog Quick Start Guide(Blog) Alternative in stock BLR-CX14R

Read more less

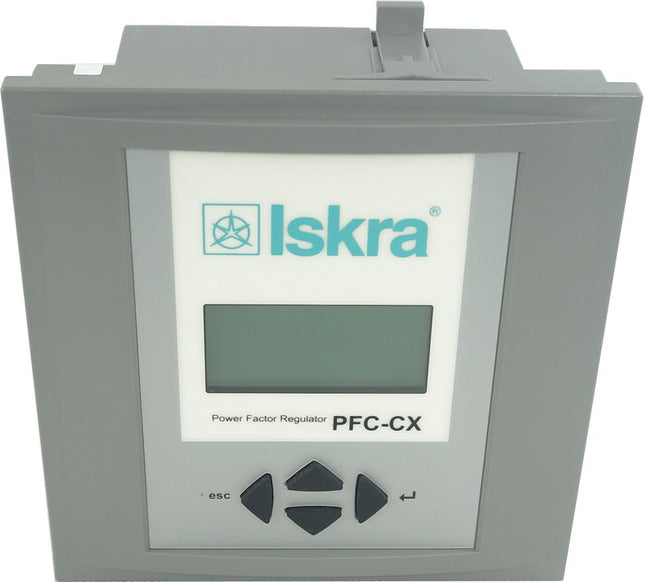

Iskra Doo PFC-CX-12R Power Factor Regulator, Controller (Beluk BLR-CX 12RL and Vishay Estamat PFC-12N), 12 Step, 110-480V 50/60HZ, Rebadged PFR-X+ 12R Single CT Sensing Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.85 to 0.95 CAP Auto CT Secondary Selection Backlit LCD Display Various Program Combinations IP41 Up to 12 steps Measurement System - Automatic/Manual 230VAC Aux Supply Configurable Alarms Dual Password Protection Programmable Fan Control Programmable 1A/5A CT Ratio   Specification Iskra Doo Part Number PFC-CX-12R Function Reactive Power Correction Nominal Voltage (Un) 110-480VAC Line to Line Supply Voltage 90-300VAC (L-N), 15VA 45-65Hz Relay Rating 250VAC/10Amp Switch Delay Time 1s - 1200s User Adjustable Alarm 1 x Relay as above Temperature Alarm 1 x Relay as above Re-connection Delay Time 50 - 1200s User Adjustable Desired Power Factor 0.80 IND - 0.80 CAP Number of Output Relays 12 Smallest Capacitor Current 10mA CT Input Range 0 - 6 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms N/A Termination Style Screw Weight 700g Certification IEC 654-1 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP50 for case, IP20 for terminals Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet User Manual Modbus RS485 User Manual Iskra Quick Setup Guide Application Notes Discharge Resistor Usage Power Factor Correction Blog Quick Start Guide(Blog) Alternative in Stock Beluk BLR-CX12R

Read more less

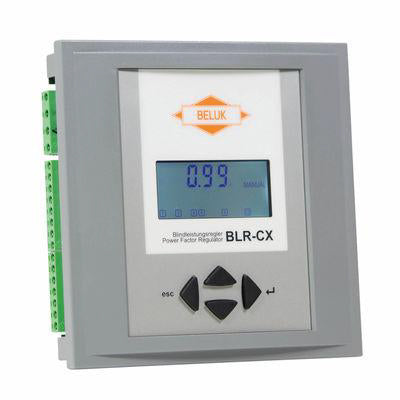

Iskra Doo PFC-CX-06R Power Factor Regulator, Controller (Beluk BLR-CX 06R) or Vishay Estamat PFC-6N), 6 Step, 110-480V 50/60HZ, See Rebadged PFR-X+ 06R Single CT Sensing Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.85 to 0.95 CAP Auto CT Secondary Selection Backlit LCD Display Various Program Combinations IP41 Up to 6 steps Measurement System - Automatic/Manual 230VAC Aux Supply Configurable Alarms Dual Password Protection Programmable Fan Control Programmable 1A/5A CT Ratio   Specification Iskra Doo Part Number PFC-CX-06R Function Reactive Power Correction Nominal Voltage (Un) 110-480VAC Line to Line Supply Voltage 90-300VAC (L-N), 15VA 45-65Hz Relay Rating 250VAC/10Amp Switch Delay Time 1s - 1200s User Adjustable Alarm 1 x Relay as above Temperature Alarm 1 x Relay as above Re-connection Delay Time 50 - 1200s User Adjustable Desired Power Factor 0.80 IND - 0.80 CAP Number of Output Relays 6 Smallest Capacitor Current 10mA CT Input Range 0 - 6 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms N/A Termination Style Screw Weight 700g Certification IEC 654-1 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP50 for case, IP20 for terminals Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet User Manual Modbus RS485 User Manual Iskra Quick Setup Guide Application Notes Discharge Resistor Usage Power Factor Correction Blog Quick Start Guide(Blog) Alternative in Stock Beluk BLR-CX

Read more less

Vishay Estamat MH-6N Automatic Reactive Power Controller Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.85 to 0.95 CAP Auto CT Secondary Selection Programmable Primary CT Ratio Backlit LCD Display Various Program Combinations IP41 Up to 6 steps Measurement System - Automatic/Manual 230VAC Aux Supply Optional Modbus RS485 Configurable Alarms Dual Password Protection Programmable Fan Control   Specification Vishay Part Number Estamat MH-6N Function Reactive Power Correction Nominal Voltage (Un) 415VAC Line to Line (4 Wire) Supply Voltage 230VAC (L-N), 12VA 45-65Hz Relay Rating 250VAC/3Amp Switch Delay Time 2s - 1200s User Adjustable Alarm 1 x Relay as above Temperature Alarm N/A Re-connection Delay Time 2s - 1200s User Adjustable Desired Power Factor 0.85 IND - 0.95 CAP Number of Output Relays 7 Smallest Capacitor Current 50mA CT Input Range 0.05 - 5.5 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms N/A Termination Style Screw Weight 700g Certification IEC 654-1 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP40 for case, IP20 for terminals Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet Product Datasheet User Manual Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Iskra Doo MT440-SSUDAANNA, Multifunction Power Transducer, Class 0.5, 4 Wire, 600V L-N, 1/5/10Amp AC Input 50/60Hz, 24-300VDC or 40-276VAC Aux Input, 2 Programmable analogue outputs, RS485 & USB Comms Class 0.5 (EN 60688) USB Comms as standard Up to 4 I/O Modules (analogue output, Multiple break point, non-linear characterstics Automatic range of nominal current up to 12.5 A (Includes 5A/1A CT Input) and nominal voltage up to 600 V L-N Adjustable tariff clock, display of electric energy consumption in optional currency RMS values of currents and voltages Measurements of active, reactive, apparent power and power factor Measurements of energy in all 4 quadrants Average values of measurands per interval Certified ship version available The Power Transducer is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals. Features : Measurement of instantaneous values of more than 50 quantities (U, I, P, Q, S, PF, PA, f, f, MD, etc.). Accuracy class 0.5 32 Adjustable Alarms Input frequency 50/60 Hz or 400 Hz RS 232/RS485 communication up to 115,200 bit/s (Optional) or USB communication as standard MODBUS RTU communication protocol Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs) Universal Supply 24-300VDC or 40-276VAC Automatic range of nominal current up to 12.5 A and nominal voltage up to 600 V User-friendly PC MiQen software Specification Iskra Doo Part Number MT440-SSUDAANNA Functions 3 Phase Power Transducer Supply Voltage 24-300VDC or 40-276VAC Nominal Measurement Range 600V L-N, 1/5/10 Amp Maximum Measurement Range 600V L-N, 12.5 Amp Alarm N/A Tariff Input N/A Output(s) 2 x Analogue Accuracy Class 0.5 (I,U,F,PF,θ,THD) Class 1(Active), Class 2 (Reactive) Battery Backup N/A Real Time Clock 1min/month (30ppm) Isolation 3.5kV Comms USB (standard) RS232 2400-115200 b/s (RS485 Optional) Weight 370g Enclosure Material UL94, Factory Pack Qty 1 EU Directives EN61010, EN60688,EN61326-1,60529,60068-2-1/-2/-6/-27/-30 Safety Protection Class II 600V rms, installation category II 300V rms, installation category III Pollution Degree 2 in compliance with SIST EN 61010-1:2002 Enclosure Material PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0 Enclosure Protection IP20   Shock Withstand 300g 8ms Pulse . 6 Shocks in each of 3 axes Vibration Withstand 0.7g, 3...100Hz, 1oct/min 10 cycles in each of three axes Operating Temperature -20 →+70 °C   Datasheet Product Datasheet Software MiQen Setting Software MIPACK Programmer
