Iskra Doo KNK3053 50 KVAR 525V 50HZ Heavy Duty, Power Factor Correction Capacitor, 3 Phase, Dry Type 136x285mm, 3 x 192.48uF Characteristics and utility 50kVar @ 525V @ 50 Hz 50kvar Heavy Duty 150,000Hours Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 50 KVAR 525V 50HZ H Technology Dry Type, Low Loss, Self Healing Dimensions 136 x 285mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 50 Kvar Capacitance 3 x 192.48uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 36 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 4.2kg Factory Pack Quantity 25   Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet

Read more less

Iskra Doo KNK3053 7.5 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 75 x 210mm Dry Type, 3 x 28.9uF Characteristics and utility 7.5kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 7.5 KVAR 525V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 75 x 210mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 7.5 Kvar Capacitance 3 x 28.9uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 8.2 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 1.1kg Factory Pack Quantity 25   Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet

Read more less

Iskra Doo KNK3053, 25 KVAR 525V 50HZ S, Power Factor Correction Capacitor, 3 Phase, 116 x 210mm Dry Type, 3 x 96.2uF Characteristics and utility 25kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053, 25 KVAR 525V 50HZ S Technology Dry Type, Low Loss, Self Healing Dimensions 116 x 210mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 25 Kvar Capacitance 3 x 96.2uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 44 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 2.5kg Factory Pack Quantity 25   Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet

Read more less

Iskra Doo KNK3053 25KVAR 525V 50HZ-T, Power Factor Correction Capacitor, 3 Phase, 90 x 290mm [Tall Version] Dry Type, 3 x 96.2uF, Includes Discharge Resistor Characteristics and utility 25kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 25 KVAR 525V 50HZ-T Technology Dry Type, Low Loss, Self Healing Dimensions 90 x 265(+25mm) Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 25 Kvar Capacitance 3 x 96.2uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 44 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 2.5kg Factory Pack Quantity 25   Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet

Read more less

Vishay PhMKPg525.3.25,00-84, Power Factor Correction Capacitor, 3 Phase, 85 x 265mm, IP00 Dry Type (Gas Filled), 25KVAR @ 525V, 17.6 KVAR @ 415VAC, 3 x 96.2uF Characteristics and utility 25kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Over pressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Vishay Part Number PhMKPg525.3.25,00-84 EstaDry Technology Gas Filled, Low Loss, Self Healing Dimensions 85 x 265mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 25 Kvar (17.6KVAR @ 415VAC) Capacitance 3 x 96.2uF Size 85 x 265mm Tolerance On Capacitance -5% + 10% (others on request) Current (In) 27.5 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 1.7kg Factory Pack Quantity 25   Datasheet Product Datasheet Alternatives New Vishay drop in replacement ACMKP525.3.25.00 Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

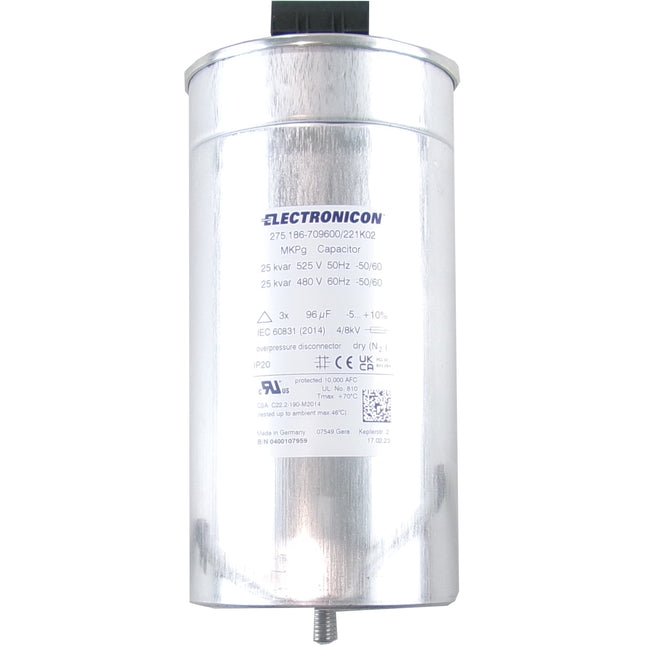

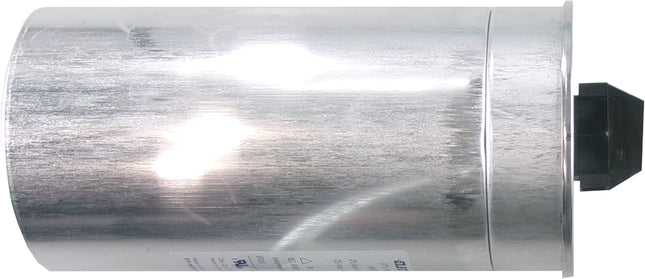

Electronicon 275.186-709600/221K02 25kvar 525V 50Hz, Power Factor Correction Capacitor, 3 Phase, 116 x 230(+32 +5/-2)mm Gas Filled, 3 x 96.2uF, Replaces 275.186-809600 Characteristics and utility 25kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.186-709600/221K02 25kvar 525V 50Hz Technology Gas Filled, Low Loss, Self Healing Dimensions 116 x 230(+32)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 25 Kvar Capacitance 3 x 96.2uF Discharge Resistors (Not Included) 275.105-10120 & 275-100-10180 Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 45 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 2.3kg Factory Pack Quantity 25   Datasheet Product Datasheet Replaces Part# 275.189-714301-221702 which is now obsolete Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

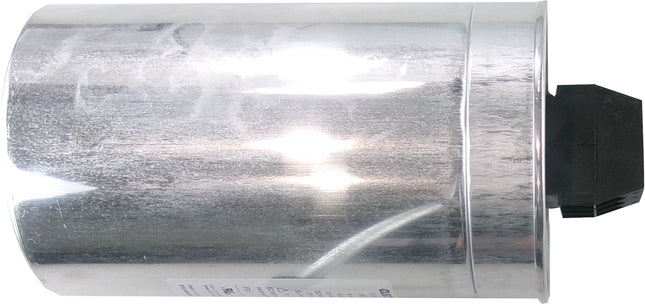

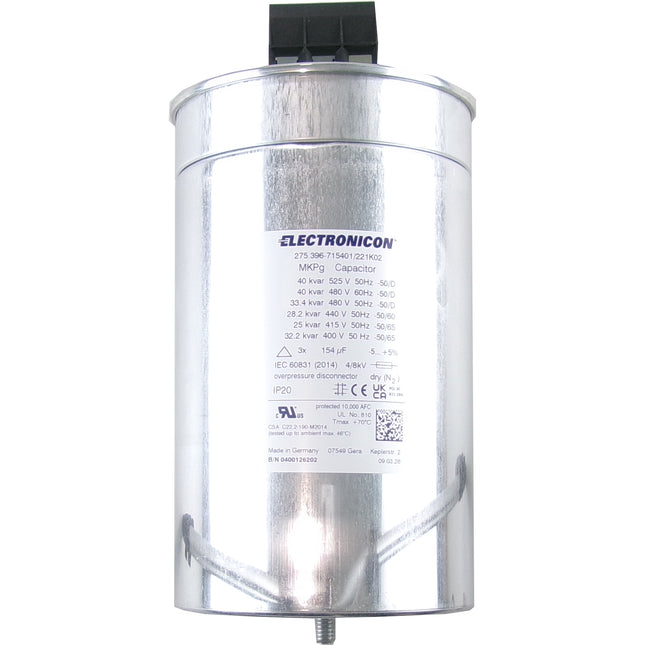

Electronicon 275.396-715401/221K02 40KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 136 x 230(+47)mm Gas Filled, Replaces 275-398-715401-221K02 Characteristics and utility 25kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.396-715401/221K02 40KVAR 525V 50HZ Technology Gas Filled, Low Loss, Self Healing Dimensions 136 x 245(+47)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 40 Kvar Capacitance 3 x 154uF Discharge Resistors (Not Included)  275.105-10120 & 275-100-10180 Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 72 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal (Feed Through) Approvals UL 810, CSA C22.2 No.90 Unit Weight 3.2kg Factory Pack Quantity 25   Datasheet Product Datasheet  Replaces 275.398-715401/221602 Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Vishay PhMKPg440.3.18.80-84, Power Factor Correction Capacitor, 440VAC 3 Phase, 85 x 265mm IP00 Dry Type (Gas Filled), 18KVAR @ 440VAC, 16.7KVAR @ 415VAC, 3 x 96.2uF Characteristics and utility 16.7kVar @ 440VAC @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Vishay Part Number PhMKPg440.3.18.80-84 Technology Gas Filled, Low Loss, Self Healing Dimensions 85 x 265mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 440V @ 50Hz Size 85 x 265mm Kvar 18.8 Kvar (16.7KVAR @ 415VAC) Capacitance 3 x 96.2uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 27.5 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Ceramic Busbar/Feed Through Type Unit Weight 1.7kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Vishay PhMKPg440.3.14,10-84, Power Factor Correction Capacitor, 440VAC 3 Phase, 85 x 190mm, IP00 Dry Type (Gas Filled), 14.1KVAR @ 440VAC, 12.5KVAR @ 415VAC, 3 x 77uF Characteristics and utility 18.8kVar @ 440VAC @ 50 Hz (16.7kVar @ 415VAC) 10.0 kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Vishay Part Number PhMKPg440.3.14,10-84 Technology Gas Filled, Low Loss, Self Healing Dimensions 85 x 190mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 440V @ 50Hz Kvar 14.1 Kvar (12.5KVAR @ 415VAC) Size 85 x 265mm Capacitance 3 x 77uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 27.5 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Ceramic Busbar/Feed Through Type Unit Weight 1.7kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less
