SKR240/16 UNF, Rectifier Diode 240 Amp, 1600V, 3/4" UNF 2A, Cathode Stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Semikron Part Number SKR240/16 UNF Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 240 Amp Itsm 6 kA VF(to) 0.85V Tj(max) 180°C rF 0.6mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) 3/4 " UNF 2A Tail Length to Stud 200mm R th(j-c) 0.19°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less

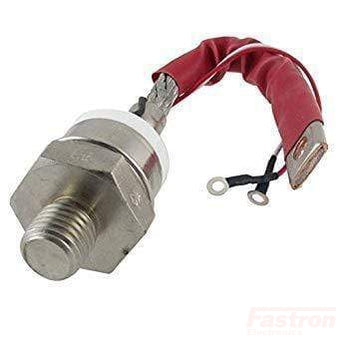

MS Power MST85S16M, Thyristor(SCR), 85Amp, 1600V, M12, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST85S16M Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 196 Amp IF(av) @ 125 Deg C 85 Amp Itsm 1.35 kA VF(to) 1.20V I(gt) 150mA Tj(max) 125°C rF 2.60mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) 1/2" 20 UNF Tail Length to Stud 175mm R th(j-c) 0.27°C/W R th(c-h) 0.08°C/W Weight 200g Mounting Torque 14 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet Obsolescence This part is, Obsolete due to part number change see MST85S16U for replacement

Read more less

MS Power MST400S16MB, Thyristor (SCR) 1600VAC, 400Amp, M24 x 1.5P Solder Bonded type, Anode to stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST400S16MB Special Feature Solder Bonded Vrrm 1600V SCR Configuration Anode Stud IF(av) @ Tc = 70 Deg C 400 Amp Itsm 9 kA VF(to) 0.85V I(gt) 200mA Tj(max) 125°C rF 0.60mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) M24 x 1.5P Tail Length to Stud 255mm R th(j-c) 0.088°C/W R th(c-h) 0.04°C/W Weight 520g Mounting Torque 2.5 - 2.7 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MST65S16U, Thyristor(SCR), 65Amp, 1600V, 1/4" 28 UNF, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST65S16U Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 102 Amp IF(av) @ 125 Deg C 65 Amp Itsm 1.1 kA VF(to) 0.9V I(gt) 150mA Tj(max) 125°C rF 4.70mΩ Termination Style (No Tail) 4mm & 1.3mm Solder Tab Termination Style (Stud) 1/4 " 28 UNF Tail Length to Stud N/A R th(j-c) 0.45°C/W R th(c-h) 0.20°C/W Weight 25g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSKP65S16M, Thyristor(SCR), 65Amp, 1600V, M8, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST65S16M Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 102 Amp IF(av) @ 125 Deg C 65 Amp Itsm 1.1 kA VF(to) 0.9V I(gt) 150mA Tj(max) 125°C rF 4.70mΩ Termination Style (No Tail) 4mm & 1.3mm Solder Tab Termination Style (Stud) M8 Tail Length to Stud N/A R th(j-c) 0.45°C/W R th(c-h) 0.20°C/W Weight 25g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MST400S16MK, Thyristor (SCR) 1600VAC, 400Amp, M24 x 1.5P Pressure contact type, Anode to stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MST400S16MK Special Feature Pressure Contact Technology Vrrm 1600V SCR Configuration Anode Stud IF(av) @ Tc = 70 Deg C 400 Amp Itsm 9 kA VF(to) 0.85V I(gt) 200mA Tj(max) 125°C rF 0.60mΩ Termination Style (Tail) 11mm Round Lug Termination Style (Stud) M24 x 1.5P Tail Length to Stud 255mm R th(j-c) 0.088°C/W R th(c-h) 0.04°C/W Weight 520g Mounting Torque 2.5 - 2.7 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

MS Power MSD85R16UB Series Anode Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD85R16UB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 95 Amp IF(av) @ 125 Deg C 70 Amp Itsm 1.15 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) Solder Tab Termination Style (Stud) 1/4" 28 UNF 2A Tail Length to Stud 158mm R th(j-c) 0.55°C/W R th(c-h) 0.20°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

Thyristor(SCR), 250Amp, 1400V, M24, Anode stud Product Datasheet

Read more less

International Rectifier (IR) 251UL160S30 Series Stud Mount Fast Rectifier Diode Features Fast Diode Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification International Rectifer Part Number 251UL160S30 Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 85 Deg C 251 Amp T(off) 30uS Termination Style (Stud) 3/4" UNF Weight 250g Mounting Torque 26 Nm Factory Pack Qty 1 Datasheet Not Published

Read more less

Thyristor(SCR) 130 Amp, 1200V, M12, Anode Stud Datasheet Product Datasheet Alternatives T160N12EOF-G
