SKN240/16, Rectifier Diode 240 Amp, 1600V, M16 x 1.5, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Semikron Part Number SKN240/16 Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 240 Amp Itsm 6 kA VF(to) 0.85V Tj(max) 180°C rF 0.6mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) M16 x 1.5P Tail Length to Stud 200mm R th(j-c) 0.19°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less

SKR240/16, Rectifier Diode 240 Amp, 1600V, M16 x 1.5, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Semikron Part Number SKR240/16 Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 240 Amp Itsm 6 kA VF(to) 0.85V Tj(max) 180°C rF 0.6mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) M16 x 1.5P Tail Length to Stud 200mm R th(j-c) 0.19°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less

MS Power MST Series Stud Mount Thyristor(SCR) 30 Amp, 1600V M6 Stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MSKP30S16M Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 47 Amp IF(av) @ 125 Deg C 30 Amp Itsm 550 Amp VF(to) 0.95V I(gt) 150mA Tj(max) 125°C rF 6.40mΩ Termination Style (No Tail) 4mm & 1.3mm Solder Tab Termination Style (Stud) M6 x 1 Tail Length to Stud N/A R th(j-c) 0.93°C/W R th(c-h) 0.30°C/W Weight 15g Mounting Torque 2 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet Obsolescence This part is, Obsolete due to part number change see MST30S16M for replacement

Read more less

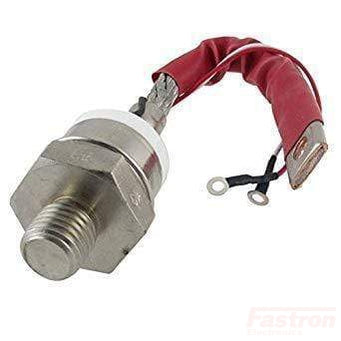

MS Power MSKP Series Stud Mount Thyristor(SCR) Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MSKP125S16U Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 196 Amp IF(av) @ 125 Deg C 125 Amp Itsm 1.9 kA VF(to) 1.20V I(gt) 150mA Tj(max) 125°C rF 1.90mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) M12 x 1.75P Tail Length to Stud 175mm R th(j-c) 0.24°C/W R th(c-h) 0.08°C/W Weight 520g Mounting Torque 14 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet Obsolescence This part is, Obsolete due to part number change see MST125S16M for replacement

Read more less

S08BN55M Rectifier Diode 55 Amp, 800V, M8 x 1.25, w/tail Cathode stud Product Datasheet

Read more less

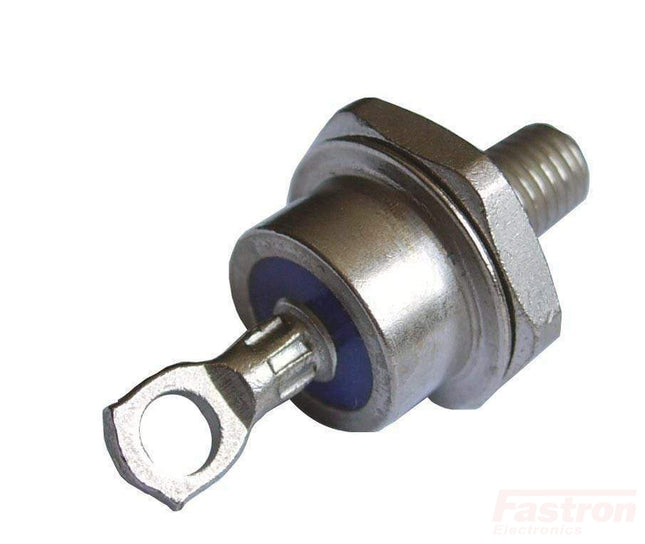

MS Power MSD85R16MB Series Anode Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD85R16MB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 95 Amp IF(av) @ 125 Deg C 70 Amp Itsm 1.15 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) Solder Tab Termination Style (Stud) 3/8" -24UNF2A Tail Length to Stud 158mm R th(j-c) 0.55°C/W R th(c-h) 0.20°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less

Rectifier Diode, 450 Amp, 600V, 3/4" UNF 2A, Anode stud Product Datasheet

Read more less

A1B-50-06 Rectifier Diode 50 Amp, 600V w/tail, M8, Cathode stud Ref S06BN50M Product Datasheet

Read more less

A1B-260-06X, Stud Rectifier Diode 260Amp, 600V, M16, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification AEGIS Part Number A1B-260-06X Vrrm 600V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 260 Amp Itsm 5.046 kA VF(to) 0.82V Tj(max) 180°C rF 0.45mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) M16 Tail Length to Stud 170mm R th(j-c) 0.120°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China AEGIS Headquarters Brazil   Datasheet Product Datasheet

Read more less

Rectifier Diode 22Amp, 600V, M6, Anode stud Ref S06AR26M Product Datasheet

Read more less

MS Power MSD151R18MB, Rectifier Diode 150 Amp, 1600V, M12 x 1.75, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD151R18MB Vrrm 1800V Diode Configuration Anode Stud IF(av) @ 100 Deg C 165 Amp IF(av) @ 125 Deg C 130 Amp Itsm 2.5 kA VF(to) 0.85V Tj(max) 180°C rF 1.3mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) M12 x 1.75P Tail Length to Stud 185mm R th(j-c) 0.28°C/W R th(c-h) 0.05°C/W Weight 110g Mounting Torque 10 - 13 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet
