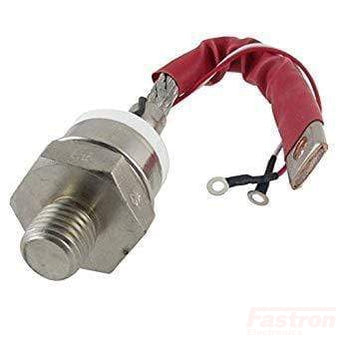

Thyristor Stud, 355Amp, 1600V, M24x1.5, Anode Stud

Read more less

A1A-350-18X, Rectifier Diode 350 Amp, 1600V, M24, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification AEGIS Part Number A1A-350-18X Vrrm 1800V Diode Configuration Cathode Stud IF(av) @ 125 Deg C 350 Amp Itsm 7.798 kA VF(to) 0.82V Tj(max) 180°C rF 0.25mΩ Termination Style (Tail) 10.6mm Round Lug Termination Style (Stud) M24 x 1.5 Tail Length to Stud 230mm R th(j-c) 0.17°C/W R th(c-h) 0.015°C/W Weight 500g Mounting Torque 26 Nm Factory Pack Qty 4 Country Of Origin China AEGIS Headquarters Brazil   Datasheet Product Datasheet

Read more less

MS Power MSKP Series Stud Mount Thyristor(SCR) Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Controlled Rectifiers AC Switch DC Motor Control Specification MS Power Part Number MSKP30S16M Vrrm 1600V SCR Configuration Anode Stud IF(av) @ 100 Deg C 47 Amp IF(av) @ 125 Deg C 30 Amp Itsm 550 Amp VF(to) 0.95V I(gt) 150mA Tj(max) 125°C rF 6.40mΩ Termination Style (No Tail) 4mm & 1.3mm Solder Tab Termination Style (Stud) M6 x 1 Tail Length to Stud N/A R th(j-c) 0.93°C/W R th(c-h) 0.30°C/W Weight 15g Mounting Torque 2 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet Obsolescence This part is, Obsolete due to part number change see MST30S16M for replacement

Read more less

Rectifier Diode 260 Amp, 1600V, M16 x 1.5, Anode stud Product Datasheet

Read more less

S16HNS260M Rectifier Diode 260 Amp, 1600V, M16 x 1.5, Cathode stud Product Datasheet

Read more less

Rectifier Diode 26 Amp, 1600V, M6 x 1, Cathode stud Product Datasheet

Read more less

Rectifier Diode 55 Amp, 1200V, M8 x 1.25, Anode stud Product datasheet

Read more less

Rectifier Diode 55 Amp, 1200V, M8 x 1.25, Cathode stud Product datasheet

Read more less

Rectifier Diode 55 Amp, 800V, M8 x 1.25, w/tail Anode stud Product Datasheet

Read more less

S08BN85M Rectifier Diode 85 Amp, 800V, M8 x 1 w/tail, Cathode stud Product Datasheet

Read more less

Rectifier Diode 260 Amp, 600V, 3/4" 16UNF 2A, Anode stud Product Datasheet

Read more less

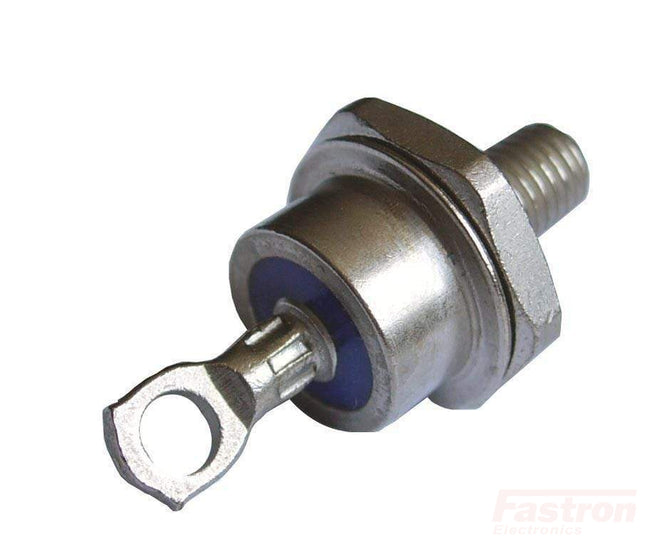

MS Power MSD85N12MB Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD85N12MB Vrrm 1200V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 95 Amp IF(av) @ 125 Deg C 70 Amp Itsm 1.15 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) Solder Tab Termination Style (Stud) 3/8" -24UNF2A Tail Length to Stud 158mm R th(j-c) 0.55°C/W R th(c-h) 0.20°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet

Read more less
