Metric Stud Diodes & Thyristors
-
A1B-260-12X, Rectifier Diode 260Amp, 1200V, M16, Cathode stud
A1B-260-12X, Rectifier Diode 260Amp, 1200V, M16, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification AEGIS Part Number A1B-260-12X Vrrm 1200V Diode Configuration Cathode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 260 Amp Itsm 5.046 kA VF(to) 0.82V Tj(max) 180°C rF 0.45mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) M16 Tail Length to Stud 170mm R th(j-c) 0.120°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China AEGIS Headquarters Brazil Datasheet Product Datasheet
$94.00
$110.92 inclGST -
MSD46N16UB, Rectifier Diode 50 Amp, 1600V, 1/4" UNF 28, Cathode stud
MS Power MSD46N16UB, Rectifier Diode 50 Amp, 1600V, 1/4" UNF 28, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD46N16UB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 115 Deg C 50 Amp IF(av) @ 125 Deg C 45 Amp Itsm 0.7 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style N/A Termination Style (Stud) 8mm Log Tail Length to Stud None R th(j-c) 0.85°C/W R th(c-h) 0.25°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet
$18.90
$22.30 inclGST -
MSD46R16UB, Rectifier Diode 50 Amp, 1600V, 1/4" UNF 28, Anode stud
MS Power MSD46R16UB, Rectifier Diode 50 Amp, 1600V, 1/4" UNF 28, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD46R16UB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 115 Deg C 50 Amp IF(av) @ 125 Deg C 45 Amp Itsm 0.7 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style 6mm Termination Style (Stud) 1/4" UNF 28A Tail Length to Stud 158mm R th(j-c) 0.85°C/W R th(c-h) 0.25°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet
$18.90
$22.30 inclGST -

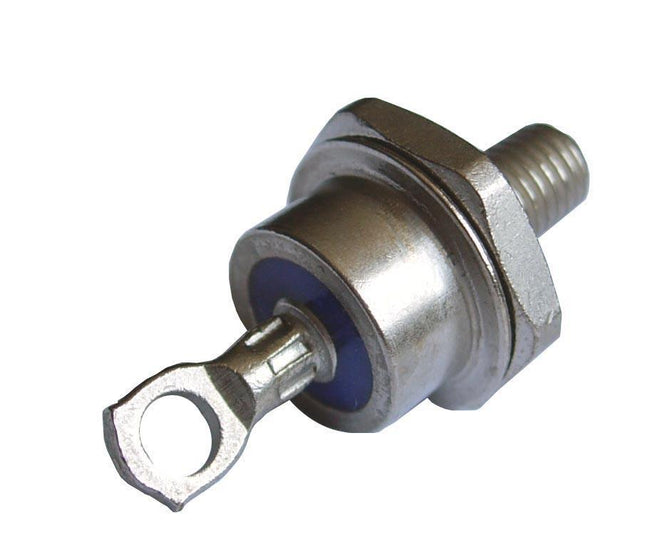

MSD46R16MB, Rectifier Diode 50 Amp, 1600V, M8 x 1.25, Anode stud
MS Power MSD46R16MB, Rectifier Diode 50 Amp, 1600V, M8 x 1.25, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD46R16MB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 115 Deg C 50 Amp IF(av) @ 125 Deg C 45 Amp Itsm 0.7 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) 8.2mm Round Lug Termination Style (Stud) M8 x 1 Tail Length to Stud 158mm R th(j-c) 0.85°C/W R th(c-h) 0.25°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet
$18.90
$22.30 inclGST -
MSD46N16MB, Rectifier Diode 50 Amp, 1600V, M8 x 1.25, Cathode stud
MS Power MSD46N16MB, Rectifier Diode 50 Amp, 1600V, M8 x 1.25, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD46N16MB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 115 Deg C 50 Amp IF(av) @ 125 Deg C 45 Amp Itsm 0.7 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) 8.2mm Round Lug Termination Style (Stud) M8 x 1 Tail Length to Stud 158mm R th(j-c) 0.85°C/W R th(c-h) 0.25°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet
$18.90
$22.30 inclGST -
MSD50N16UB, Rectifier Diode 50 Amp, 1600V, 1/4" UNF 28, Cathode stud
MS Power MSD50N16UB, Rectifier Diode 50 Amp, 1600V, 1/4" UNF 28, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD50N16UB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 115 Deg C 50 Amp IF(av) @ 125 Deg C 45 Amp Itsm 0.7 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style N/A Termination Style (Stud) 8mm Log Tail Length to Stud None R th(j-c) 0.85°C/W R th(c-h) 0.25°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet
$18.90
$22.30 inclGST -
MSD50R16UB, Rectifier Diode 50 Amp, 1600V, 1/4" UNF 28, Anode stud
MS Power MSD50R16UB, Rectifier Diode 50 Amp, 1600V, 1/4" UNF 28, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD50R16UB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 115 Deg C 50 Amp IF(av) @ 125 Deg C 45 Amp Itsm 0.7 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style 6mm Termination Style (Stud) 1/4" UNF 28A Tail Length to Stud 158mm R th(j-c) 0.85°C/W R th(c-h) 0.25°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet
$18.90
$22.30 inclGST -
MSD50R16MB, Rectifier Diode 50 Amp, 1600V, M8 x 1.25, Anode stud
MS Power MSD50R16MB, Rectifier Diode 50 Amp, 1600V, M8 x 1.25, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD50R16MB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 115 Deg C 50 Amp IF(av) @ 125 Deg C 45 Amp Itsm 0.7 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) 8.2mm Round Lug Termination Style (Stud) M8 x 1 Tail Length to Stud 158mm R th(j-c) 0.85°C/W R th(c-h) 0.25°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet
$18.90
$22.30 inclGST -
MSD50N16MB, Rectifier Diode 50 Amp, 1600V, M8 x 1.25, Cathode stud
MS Power MSD50N16MB, Rectifier Diode 50 Amp, 1600V, M8 x 1.25, Cathode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD50N16MB Vrrm 1600V Diode Configuration Cathode Stud IF(av) @ 115 Deg C 50 Amp IF(av) @ 125 Deg C 45 Amp Itsm 0.7 kA VF(to) 0.85V Tj(max) 180°C rF 3mΩ Termination Style (Tail) 8.2mm Round Lug Termination Style (Stud) M8 x 1 Tail Length to Stud 158mm R th(j-c) 0.85°C/W R th(c-h) 0.25°C/W Weight 40g Mounting Torque 4 Nm Factory Pack Qty 10 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet
$18.90
$22.30 inclGST -
MSD254R18MK, Rectifier Diode 251Amp, 1800V, M12 Anode stud, PRESSURE CONTACT TECHNOLOGY
MSD254R18MK, Rectifier Diode 251Amp, 1800V, M12 Anode stud, PRESSURE CONTACT TECHNOLOGY Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Can Replace Infineon D251N18B Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD254R18MK Vrrm 1800V Diode Configuration Anode Stud IF(av) @ 130 Deg C 250 Amp IF(av) @ 129 Deg C 255 Amp Itsm 6.3kA VF(to) 0.80V Tj(max) 180°C rF 0.50mΩ Termination Style (Tail) 8.4mm Round Lug Termination Style (Stud) M12 x 1.75 Stud Length 18mm Tail Length to Stud 210mm R th(j-c) 0.151 °C/W R th(c-h) 0.04 °C/W Weight 175g Mounting Torque 20 Nm Factory Pack Qty 6 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet
$249.00
$293.82 inclGST -
MSD254N18MK, Rectifier Diode 251Amp, 1800V, M12 Cathode stud, PRESSURE CONTACT TECHNOLOGY
MSD254N18MK, Rectifier Diode 251Amp, 1800V, M12 Cathode stud Mount Rectifier Diode, PRESSURE CONTACT TECHNOLOGY Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Can Replace Infineon D251K18B Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD254N18MK Vrrm 1800V Diode Configuration Cathode Stud IF(av) @ 130 Deg C 250 Amp IF(av) @ 129 Deg C 255 Amp Itsm 6.3kA VF(to) 0.80V Tj(max) 180°C rF 0.50mΩ Termination Style (Tail) 8.4mm Round Lug Termination Style (Stud) M12 x 1.75 Stud Length 18mm Tail Length to Stud 210mm R th(j-c) 0.151 °C/W R th(c-h) 0.04 °C/W Weight 175g Mounting Torque 20 Nm Factory Pack Qty 6 Country Of Origin China MS Power Headquarters Germany Datasheet Product Datasheet
$249.00
$293.82 inclGST -
SKN240/16 UNF, Rectifier Diode 240 Amp, 1600V, 3/4" UNF 2A, Anode Stud
SKN240/16 UNF, Rectifier Diode 240 Amp, 1600V, 3/4" UNF 2A, Anode Stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Semikron Part Number SKN240/16 UNF Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 240 Amp Itsm 6 kA VF(to) 0.85V Tj(max) 180°C rF 0.6mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) 3/4 " UNF 2A Tail Length to Stud 200mm R th(j-c) 0.19°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China Semikron Headquarters Germany Datasheet Product Datasheet
$63.00
$74.34 inclGST
