LEM LZSR 150-TP/SP2 Series Closed Loop AC/DC Hall Effect Sensor Features SP2 = Higher Measuring Range Bandwidth DC to 200kHz Closed loop transducer using Hall effect Compact and versatile PCB Mounted Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LZSR 150-TP/SP2 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage 5VDC Load Current (RMS + DC) 150 Amp Measurement Range +/-450 Amp Output 2.5V Isolation 3 kV Bandwidth DC-200 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 85°C Accuracy 1% Termination Style Through Hole PCB Unit Weight 45g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

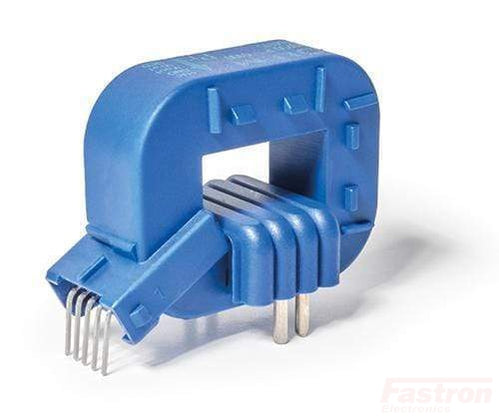

LEM HO 60-P/SP33-1106, O/L Multi Range Hall Effect Current Sensor, 100 Amp, PCB Mount, 18.8 x 10.5mm aperture, Panel Mount +3.3 V, Overcurrent Detection Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +3.3 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Factory calibrated Compact design for PCB mounting Aperture: 15 × 8 mm Factory calibrated Repositionabel mounting foot Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 60-P/SP33-1106 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 250 Amp Measurement Range +/-625 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style JST B5B-PH type Unit Weight 32g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM CAS 50-NP Series Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.2kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Compact design for PCB mounting Advantages LTS footprint compatible Very good dv/dt immunity Extended measuring range for unipolar measurement. Reduced height Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Standards EN 50178: 1997 UL 508: 2013 IEC 61010-1(safety) Application Domain Industrial Specification LEM Part Number CAS 50-NP Technology Closed Loop Multi Range Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/-150 Amp Output 2.5 Vref Isolation 4.2 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 0.8% Termination Style PCB Unit Weight 9g Factory Packaging 25 Datasheet Product Datasheet

Read more less

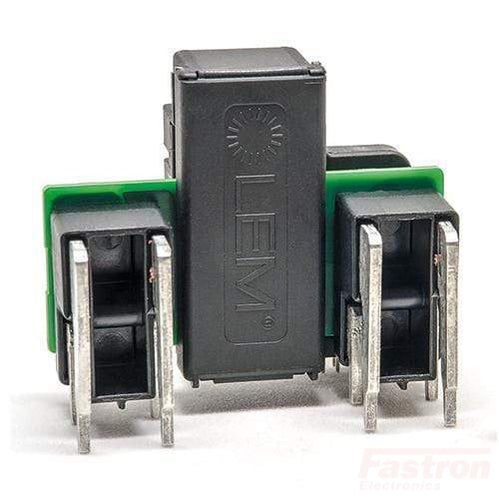

LDSR 0.3-NP, C/L 3 Phase Earth Leakage Hall Effect Current Sensor, 300 Amp, 2.5V ref in ref Out, PCB Mount, 1.71kV Isolation Features Closed loop (compensated) current transducer Voltage output Single supply voltage PCB mounting. Advantages Very low offset drift temperature coefficient High overload capability High insulation capability Reference pin with two modes, Ref IN and Ref OUT Test winding Applications Leakage current measurement in transformerless PV inverters 3 phases plus neutral First human contact protection of PV arrays Failure detection in power sources Symmetrical fault detection Current leakage detection in stacked DC sources Nominal current per phase measurement up to ±30 A per wire (DC or AC). Standards EN 61800-1: 1997 EN 61800-2: 2015 EN 61800-3: 2004 UL 62109-1: 2010 IEC 61010-1: 2010 UL 508. Application Domains Industrial Specification LEM Part Number LDSR 0.3-NP Technology Closed Loop Hall Effect ROHS Yes Supply Voltage +/-15VDC Load Current (RMS + DC) 300mA Measurement Range +/-900mA Output 2.5Vref Isolation 1.71kV Bandwidth DC-2kHz Response Time 25uS Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 2-5% Aperture N/A Unit Weight 28g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

HAIS 200-P, O/L Hall Effect Current Sensor, 200 Amp, Vref 0-5V Output, PCB Mount, 15x8mm sqr, X = 1% Features Bandwidth DC to 50kHz Open loop transducer using Hall effect Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Wide dynamic range, 50 to 600 A in one package. Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Specification LEM Part Number HAIS 200-P Technology Open Loop Hall Effect Aperture 15 x 8mm Square ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 200 Amp Overload Capability +/- 600 Amp Output 2.5 Vref Isolation 2.5kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style PCB Unit Weight 30g Factory Pack Quantity 10 Datasheet Product Datasheet

Read more less

HAIS 150-P, O/L Hall Effect Current Sensor, 150 Amp, Vref 0-5V Output, PCB Mount, 15x8mm sqr, X = 1% Features Bandwidth DC to 50kHz Open loop transducer using Hall effect Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Wide dynamic range, 50 to 600 A in one package. Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Specification LEM Part Number HAIS 150-P Technology Open Loop Hall Effect Aperture 15 x 8mm Square ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 150 Amp Overload Capability +/- 450 Amp Output 2.5 Vref Isolation 2.5kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style PCB Unit Weight 30g Factory Pack Quantity 10 Datasheet Product Datasheet

Read more less

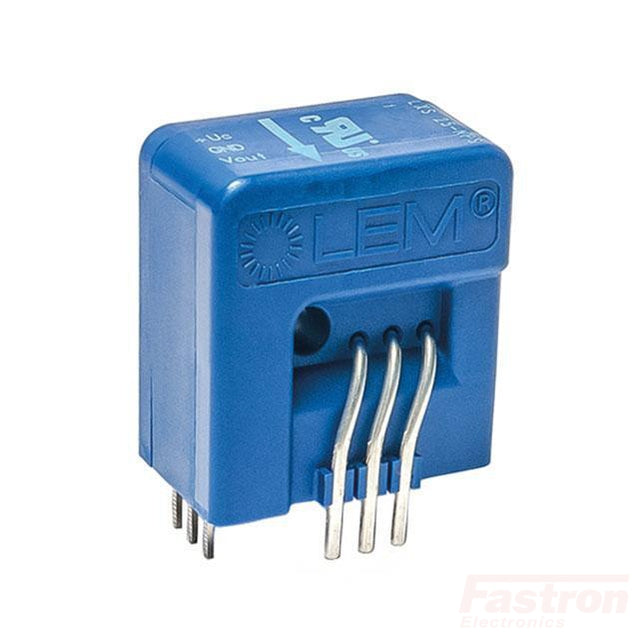

LEM LXSR 6-NPS Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Vref IN Vref OUT Multirange through PCB rounting Advantages LTSR footprint compatible Excellent accuracy Zero insertion losses Very good linearity Very good dv/dt immunity High immunity to external intereference Current overload capability Optimised response time Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 IEC 62477-1: 2012 UL 508:2013 Application Domain Industrial Specification LEM Part Number LSXR 6-NP Technology Closed Loop Multirange Hall Effect Aperture ø3.2mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 6 Amp Measurement Range +/-20 Amp Output 2.5 Vref Isolation 3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Unit Weight 9g Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LTSR 6-NP
