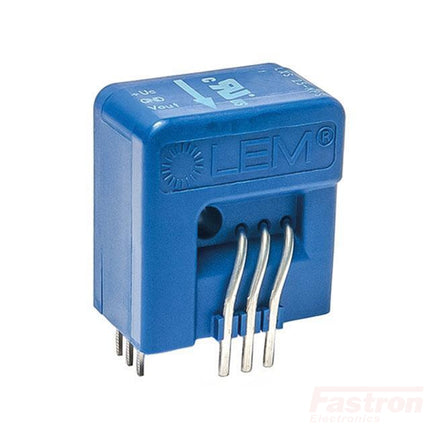

LXS 25-NPS, C/L Multirange Hall Effect Current Sensor,25 Amp, 2.5V ref Out, 3.2mm Aperture, PCB Mount, X = 2.25%

LXS 25-NPS, C/L Multirange Hall Effect Current Sensor,25 Amp, 2.5V ref Out, 3.2mm Aperture, PCB Mount, X = 2.25%

Product form
Free pickup in our shop(s)

50 pcs in stock

$25.94 $28.53 inclGST Excl. VAT

        SKU: FE-LXS25-NPS

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        LEM LXS 25-NPS Closed Loop AC/DC Hall Effect Sensor

        Features

        • Closed loop current transducer
        • Voltage output
        • 4.3kV Isolation
        • Frequency bandwidth 300kHz
        • Single supply + 5 V
        • Galvanic isolation between primary and secondary
        • Low power consumption
        • Compact design for PCB mounting
        • Vref IN Vref OUT
        • Multirange through PCB routing

        Advantages

        • LXSR footprint compatible
        • Zero insertion losses
        • Very good linearity
        • Very good dv/dt immunity
        • High immunity to external intereference
        • Current overload capability
        • Optimised response time

        Applications

        • AC variable speed and servo motor drives
        • Static converters for DC motor drives
        • Battery supplied applications
        • Uninterruptible Power Supplies (UPS)
        • Switched Mode Power Supplies (SMPS)
        • Power supplies for welding applications

        Standards

        • EN 50178: 1997
        • UL 508: 2013
        • IEC 61010-1(safety)

        Application Domain

        • Industrial
        Specification
        LEM Part Number LXS 25-NPS
        Technology Closed Loop Multirange Hall Effect
        Aperture ø3.2mm
        ROHS Yes
        Supply Voltage 5 VDC
        Load Current (RMS + DC) 25 Amp
        Measurement Range +/-85 Amp
        Output 2.5 Vref
        Isolation 4.3 kV
        Bandwidth DC-300 kHz
        Mounting Style PCB Mount
        Operating Temperature Range -40°C / 105°C
        Accuracy 2.25%
        Termination Style PCB
        Unit Weight 10g
        Factory Packaging 25
