LEM Hall Effect Current Sensors PCB Mount
-
LXSR 25-NPS, C/L Mulirange Hall Effect Sensor, 25 Amp, 2.5V ref in ref Out, PCB Mount, ø3.2mm, X = 1.25%, replaces LTSR 15-NP
LEM LXSR Series Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 200kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Vref IN Vref OUT Multirange through PCB rounting Advantages LTSR footprint compatible Excellent accuracy Zero insertion losses Very good linearity Very good dv/dt immunity High immunity to external intereference Current overload capability Optimised response time Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 IEC 62477-1: 2012 UL 508:2013 Application Domain Industrial Specification LEM Part Number LXSR 25-NPS Technology Closed Loop Multirange Hall Effect Aperture ø3.2mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 25 Amp Measurement Range +/-85 Amp Output 2.5 Vref Isolation 3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LXSR 25-NPS LTSR 25-NP
$24.90
$29.38 inclGST -
LXSR 15-NPS, C/L Hall Effect Sensor, 15 Amp, 2.5V ref in ref Out, PCB Mount, ø3.2mm, X = 1.25%, replaces LTSR 15-NP
LEM LXSR 15-NPS Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Vref IN Vref OUT Multirange through PCB rounting Advantages LTSR footprint compatible Excellent accuracy Zero insertion losses Very good linearity Very good dv/dt immunity High immunity to external intereference Current overload capability Optimised response time Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 IEC 62477-1: 2012 UL 508:2013 Application Domain Industrial Specification LEM Part Number LXSR 15-NPS Technology Closed Loop Hall Effect Aperture ø3.2mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 25 Amp Measurement Range +/-51 Amp Output 2.5 Vref Isolation 3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LTSR 15-NP
$24.90
$29.38 inclGST -

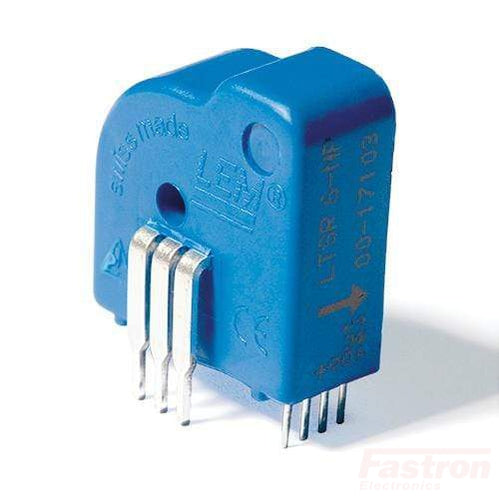

LTSR 6-NP, C/L Hall Effect Sensor, 6 Amp, 5VDC Supply, PCB Mount, ø3.2mm, X = 0.2%
LEM LTSR 6-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 200kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Vref IN Vref OUT Multirange through PCB rounting Advantages LXSR footprint compatible Excellent accuracy Zero insertion losses Very good linearity Very good dv/dt immunity High immunity to external intereference Current overload capability Optimised response time Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Standards EN 50178: 1997 UL 508: 2013 IEC 61010-1(safety) Application Domain Industrial Specification LEM Part Number LTSR 6-NP Technology Closed Loop Multirange Hall Effect Aperture ø3.2mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 6 Amp Measurement Range +/-19.2 Amp Output 2.5 Vref Isolation 3 kV Bandwidth DC-200 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 0.2% Termination Style PCB Unit Weight 9g Factory Packaging 3 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LXSR 6-NPS
$31.40
$37.05 inclGST -
LTSR 15-NP, C/L Multirange Hall Effect Sensor, 15 Amp, 2.5V ref in ref Out, PCB Mount, ø3.2mm, X = 0.2%
LEM LTSR 15-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 200kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Vref IN Vref OUT Multirange through PCB rounting Advantages LXSR footprint compatible Excellent accuracy Zero insertion losses Very good linearity Very good dv/dt immunity High immunity to external intereference Current overload capability Optimised response time Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Standards EN 50178: 1997 UL 508: 2013 IEC 61010-1(safety) Application Domain Industrial Specification LEM Part Number LTSR 15-NP Technology Closed Loop Multirange Hall Effect Aperture ø3.2mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 15 Amp Measurement Range +/-48 Amp Output 2.5 Vref Isolation 3 kV Bandwidth DC-200 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 0.2% Termination Style PCB Unit Weight 9g Factory Packaging 3 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LXSR 15-NPS
$31.40
$37.05 inclGST -
LTSP 25-NP, C/L Hall Effect Sensor, 15 Amp, 2.5V ref in ref Out, PCB Mount, ø3.2mm, X = 0.2%
LEM LTSP 25-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 200kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Vref IN Vref OUT Multirange through PCB rounting Advantages LXSR footprint compatible Excellent accuracy Zero insertion losses Very good linearity Very good dv/dt immunity High immunity to external intereference Current overload capability Optimised response time Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Standards EN 50178: 1997 UL 508: 2013 IEC 61010-1(safety) Application Domain Industrial Specification LEM Part Number LTSP 25-NP Technology Closed Loop Multirange Hall Effect Aperture ø3.2mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 25 Amp Measurement Range +/-80 Amp Output 2.5 Vref Isolation 3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 0.2% Termination Style PCB Unit Weight 9g Factory Packaging 3 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LXSR 25-NPS LTSR 25-NP
$37.70
$44.49 inclGST -
LPSR 6-NP, C/L Multi Range Hall Effect Current Sensor, 6 Amp, 2.5V ref in ref Out, PCB Mount
LEM LKSR 6-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Overcurrent detection 4 x Ipn Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013 IEC 62477-1: 2012 Application Domain Industrial Specification LEM Part Number LPSR 6-NP Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 6 Amp Measurement Range +/- 20Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 0.75% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 25-NP
$26.20
$30.92 inclGST -
LPSR 50-NP, C/L Multi Range Hall Effect Current Sensor, 50 Amp, 2.5V ref in ref Out, PCB Mount
LEM LKSR 50-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Overcurrent detection 4 x Ipn Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013 IEC 62477-1: 2012 Application Domain Industrial Specification LEM Part Number LPSR 50-NP Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/- 150Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 0.75% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 25-NP
$26.20
$30.92 inclGST -
LPSR 25-NP, C/L Multi Range Hall Effect Current Sensor, 25 Amp, 2.5V ref in ref Out, PCB Mount
LEM LKSR 25-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Overcurrent detection 4 x Ipn Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013 IEC 62477-1: 2012 Application Domain Industrial Specification LEM Part Number LPSR 25-NP Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 25 Amp Measurement Range +/- 85Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 0.75% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 25-NP
$26.20
$30.92 inclGST -
LPSR 15-NP, C/L Multi Range Hall Effect Current Sensor, 15 Amp, 2.5V ref in ref Out, PCB Mount
LEM LKSR 15-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Overcurrent detection 4 x Ipn Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013 IEC 62477-1: 2012 Application Domain Industrial Specification LEM Part Number LPSR 15-NP Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 15 Amp Measurement Range +/- 51Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 0.75% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 25-NP
$26.20
$30.92 inclGST -
LKSR 6-NP, C/L Hall Effect Current Sensor, 6 Amp, 2.5V ref in ref Out, PCB Mount, Replaces CKSR
LEM LKSR 6-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013 IEC 62477-1: 2012 Application Domain Industrial Specification LEM Part Number LKSR 6-NP Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 6 Amp Measurement Range +/- 20Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 0.75% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 25-NP
$37.00
$43.66 inclGST -
LKSR 50-NP, C/L Hall Effect Current Sensor, 50 Amp, 2.5V ref in ref Out, PCB Mount, Replaces CKSR
LEM LKSR 50-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013 IEC 62477-1: 2012 Application Domain Industrial Specification LEM Part Number LKSR 25-NP Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 25 Amp Measurement Range +/- 51Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 0.75% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 25-NP
$37.00
$43.66 inclGST -
LKSR 25-NP, C/L Hall Effect Current Sensor, 25 Amp, 2.5V ref in ref Out, PCB Mount, Replaces CKSR
LEM LKSR 25-NP Closed Loop AC/DC Hall Effect Sensor Features Closed loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 300kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for PCB mounting Advantages CKSR footprint compatible Very good dv/dt immunity Low foot-print Low offset drift Reference pin with two modes REF IN and REF OUT Extended measuring range for unipolar measurement. High creepage / clearance distances Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Solar Inverter Standards EN 50178: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013 IEC 62477-1: 2012 Application Domain Industrial Specification LEM Part Number LKSR 25-NP Technology Closed Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 25 Amp Measurement Range +/- 85Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-300 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 0.75% Termination Style PCB Unit Weight 10g Factory Packaging 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Alternatives LKSR 25-NP
$37.00
$43.66 inclGST
