LEM HOB 100-P Series Open Loop AC/DC Hall Effect Sensor, 100 Amp, PCB Mount for High Frequency Features Open loop current transducer Voltage output 4.4kV Isolation Wide Frequency bandwidth 1Mhz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HOB 100-P Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 100 Amp Measurement Range +/-250 Amp Output 2.5 Vref Isolation 4.4 kV Bandwidth DC-1MHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 40g Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

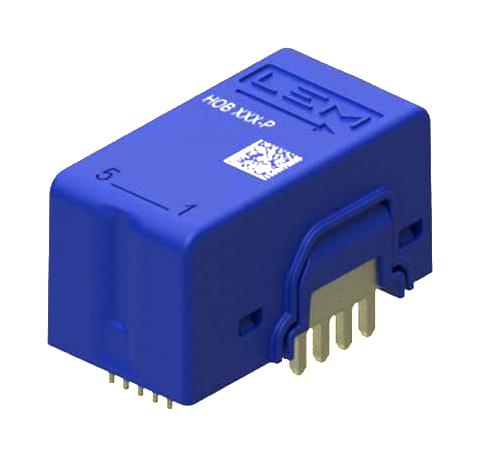

LEM HOB 75-P Open Loop AC/DC Hall Effect Sensor, 50 Amp, PCB Mount for High Frequency Features Open loop current transducer Voltage output 4.4kV Isolation Wide Frequency bandwidth 1Mhz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HOB 75-P Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 75 Amp Measurement Range +/-187.5 Amp Output 2.5 Vref Isolation 4.4 kV Bandwidth DC-1MHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 30g Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HOB 50-P Series Open Loop AC/DC Hall Effect Sensor, 50 Amp, PCB Mount for High Frequency Features Open loop current transducer Voltage output 4.4kV Isolation Wide Frequency bandwidth 1Mhz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HOB 50-P Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/-125 Amp Output 2.5 Vref Isolation 4.4 kV Bandwidth DC-1MHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 40g Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

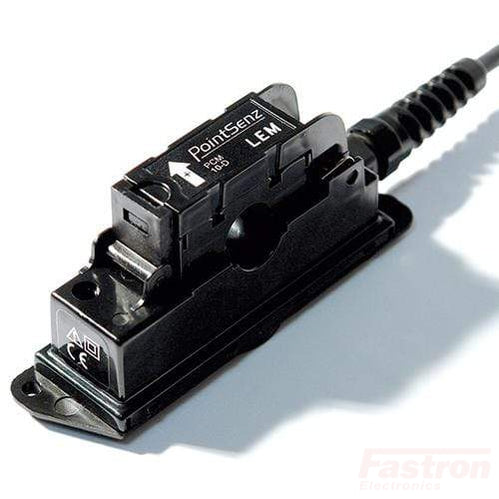

LEM PCM 20-P/SP2, Pointsenz Railway Bipolar DC Current Sensor, 20 Amp, 4-20mA Output Features Closed loop sensor using Hall Effect Panel mounting Split core design for easy installation Insulated plastic case to UL 94-V0 Water resistant design rated to IP 67 Reverse polarity protected Advantages Very good linearity Excellent accuracy Current overload capability No insertion losses. Non - contact measurement (does not need a safety case) Applications Railway equipment Points condition monitoring Signal light indication Battery supplied applications Uninterruptable Power Supplies (UPS). Specification LEM Part Number PCM 20-P/SP2 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage 24V Aperture ø15.6mm Load Current (RMS + DC) 20 Amp Measuring Range 0...20 Amp Overload Capacity (Ampere Turns) 30000 Amp Output 4-20mA Standards EN 50121-59EMC),EN 50155(temperature and humidity),EN61010-1/2 (safety) Bandwidth DC-1000Hz Mounting Style Panel Mount Operating Temperature Range -25°C / 70°C (55°C Continuous) Accuracy 0.5% Termination Style TBC Unit Weight 120g Factory Pack Qty 4   Datasheet Product Datasheet Application Notes FAQ

Read more less

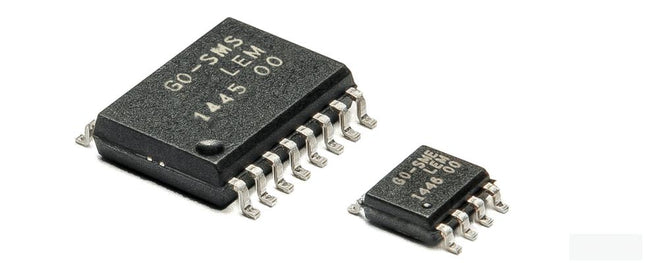

GO 12-SMS/SP4, O/L Hall Effect Current Sensor with evaluation PCB, 12 Amp Features Hall effect measuring principle Galvanic separation between primary and secondary circuit Insulated test voltage 3000 V RMS Low power consumption Extremely low profile Single power supply +5 V Double overcurrent detection Fixed offset & sensitivity Response time 2 µs. Advantages Small size and space saving High immunity to external interference High insulation capability Industrial. Low electrical resistance (0.75 mΩ) No magnetic hysteresis Robust against external fields and cross-talk. Applications Appliances Small drives HVAC Solar E-Bikes Standards   IEC 62109-1: 2010 IEC 60950-1: 2005 IEC 61800-5-1: 2007 UL 1577: 2014.   Application Domains Industrial Specification LEM Part Number GO 12-SMS/SP4 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 12 Amp Overload Capability +/-200 Amp Output 2.5 Vref Isolation 2.5 kV Bandwidth DC-300 kHz Mounting Style Surface Mount - SOIC 8 Pin Operating Temperature Range -40°C / 125°C Accuracy 2% Termination Style N/A Unit Weight 10g Factory Pack Quantity 150   Datasheet Product Datasheet

Read more less

GO 15-SME/SP4, O/L Hall Effect Current Sensor with evaluation PCB, 15 Amp Features Hall effect measuring principle Galvanic separation between primary and secondary circuit Insulated test voltage 3000 V RMS Low power consumption Extremely low profile Single power supply +5 V Double overcurrent detection Fixed offset & sensitivity Response time 2 µs. Advantages Small size and space saving High immunity to external interference High insulation capability Industrial. Low electrical resistance (0.75 mΩ) No magnetic hysteresis Robust against external fields and cross-talk. Applications Appliances Small drives HVAC Solar E-Bikes Standards   IEC 62109-1: 2010 IEC 60950-1: 2005 IEC 61800-5-1: 2007 UL 1577: 2014.   Application Domains Industrial Specification LEM Part Number GO 15-SME/SP4 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 15 Amp Overload Capability +/-200 Amp Output 2.5 Vref Isolation 2.5 kV Bandwidth DC-300 kHz Mounting Style Surface Mount - SOIC 8 Pin Operating Temperature Range -40°C / 125°C Accuracy 1.2% Termination Style N/A Unit Weight 10g Factory Pack Quantity 150   Datasheet Product Datasheet

Read more less

GO 8-SME/SP4, O/L Hall Effect Current Sensor with evaluation PCB, 8 Amp Features Hall effect measuring principle Galvanic separation between primary and secondary circuit Insulated test voltage 3000 V RMS Low power consumption Extremely low profile Single power supply +5 V Double overcurrent detection Fixed offset & sensitivity Response time 2 µs. Advantages Small size and space saving High immunity to external interference High insulation capability Industrial. Low electrical resistance (0.75 mΩ) No magnetic hysteresis Robust against external fields and cross-talk. Applications Appliances Small drives HVAC Solar E-Bikes Standards   IEC 62109-1: 2010 IEC 60950-1: 2005 IEC 61800-5-1: 2007 UL 1577: 2014.   Application Domains Industrial Specification LEM Part Number GO 8-SME/SP4 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 4 Amp Overload Capability +/-200 Amp Output 2.5 Vref Isolation 2.5 kV Bandwidth DC-300 kHz Mounting Style Surface Mount - SOIC 8 Pin Operating Temperature Range -40°C / 125°C Accuracy 2% Termination Style N/A Unit Weight 10g Factory Pack Quantity 150   Datasheet Product Datasheet

Read more less

GO 30-SME/SP3, O/L Hall Effect Current Sensor with evaluation PCB, 30 Amp Features Hall effect measuring principle Galvanic separation between primary and secondary circuit Insulated test voltage 3000 V RMS Low power consumption Extremely low profile Single power supply +5 V Double overcurrent detection Fixed offset & sensitivity Response time 2 µs. Advantages Small size and space saving High immunity to external interference High insulation capability Industrial. Low electrical resistance (0.75 mΩ) No magnetic hysteresis Robust against external fields and cross-talk. Applications Appliances Small drives HVAC Solar E-Bikes Standards   IEC 62109-1: 2010 IEC 60950-1: 2005 IEC 61800-5-1: 2007 UL 1577: 2014.   Application Domains Industrial Specification LEM Part Number GO 30-SME/SP3 Technology Open Loop Hall Effect ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 30 Amp Overload Capability +/-200 Amp Output 2.5 Vref Isolation 2.5 kV Bandwidth DC-300 kHz Mounting Style Surface Mount - SOIC 8 Pin Operating Temperature Range -40°C / 125°C Accuracy 2% Termination Style N/A Unit Weight 10g Factory Pack Quantity 150   Datasheet Product Datasheet

Read more less

GO 20-SME/SP3, O/L Hall Effect Current Sensor with evaluation PCB, 20 Amp Features Hall effect measuring principle Galvanic separation between primary and secondary circuit Insulated test voltage 3000 V RMS Low power consumption Extremely low profile Single power supply +5 V Double overcurrent detection Fixed offset & sensitivity Response time 2 µs. Advantages Small size and space saving High immunity to external interference High insulation capability Industrial. Low electrical resistance (0.75 mΩ) No magnetic hysteresis Robust against external fields and cross-talk. Applications Appliances Small drives HVAC Solar E-Bikes Standards   IEC 62109-1: 2010 IEC 60950-1: 2005 IEC 61800-5-1: 2007 UL 1577: 2014.   Application Domains Industrial Specification LEM Part Number GO 20-SME/SP3 Technology Open Loop Hall Effect ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 20 Amp Overload Capability +/-200 Amp Output 2.5 Vref Isolation 2.5 kV Bandwidth DC-300 kHz Mounting Style Surface Mount - SOIC 8 Pin Operating Temperature Range -40°C / 125°C Accuracy 2% Termination Style N/A Unit Weight 10g Factory Pack Quantity 150   Datasheet Product Datasheet

Read more less

GO 8-SMS/SP3, O/L Hall Effect Current Sensor with evaluation PCB, 8 Amp Features Hall effect measuring principle Galvanic separation between primary and secondary circuit Insulated test voltage 3000 V RMS Low power consumption Extremely low profile Single power supply +5 V Double overcurrent detection Fixed offset & sensitivity Response time 2 µs. Advantages Small size and space saving High immunity to external interference High insulation capability Industrial. Low electrical resistance (0.75 mΩ) No magnetic hysteresis Robust against external fields and cross-talk. Applications Appliances Small drives HVAC Solar E-Bikes Standards   IEC 62109-1: 2010 IEC 60950-1: 2005 IEC 61800-5-1: 2007 UL 1577: 2014.   Application Domains Industrial Specification LEM Part Number GO 8-SMS/SP3 Technology Closed Loop Hall Effect ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 8 Amp Overload Capability +/-200 Amp Output 2.5 Vref Isolation 2.5 kV Bandwidth DC-300 kHz Mounting Style Surface Mount - SOIC 8 Pin Operating Temperature Range -40°C / 125°C Accuracy 1.2% Termination Style N/A Unit Weight 10g Factory Pack Quantity 150   Datasheet Product Datasheet
