LEM LA 25-NP/SP8, C/L Hall Effect Current Sensor, Multi Range 2 Amp, 24mA Output, PCB Mount, No Aperture Features Bandwidth DC to 150kHz Closed loop transducer using Hall effect Compact and versatile PCB Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LA 25-NP/SP8 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Load Current (RMS + DC) 2000 mA Measurement Range +/-3 Amp Output 24 mA Isolation 2.5 kV Bandwidth DC-150 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 0.5% Termination Style Through Hole PCB Unit Weight 22g Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

HAH1DRW 700-S/SP5, Automotive Open Loop Current Sensor, +/-700Amp Measurement, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles   Specification LEM Part Number HAH1DRW 700-S/SP5 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current  +/-700 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

HAH1BV S/08, Automotive Open Loop Current Sensor, +/-200Amp Measurement, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles   Specification LEM Part Number HAH1BV S/08 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current  +/-200 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

HAH1BV S/08, Automotive Open Loop Current Sensor, +/-200Amp Measurement, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles   Specification LEM Part Number HAH1BV S/08 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current  +/-200 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

HAH1BV S/07, Automotive Open Loop Current Sensor, +/-200Amp Measurement, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles   Specification LEM Part Number HAH1BV S/07 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current  +/-200 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

HAH1BV S/06, Automotive Open Loop Current Sensor, +/-400Amp Measurement, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles   Specification LEM Part Number HAH1BV S/06 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current  +/-400 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

HAH1BV S/04, Automotive Open Loop Current Sensor, +/-700Amp Measurement, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles   Specification LEM Part Number HAH1BV S/04 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current  +/-700 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

HAH1BV S/03, Automotive Open Loop Current Sensor, +/-600Amp Measurement, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles   Specification LEM Part Number HAH1BV S/03 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current  +/-600 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

HAH1BV S/02, Automotive Open Loop Current Sensor, +/-500Amp Measurement, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles   Specification LEM Part Number HAH1BV S/02 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current  +/-500 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

HAH1BV S/01, Automotive Open Loop Current Sensor, +/-300Amp Measurement, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles   Specification LEM Part Number HAH1BV S/01 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current  +/-300 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

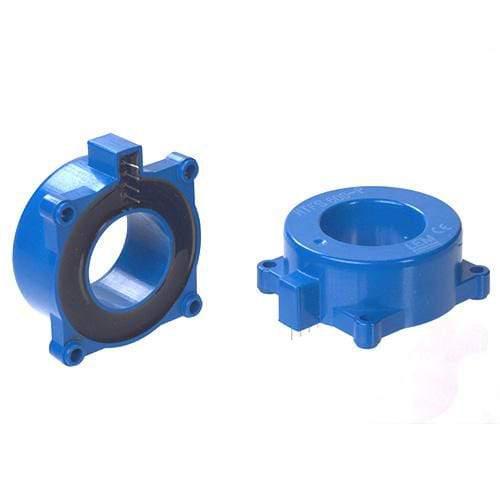

LEM HTFS 400-P/SP7, Open Loop Hall Effect Current Sensor, 400 Amp, 3.3VDC Supply, PCB Mount, X = 1% Features Bandwidth DC to 240kHz Open loop transducer using Hall effect Compact and versatile Uinique PCB Mounting Insulated plastic case recognized according to UL 94-V0 Advantages Fixed offset Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications. Specification LEM Part Number HTFS 400-P/SP7 Technology Open Loop Hall Effect Aperture ø 22mm ROHS Yes Supply Voltage 3.3 VDC Bipolar, Isolated Load Current (RMS + DC) 400 Amp Measurement Range +/-600 Amp Output 1.65Vref Isolation 2.5 kV Bandwidth DC-240 kHz Mounting Style PCB Mount (fixation with 4 pins 1mm) Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 60g Factory Pack Quantity 10   Datasheet Product Datasheet

Read more less

HC5FW 800-S, Automotive Open Loop Current Sensor for Low Voltage, +/-800 Amp, 5VDC Supply Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Range, +/-100 to +/-900 Models Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles   Specification LEM Part Number HC5FW 800-S Technology Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current (Ipn) (RMS) +/-800 Amp Output 0.5(-Ipn) to 4.5V(+Ipn) Bandwidth DC - 40kHz Isolation 2.5kV (AC, 50Hz, 1 min) Special Feature SP1 = Cover without Sleeve (Reduced Insulation) Mounting Style Busbar Mount Termination Style 3 Pin Unit Weight 25g Factory Pack Qty 6   Datasheet Product Datasheet Automotive 2022 Web Brochure
